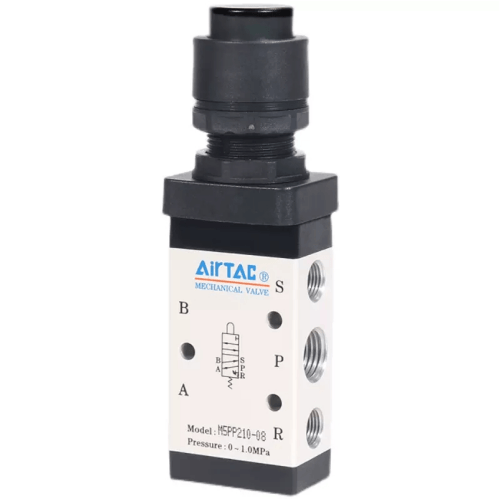

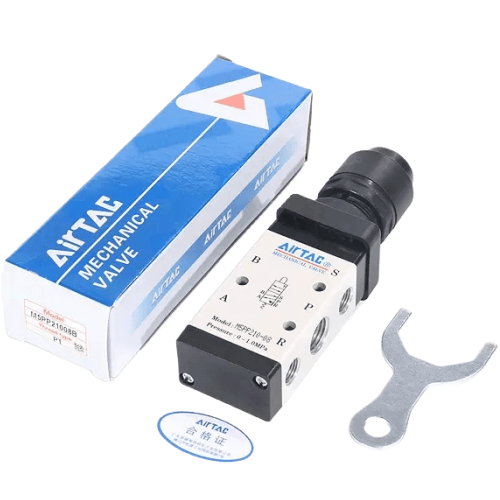

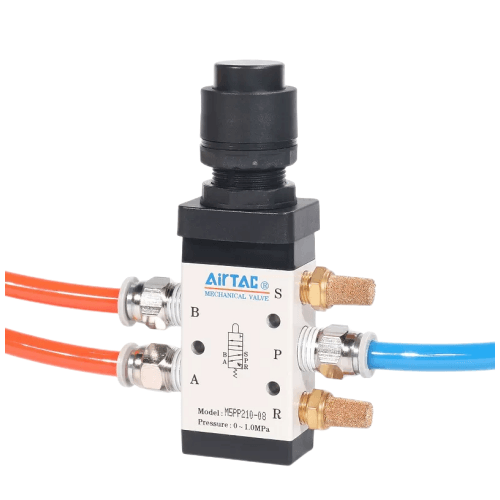

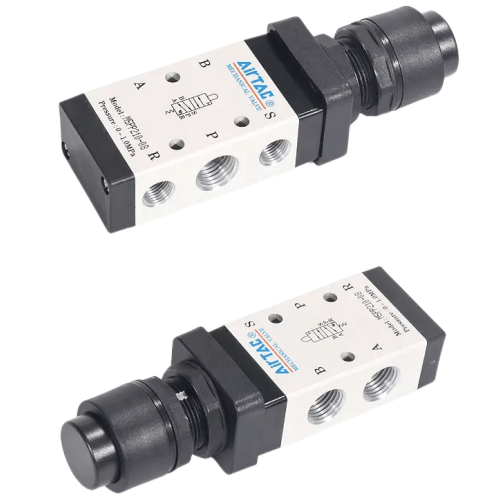

Airtac M5PP Poppet Push Button Mechanical Valve M5PP21006B
2. M5B/M5R/M5L series utilize external mechanism-provided actuation force for reliable position sensing and limit switch applications;
3. M5C/M5D/M5Y/M5PF/M5PM/M5PP/M5PL/M5HS series feature manual operation with multiple structural configurations for diverse operational requirements;
4. Spool-type design maintains consistent actuation force independent of working pressure (back-pressure immune), coupled with inner seal technology ensuring reliable sealing and responsive switching;
5. Lubrication-free operation eliminates maintenance requirements;
6. Multi-position mounting capability enhances installation flexibility;
7. Metal control heads in M5C/M5D/M5Y/M5R/M5L series ensure enhanced durability and operational reliability.
Category: Mechanical Valves , Brand: AIRTC , Series: M5PP
AirTAC M5PP21006B Mushroom Head Push Button Mechanical Valve Specifications
- Model: M5PP21006B
- Type: 3/2-way normally closed mechanical valve (manual override)
- Port size: PT1/8 (M5×0.8 thread optional)
- Operating pressure: 0.1–0.7 MPa
- Max flow rate: 450 L/min (ANR)
- Body material: Stainless steel SS304
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃
- Mounting type: Direct panel mounting
- Button type: Lockable mushroom head (38mm diameter)
- Actuation force: 45N ±5N
- Protection rating: IP67 (dust/water resistant)
- Weight: 185g ±5g
- Dimensions: 50mm(L) × 25mm(W) × 40mm(H)
Emergency-stop mechanical valve with positive-locking mechanism and bright yellow safety button. Features stainless steel construction for harsh environments and dual-color position indicator (red/green). Requires manual reset after activation. Compatible with ISO 13850 safety standards.
- Emergency stop circuits in CNC machinery
- Safety interlocks for press machines
- Manual override in automated production lines
- Robotic cell safety systems
- Packaging equipment emergency venting
Installation note:
Mount within 600mm horizontal reach of operators. Perform monthly
functional tests and lubricate pivot points with silicone grease
(ASG-15 recommended). Ensure ≥50mm clearance behind button for full depression.
| Property | Property Value |
|---|---|
| sku | M5PP21006B |
| Position | 5 Ports 2 Position |
| Port Size | PT1/8 |
