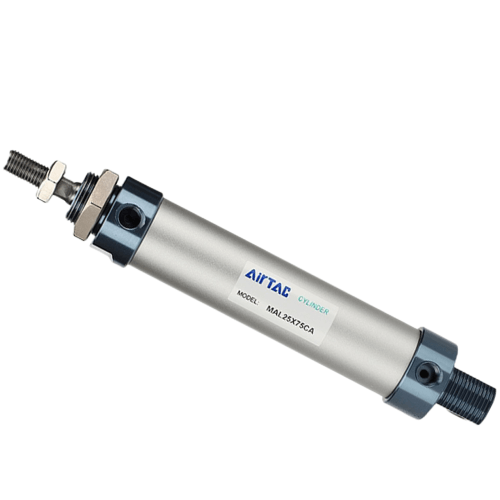

Airtac MAL20 Aluminum Alloy Mini Cylinder MAL20X600-S-CA
2. Thread-connected front/rear end caps ensure structural integrity and leak-proof performance;
3. Special-shaped bidirectional seal structure on piston enables compact dimensions while maintaining integrated oil reservoir functionality;
4. Self-lubricating bushing guidance system in front cap delivers superior lubrication and directional stability;
5. Multiple rear cover configurations (front thread/base mount/compact flange) enhance installation flexibility;
6. Comprehensive specifications and mounting accessories portfolio provides optimal customization options. Category: Aluminum Miniature Cylinders | Brand: AIRTAC | Series: MAL20
AirTAC MAL20X600-S-CA Aluminum Miniature Cylinder Specifications
- Model: MAL20X600-S-CA
- Type: Double-acting mini cylinder
- Bore size: 20mm
- Stroke: 600mm (customizable 50-1000mm)
- Operating pressure: 0.05–1.0 MPa
- Port size: M5x0.8 (standard) / NPT1/8 optional
- Cushioning: Adjustable rubber buffer
- Mounting style: Basic type (no flange)
- Material: Aluminum alloy body / Stainless steel piston rod
- Temperature range: -20℃ to 80℃
- Protection rating: IP54 (standard)
- Weight: 1.8kg ±2% (without accessories)
- Dimensions:
- Length: 728mm (full extension)
- Body width: 30mm
- Height: 32mm (excluding mounting points)
Ultra-slim pneumatic cylinder optimized for long-stroke applications requiring precision linear motion. Features anodized aluminum construction with chrome-plated piston rod for corrosion resistance. Integrated magnetic slot enables position sensing compatibility. Requires 0.1-1.0μm filtered air and lubrication (ISO VG32 recommended).
- PCB handling robots in electronics manufacturing
- Linear actuator systems in medical bed adjustments
- Packaging machine material pushers
- Automated curtain rail systems
- Solar panel cleaning mechanisms
Installation tip:
Support rod at 600mm+ strokes using guide mechanisms to prevent bending.
Maximum side load: 15N. Lubricate every 500km travel distance.
| Property | Property Value |
|---|---|
| sku | MAL20X600-S-CA |
| Rear Cover Type | Swivel Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <20mm> |
| Stroke | 600mm |
