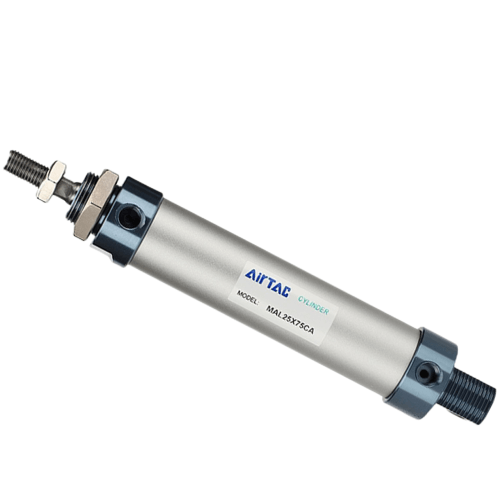

Airtac MAL20 Aluminum Alloy Mini Cylinder MAL20X75-S-CM
$27.62
Regular price
$35.12
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MAL20X75-S-CM
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AIRTRAC MAL20 Aluminum Miniature Cylinder Features:
1. Engineered with precision using high-grade aluminum alloy round tube barrel construction;
2. Thread-connected front/rear end caps ensure structural integrity and leak-proof performance;
3. Special-shaped bidirectional seal structure on piston enables compact dimensions while maintaining integrated oil reservoir functionality;
4. Self-lubricating bushing guidance system in front cap delivers superior lubrication and directional stability;
5. Multiple rear cover configurations (front thread/base mount/compact flange) enhance installation flexibility;
6. Comprehensive specifications and mounting accessories portfolio provides optimal customization options. Category: Aluminum Miniature Cylinders | Brand: AIRTAC | Series: MAL20
Installation tip:
Maintain 0.5-1mm clearance between rod end and load during alignment.
Use locknuts (not included) for axial load applications. Lubricate with ISO VG32 hydraulic oil
for initial operation.
2. Thread-connected front/rear end caps ensure structural integrity and leak-proof performance;
3. Special-shaped bidirectional seal structure on piston enables compact dimensions while maintaining integrated oil reservoir functionality;
4. Self-lubricating bushing guidance system in front cap delivers superior lubrication and directional stability;
5. Multiple rear cover configurations (front thread/base mount/compact flange) enhance installation flexibility;
6. Comprehensive specifications and mounting accessories portfolio provides optimal customization options. Category: Aluminum Miniature Cylinders | Brand: AIRTAC | Series: MAL20
AirTAC MAL20X75-S-CM Aluminum Miniature Cylinder Specifications
- Model: MAL20X75-S-CM
- Type: Single-acting spring return (push type)
- Bore size: 20mm
- Stroke: 75mm
- Operating pressure: 0.15–0.8 MPa
- Port size: PT1/8 (M5 optional)
- Cushion type: Rubber cushion (adjustable at both ends)
- Mounting: Standard foot mounting holes (ISO 6432 compliant)
- Material: Aluminum alloy body with NBR seals
- Temperature range: -20℃ to 80℃
- Weight: 0.45kg
- Dimensions: 135mm(L) × 20mm(W) × 25mm(H) (extended length)
- Rod thread: M6×1.0 external thread
- Max theoretical thrust: 62.8N @0.6MPa
Ultra-compact aluminum cylinder featuring corrosion-resistant anodized finish and maintenance-free operation. Precision-engineered with dual adjustable cushions for smooth end-of-stroke deceleration. Optional magnetic piston version available (add "-M" suffix) for position sensing.
Typical Applications:
- PCB handling in electronics assembly lines
- Medical device actuation mechanisms
- Packaging machine ejection systems
- Cleanroom automation equipment
- Food processing machinery (NBR compatible with food-grade lubricants)
Installation tip:
Maintain 0.5-1mm clearance between rod end and load during alignment.
Use locknuts (not included) for axial load applications. Lubricate with ISO VG32 hydraulic oil
for initial operation.
| Property | Property Value |
|---|---|
| sku | MAL20X75-S-CM |
| Rear Cover Type | Round Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <20mm> |
| Stroke | 75mm |
