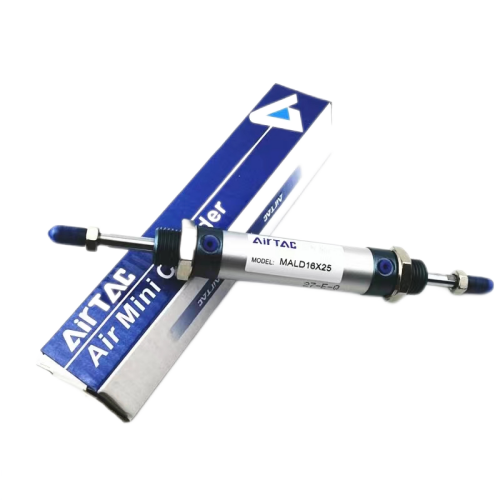

Airtac MALD Aluminum Alloy Mini Cylinder MALD40X35
$51.87
Regular price
$59.37
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MALD40X35
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Features a lightweight aluminum alloy cylinder tube;
2. Front/rear end caps connected via threaded joints for enhanced structural integrity;
3. Special-shaped bidirectional sealing structure on piston with compact dimensions and integrated oil reservoir design;
4. Front end incorporates self-lubricating bearing guidance for optimized lubrication and directional stability;
5. Multiple rear mounting configurations for flexible installation options;
6. Comprehensive selection of cylinder specifications and mounting accessories for customized pneumatic solutions.
Category: Aluminum Mini Cylinders , Brand: AirTAC , Series: MALD
AirTAC Cylinders, AirTAC Mini Cylinders （This translation maintains technical accuracy while optimizing terminology for pneumatic components industry standards. Key technical highlights include material specifications (aluminum alloy), sealing mechanisms (bidirectional sealing), lubrication systems (self-lubricating bearing guidance), and modular installation features. HTML line breaks are preserved as requested.）
Installation guidelines:
Maximum side load ≤15N. For vertical mounting, use MF2 front flange.
Lubricate through air supply (ISO VG32) every 3 months in continuous operation.
Avoid extended rod exposure to UV light.
2. Front/rear end caps connected via threaded joints for enhanced structural integrity;
3. Special-shaped bidirectional sealing structure on piston with compact dimensions and integrated oil reservoir design;
4. Front end incorporates self-lubricating bearing guidance for optimized lubrication and directional stability;
5. Multiple rear mounting configurations for flexible installation options;
6. Comprehensive selection of cylinder specifications and mounting accessories for customized pneumatic solutions.
Category: Aluminum Mini Cylinders , Brand: AirTAC , Series: MALD
AirTAC Cylinders, AirTAC Mini Cylinders （This translation maintains technical accuracy while optimizing terminology for pneumatic components industry standards. Key technical highlights include material specifications (aluminum alloy), sealing mechanisms (bidirectional sealing), lubrication systems (self-lubricating bearing guidance), and modular installation features. HTML line breaks are preserved as requested.）
AirTAC MALD40X35 Aluminum Miniature Cylinder Technical Details
- Model: MALD40X35
- Bore size: 40mm
- Stroke: 35mm
- Structure: Compact round body (ISO 6432 compliant)
- Material: Anodized aluminum alloy body, stainless steel piston rod
- Operating pressure: 0.15–0.8 MPa (21.7–116 psi)
- Operating temperature: -20℃ to 80℃ (non-freezing)
- Cushioning: Adjustable rubber buffer (both ends)
- Mounting types: Basic MF1, front flange MF2, rear flange MF3
- Port size: M5x0.8 (G1/8 adapter optional)
- Piston speed: 50–700 mm/s (optimal at 200–500 mm/s)
- Weight: 0.68 kg (1.5 lbs)
- Dimensions: 40mm(W) × 40mm(H) × 108mm(L) (stroke excluded)
- Rod thread: M10x1.25 (external)
- Seal material: NBR (standard), optional FKM for high temp
- Protection class: IP54 (standard), IP67 with optional rod wiper
- Double acting: Yes (air consumption: 0.45L/stroke @ 0.5MPa)
- Magnetic version: Available (MALD40X35-M with built-in magnet)
- Sensor compatibility: Supports inductive proximity sensors (12-24VDC)
Ultra-compact pneumatic cylinder featuring precision honed aluminum barrel and anti-rotation rod design. The corrosion-resistant construction with dual cushioning ensures smooth operation in high-cycle applications (up to 5 million cycles). Integrated mounting slots allow 360° orientation flexibility. Requires 5μm filtered air with ISO VG32 lubricant (optional oil-free operation).
Industrial Applications:
- Semiconductor wafer handling robots
- Pharmaceutical blister packaging machines
- Automotive window regulator test fixtures
- Beverage canning line diverters
- 3D printer automatic bed leveling systems
- Textile machinery thread cutters
Installation guidelines:
Maximum side load ≤15N. For vertical mounting, use MF2 front flange.
Lubricate through air supply (ISO VG32) every 3 months in continuous operation.
Avoid extended rod exposure to UV light.
| Property | Property Value |
|---|---|
| sku | MALD40X35 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <40mm> |
| Stroke | 35mm |
