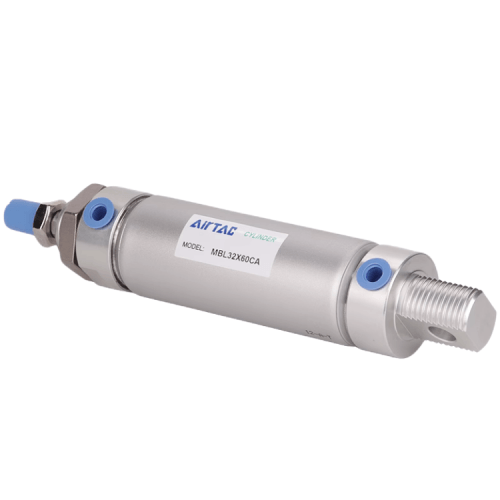

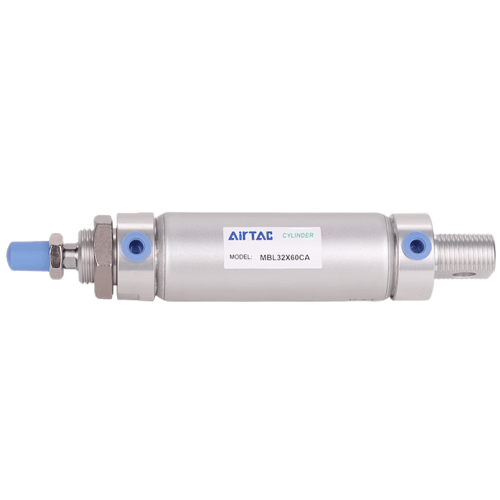

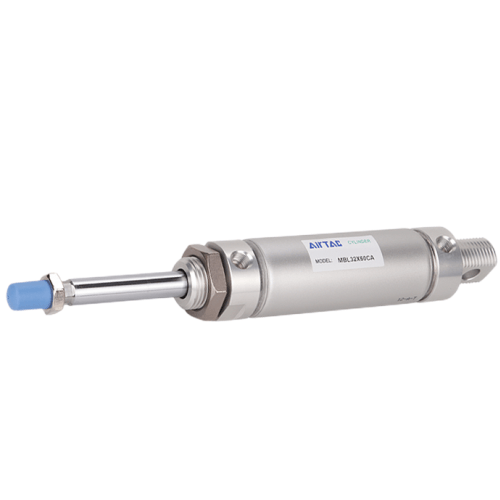

Airtac MBL Aluminum Alloy Mini Cylinder MBL20X50-CA
The AirTAC Airtac MBL Aluminum Alloy Mini Cylinder MBL20X50-CA is a genuine double-acting aluminum-barrel mini round cylinder with a Ø20mm bore and 50mm stroke, G1/8 air ports and a fixed rubber bumper. Its compact riveted body suits push, hold and clamp motion in tight machine spaces.
- BoreØ20 mm
- Stroke50 mm
- Port sizeG1/8
- Acting typeDouble acting
- Rod threadM8×1.25
- CushionRubber bumper (MBLC variant: adjustable air cushion)
About the Airtac MBL Aluminum Alloy Mini Cylinder MBL20X50-CA
The AirTAC MBL20X50-CA is a compact double-acting aluminum mini round cylinder engineered for tight machine spaces. It delivers a push force of 157 N and a pull force of 132 N at 0.5 MPa, making it well-suited for short 50 mm stroke movements in confined assemblies. The riveted rolling-packed barrel keeps the body light and small, though it is not designed to be disassembled like a traditional tie-rod body.
This specific SKU features a CA pivot (clevis) back cover that allows the cylinder to swing on a pin, accommodating arcing or angular loads. It uses a fixed rubber bumper to soften end-of-stroke impact rather than an adjustable air cushion. Because this configuration lacks the -S suffix, it cannot accept a CMSG, DMSG, or EMSG sensor switch for rod position detection.
Airtac MBL Aluminum Alloy Mini Cylinder MBL20X50-CA Technical Specifications
| Model | Airtac MBL Aluminum Alloy Mini Cylinder MBL20X50-CA |
|---|---|
| Series | MBL aluminum-barrel mini round cylinder |
| Bore size | Ø20 mm |
| Stroke | 50 mm |
| Acting type | Double acting |
| Port size | G1/8 |
| Rod thread | M8×1.25 |
| Fluid | Air (filtered by 40µm element) |
|---|---|
| Operating pressure | 0.15 – 1.0 MPa |
| Proof pressure | 1.5 MPa |
| Temperature | -20 to +70 °C |
| Speed range | 30 – 800 mm/s |
| Cushion | Rubber bumper (MBLC variant: adjustable air cushion) |
| Max stroke | Up to 500 mm |
Specifications follow the official AirTAC MBL series datasheet. Confirm against the product label before installation. Standard stroke to 500 mm (special order to 800 mm). Thread options: PT / G / NPT.
Theoretical Output Force (Ø20mm)
| Pressure | Push force | Pull force |
|---|---|---|
| 0.5 MPa | 157 N | 132 N |
| 0.7 MPa | 220 N | — |
| Max (@1.0 MPa) | 32 kgf | |
Actual usable force is lower than theoretical due to friction and back-pressure. Size with a safety margin.
Model Code: Airtac MBL Aluminum Alloy Mini Cylinder MBL20X50-CA
| MBL | Aluminum-barrel mini round cylinder, double acting. |
|---|---|
| 20 | Bore size in mm. |
| ×50 | Stroke length in mm. |
| -S | Optional built-in magnet for sensor position sensing. |
Related variants: MBLC (adjustable cushion), MBLD (double rod), MBLJ (adjustable stroke), MSBL/MTBL (single acting).
Where the Airtac MBL Aluminum Alloy Mini Cylinder MBL20X50-CA Is Used
PCB Ejection Arm
Provides the precise 50 mm stroke and 157 N push to eject populated printed circuit boards from a testing fixture without damaging delicate traces.
Pouch Forming Guide
Swings on its CA pivot bracket to guide packaging film into a vertical pouch sealing jaw, utilizing the compact 20 mm body to fit within narrow machine guarding.
Sample Tube Sorting
Actuates a low-friction routing gate for clinical sample tubes, relying on the 132 N pull force at 0.5 MPa to reliably retract the diverter arm.
Is the Airtac MBL Aluminum Alloy Mini Cylinder MBL20X50-CA the Right Cylinder?
Choose this 20 mm bore when you need 157 N of push force at 0.5 MPa in a very compact footprint. If your application requires less force, there is no smaller bore in the MBL line, so you would need to look outside the mini round family. If you need more power, stepping up to the 25 mm bore increases your push force to 245 N. For applications needing end-of-stroke deceleration for heavier moving loads, consider the MBLC variant which adds an adjustable air cushion. If you need the rod to stay put after a loss of air pressure, this cylinder will drift or drop, so an external rod lock or pilot-operated check valve is required. This SKU uses a G1/8 port, PT thread form, M8x1.25 rod-end thread, and the CA pivot back cover.
Quick checklist
- ✓ Required force at your working pressure
- ✓ Stroke and mounting space
- ✓ Port/thread type (PT/NPT/G)
- ✓ Magnet (-S) for sensors?
- ✓ Side load — consider a guided cylinder
Installation & Maintenance Notes
- check Use clean air filtered to 40µm or finer.
- check Keep within 0.15 – 1.0 MPa operating pressure.
- check Avoid side load on the piston rod.
- check Adjust end cushion screws for smooth stops.
- check Use correct mounting accessory (LB / FA / SDB) and back cover (CA pivot / U flat-end).
- check Installation by qualified personnel per AirTAC docs.
Airtac MBL Aluminum Alloy Mini Cylinder MBL20X50-CA FAQ
At 0.5 MPa, this 20 mm bore cylinder provides 157 N of push force and 132 N of pull force. At 0.7 MPa, the push force increases to 220 N, with a theoretical maximum force of 32 kgf at 1.0 MPa. It operates at a speed range of 30-800 mm/s.
No, this specific SKU lacks the -S magnet suffix, meaning it cannot accept CMSG, DMSG, or EMSG sensor switches. Additionally, the base MBL uses a fixed rubber bumper to absorb end-of-stroke impact. If you need adjustable air cushioning, you must step up to the MBLC variant.
