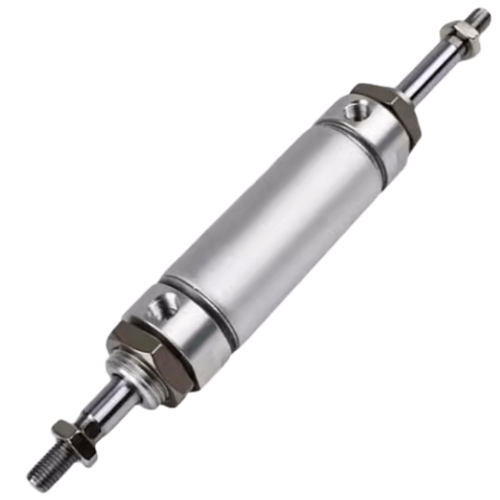

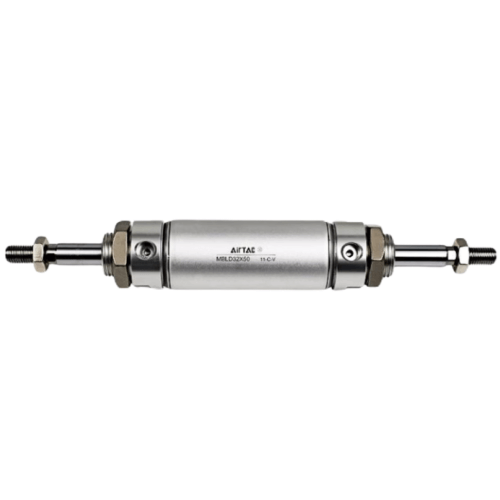

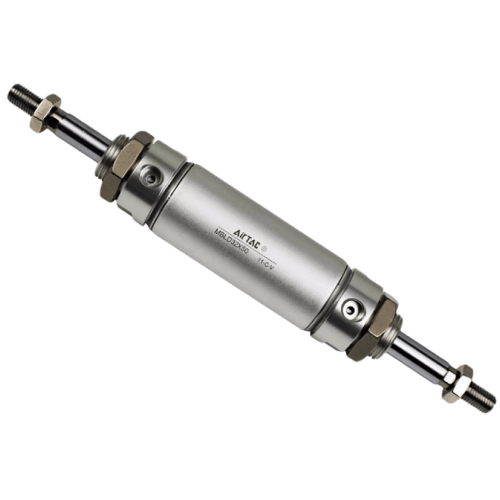

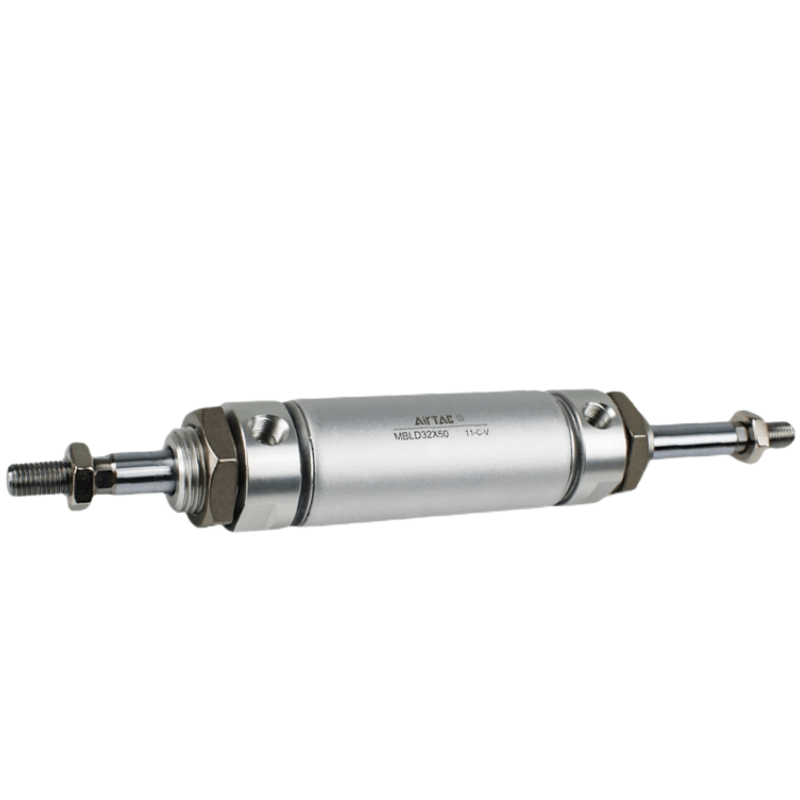

Airtac MBLD Dual Axis Type Mini Cylinder MBLD32X25S
2. Integrated riveted aluminum cladding structure connects front/rear covers to alloy barrel, ensuring robust assembly integrity;
3. Compact piston seal features specialized bidirectional sealing profile with integrated oil retention design;
4. Multiple rear cover configurations for enhanced mounting versatility;
5. Comprehensive selection of cylinder sizes and standardized mounting accessories available for system integration.
Category: Dual-axis Cylinders | Brand: Airtac | Series: MBLD
AirTAC MBLD32X25S Dual-Rod Miniature Cylinder Specifications
- Model: MBLD32X25S
- Type: Double-acting dual-rod cylinder
- Bore size: 32mm
- Stroke: 25mm (±1mm tolerance)
- Operating pressure: 0.05–0.9 MPa
- Temperature range: -20℃ to 80℃ (NBR seals)
- Cushioning: Adjustable rubber buffers (both ends)
- Mounting type: Centerline threaded mounting (M6×1.0 thread)
- Port size: M5×0.8 (G1/8 adaptor optional)
- Rod type: Hard chrome-plated steel (dual rods)
- Material: Aluminum alloy barrel, stainless steel end caps
- Weight: 0.82kg (excluding accessories)
- Dimensions: 104mm(L) × 42mm(W) × 42mm(H)
- Rod diameter: 8mm (per rod)
- Max piston speed: 500mm/s
- Protection rating: IP54 (standard), IP67 (optional wiper upgrade)
A space-saving dual-rod actuator featuring synchronized movement and enhanced lateral load capacity. Precision-machined guide rods eliminate rotation during operation, ideal for applications requiring parallel motion accuracy. Integrated mounting threads enable direct installation without separate brackets. Lubrication-free design with self-compensating wear resistance.
- PCB handling robots in electronics assembly
- Precision glass panel clamping systems
- Pharmaceutical tablet pressing mechanisms
- Optical lens positioning stages
- Automated test equipment probe actuation
Installation tip:
Maintain 0.5-1mm clearance between rods and adjacent components.
Use locknuts (not included) with 1.2-1.5Nm torque for mounting.
For vertical installations, specify "V" suffix model with magnetic piston.
| Property | Property Value |
|---|---|
| sku | MBLD32X25S |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | <25 mm> |
