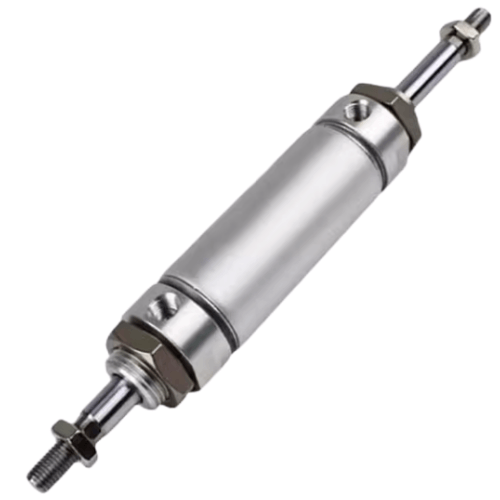

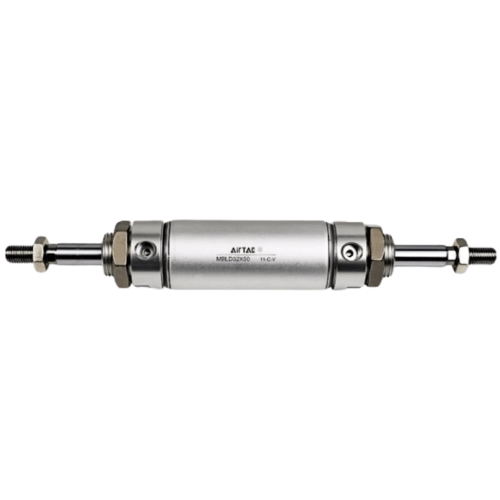

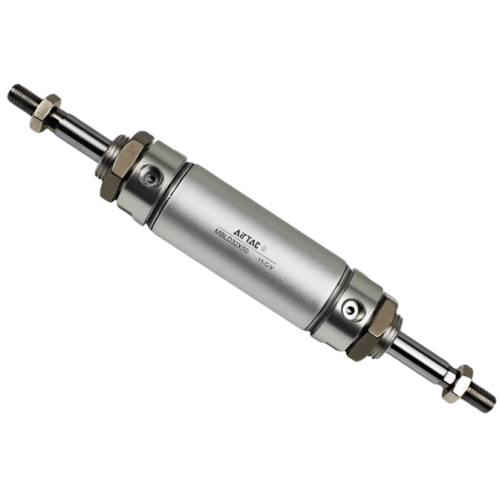

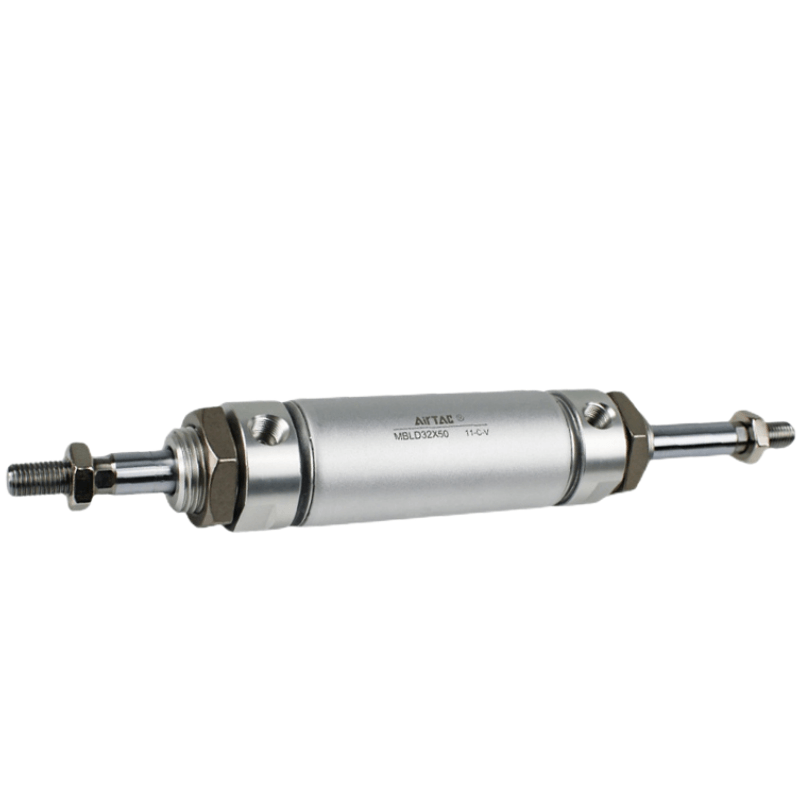

Airtac MBLD Dual Axis Type Mini Cylinder MBLD32X40
$34.18
Regular price
$41.68
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MBLD32X40
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Complies with Airtac's corporate standards with aluminum round tube barrel construction;
2. Integrated riveted aluminum cladding structure connects front/rear covers to alloy barrel, ensuring robust assembly integrity;
3. Compact piston seal features specialized bidirectional sealing profile with integrated oil retention design;
4. Multiple rear cover configurations for enhanced mounting versatility;
5. Comprehensive selection of cylinder sizes and standardized mounting accessories available for system integration.
Category: Dual-axis Cylinders | Brand: Airtac | Series: MBLD
Installation tip:
Align rods perpendicular to load movement within ±0.5° angular misalignment tolerance.
Use anti-rotation brackets (sold separately) for high-cycle applications exceeding 2Hz.
2. Integrated riveted aluminum cladding structure connects front/rear covers to alloy barrel, ensuring robust assembly integrity;
3. Compact piston seal features specialized bidirectional sealing profile with integrated oil retention design;
4. Multiple rear cover configurations for enhanced mounting versatility;
5. Comprehensive selection of cylinder sizes and standardized mounting accessories available for system integration.
Category: Dual-axis Cylinders | Brand: Airtac | Series: MBLD
AirTAC MBLD32X40 Dual-Rod Miniature Cylinder Specifications
- Model: MBLD32X40
- Type: Double-acting dual-rod cylinder
- Bore size: 32mm
- Stroke: 40mm (adjustable cushion)
- Operating pressure: 0.15–0.8 MPa
- Max piston speed: 500 mm/s
- Port size: M5x0.8 (standard) or NPT1/8 (optional)
- Rod diameter: 10mm (both rods)
- Material: Aluminum alloy body, chrome-plated piston rod
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃
- Lubrication: Pre-lubricated (use ISO VG32 oil if maintained)
- Weight: 1.25kg ±5%
- Dimensions (L×W×H): 121mm × 80mm × 52mm (at mid-stroke)
- Mounting: Through-hole pattern (4xM5 threads) + front flange option
- Position detection: Magnetic piston with sensor groove (10mm sensor width)
- Max lateral load: 35N
- ISO standard: 6432 compliant
Ultra-compact dual-rod actuator engineered for precision linear motion in space-constrained applications. Features synchronized dual-piston guidance for enhanced moment resistance and positional accuracy. The anodized body provides corrosion resistance in humid environments.
Typical Applications:
- PCB depaneling machines (simultaneous blade actuation)
- Pharmaceutical tablet pressing mechanisms
- Robotic end-effector tool changers
- Optical lens polishing equipment
- Battery cell stacking automation
Installation tip:
Align rods perpendicular to load movement within ±0.5° angular misalignment tolerance.
Use anti-rotation brackets (sold separately) for high-cycle applications exceeding 2Hz.
| Property | Property Value |
|---|---|
| sku | MBLD32X40 |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <32 mm> |
| Stroke | <40mm> |
