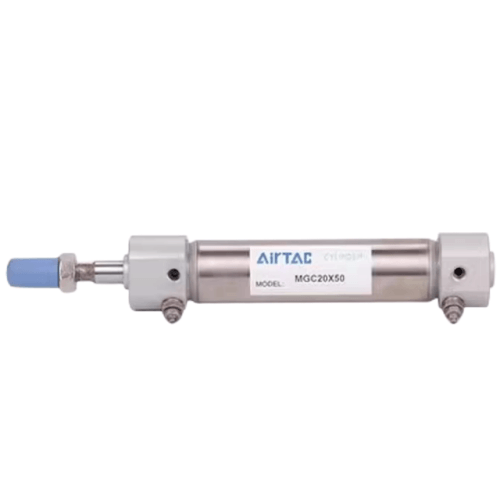

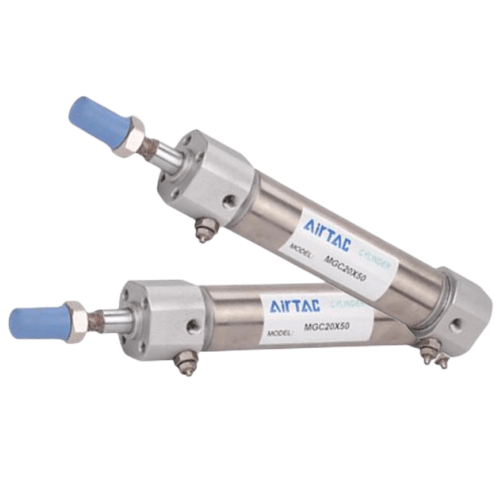

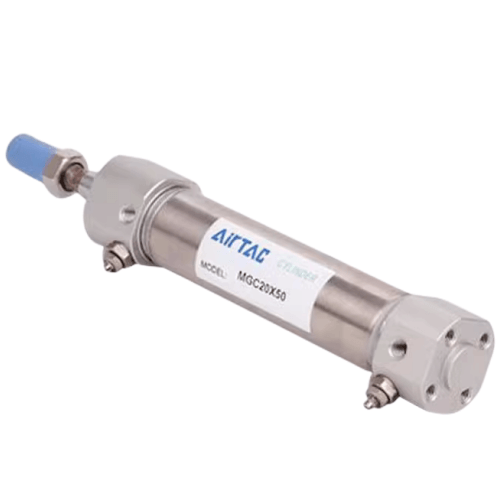

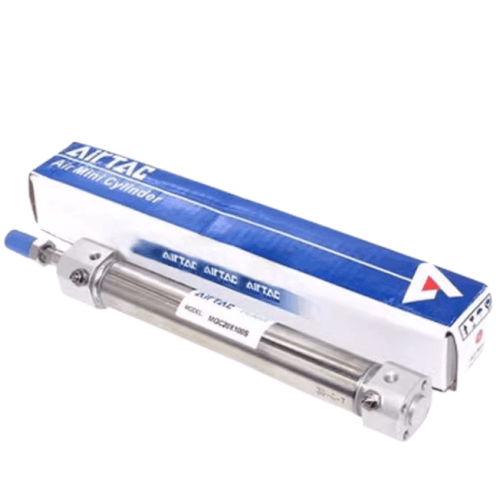

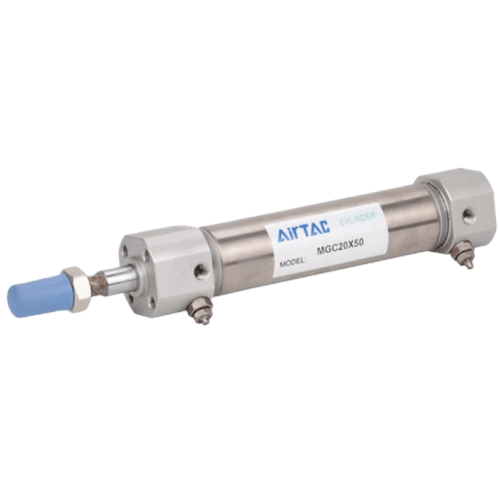

Airtac MGC Stainless Steel Mini Cylinder MGC63X500
2. Features profiled bidirectional piston sealing structure with compact dimensions and integrated oil reservoir functionality;
3. Equipped with fixed shock-absorbing pads on both end caps to mitigate cylinder reversing impact;
4. Incorporates crimped composite encapsulation structure for secure connection between end caps and stainless steel body;
5. Constructed with precision-engineered stainless steel tubing for enhanced structural integrity and corrosion resistance;
6. Multiple customizable mounting accessories available for diversified installation requirements.
Category: Stainless Steel Miniature Cylinders | Brand: AIRTAC | Series: MGC
AirTAC MGC Stainless Steel Miniature Cylinder MGC63X500 Technical Details
- Model: MGC63X500
- Bore size: 63mm
- Stroke: 500mm
- Material: Stainless Steel (SUS304 barrel, CR rod)
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -20℃ to 150℃
- Port size: M5x0.8 (Standard) / NPT1/8 (Optional)
- Cushioning type: Adjustable rubber buffer
- Piston rod thread: M10x1.25
- Mounting style: Basic type (Requires separate bracket)
- Seal material: Fluororubber (FKM)
- Weight: 2.85kg (Without accessories)
- Dimensions:
- Extended length: 648mm (Stroke+148mm)
- Retracted length: 148mm
- Body width: 80mm (Including mounting bosses)
- Height: 63mm (Barrel outer diameter)
- IP rating: IP67 (Dust/water resistant)
- Lubrication: Pre-lubricated (Use ISO VG32 or equivalent)
High-precision stainless steel cylinder with corrosion-resistant construction, designed for harsh environments requiring frequent washdowns or chemical exposure. Features double-acting operation and precision ground rod for smooth linear motion. The compact profile (63mm bore class) enables space-efficient automation solutions while maintaining high thrust capacity (theoretical output force: 312N at 0.5MPa).
- Food processing machinery (FDA-compliant lubrication)
- Pharmaceutical production lines (Sterilization-friendly design)
- Semiconductor manufacturing (Cleanroom compatible)
- Marine equipment (Saltwater resistance)
- High-temperature packaging systems
Installation guidelines:
Use anti-vibration mounts when operating above 2Hz cycle rate.
For vertical installations, add a rod end locknut (not included).
Maximum side load: 15% of dynamic thrust capacity.
| Property | Property Value |
|---|---|
| sku | MGC63X500 |
| Operation Type | Double Acting Cushioned |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Bore Diameter | 63mm |
| Stroke | 500mm |
