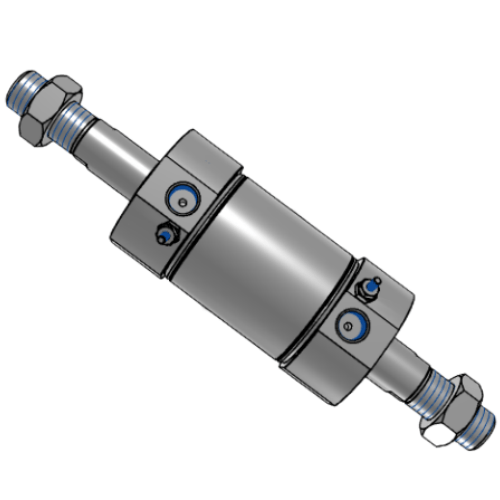

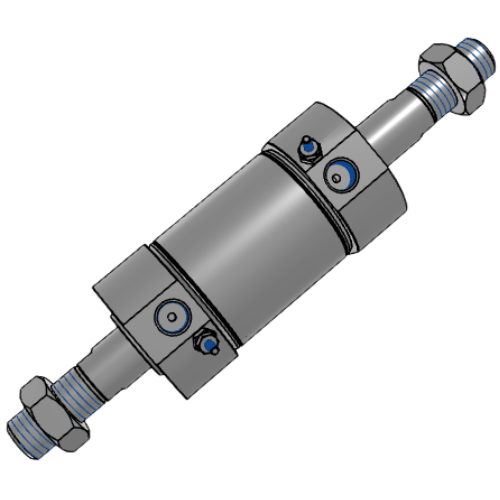

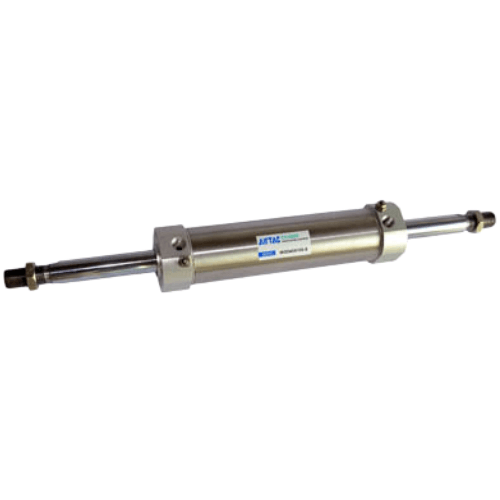

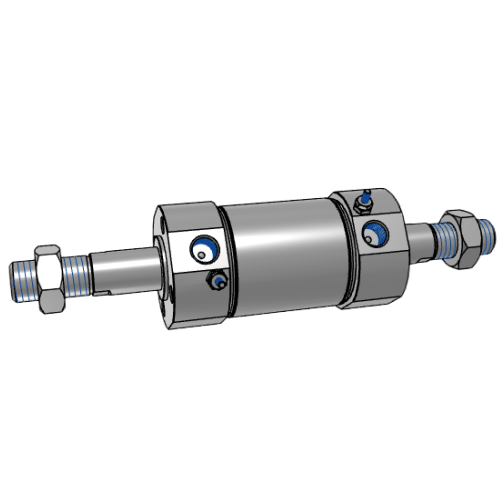

Airtac MGCD Stainless Steel Mini Air Cylinder MGCD63X450S
2. Features non-standard bidirectional sealing configuration for piston, offering compact dimensions with integrated oil reservoir functionality;
3. Integrated shock-absorbing pads on both end caps mitigate directional change impacts;
4. Robust riveted hybrid enclosure structure ensures secure connection between end caps and stainless steel body;
5. Precision-engineered stainless steel tubing construction delivers exceptional strength and corrosion resistance;
6. Multiple mounting accessories available for versatile installation configurations.
Category: Stainless Steel Miniature Cylinders | Brand: AirTAC | Series: MGCD
AirTAC MGCD Stainless Steel Mini Cylinder MGCD63X450S Technical Details
- Model: MGCD63X450S
- Series: MGCD (Stainless Steel Compact Cylinder)
- Bore size: 63 mm
- Stroke: 450 mm (Max. stroke limit: 500 mm)
- Construction: Full stainless steel (Cylinder tube & piston rod)
- Cushion type: Adjustable rubber buffer (both ends)
- Operating pressure: 0.15–1.0 MPa
- Temperature range: -20℃ to 80℃ (NBR seals)
- Port size: M5x0.8 (Standard) / NPT1/8 optional
- Piston rod thread: M14x1.5
- Mounting style: Basic type (MF1) with through hole mounting
- Weight: 4.5 kg (±3%)
- Dimensions:
- Total length: 575 mm (Stroke + end caps)
- Body diameter: 63 mm
- Mounting width: 90 mm (Center distance between mounting holes)
- Rod end height: 22 mm (From center to base)
- Seal material: NBR (Standard) / FKM available for high temp
- Protection rating: IP65 (Dust-tight & water jet resistant)
- Lubrication: Pre-lubricated (Maintenance-free for 2000 km operation)
Corrosion-resistant stainless steel cylinder designed for harsh environments requiring frequent washdowns or chemical exposure. Features anti-rotation piston rod and precision honed tube for smooth operation. The double-acting design delivers 2,480N thrust force at 0.6 MPa (extend) and 2,100N (retract). Includes magnetic piston for position sensing compatibility.
- Food processing/packaging machinery (FDA-compliant surfaces)
- Pharmaceutical cleanroom automation
- Semiconductor wafer handling systems
- Marine equipment actuators
- Chemical dosing mechanisms
- High-humidity textile machinery
Installation guidelines:
Use stainless steel fasteners to prevent galvanic corrosion.
Limit lateral load to ≤10% of maximum thrust.
For vertical mounting, install rod end down to prevent moisture accumulation.
Cycle rate should not exceed 80% of calculated maximum (Cv=1.2).
| Property | Property Value |
|---|---|
| sku | MGCD63X450S |
| Operation Type | Double Acting Cushioned |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Bore Diameter | 63mm |
| Stroke | 450mm |
