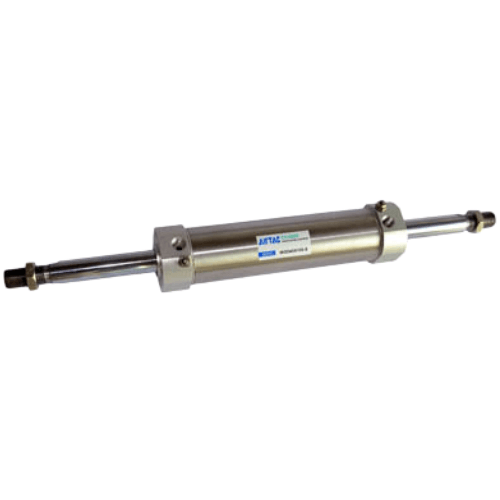

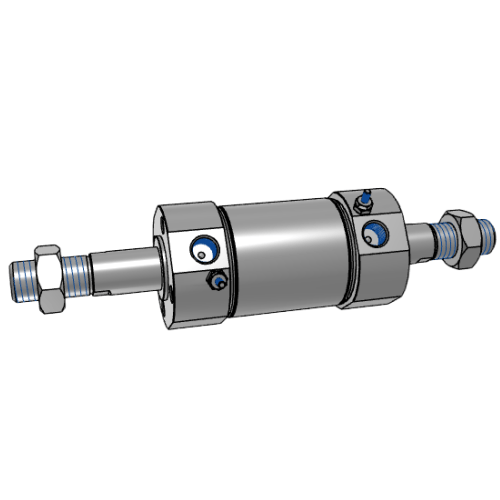

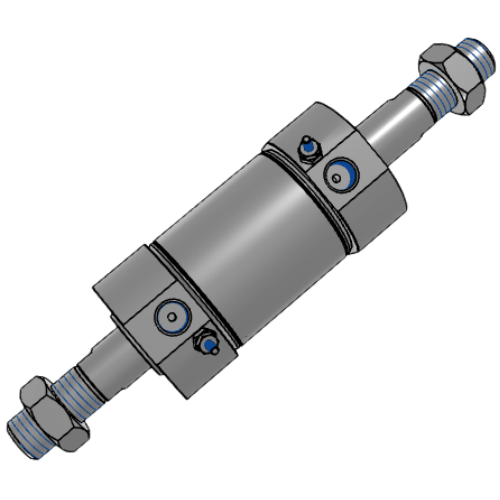

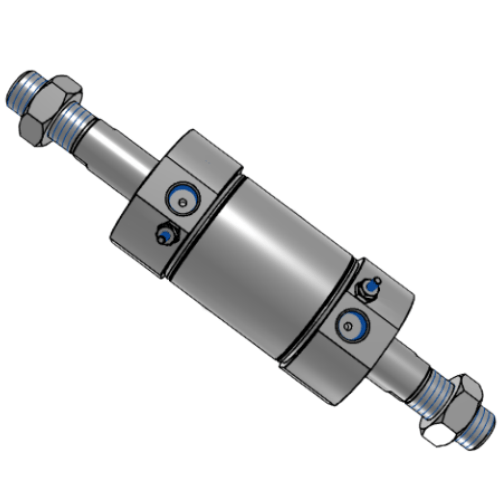

Airtac MGCD Stainless Steel Mini Air Cylinder MGCD63X500
$187.73
Regular price
$195.23
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MGCD63X500
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Compliant with JIS Standard;
2. Features non-standard bidirectional sealing configuration for piston, offering compact dimensions with integrated oil reservoir functionality;
3. Integrated shock-absorbing pads on both end caps mitigate directional change impacts;
4. Robust riveted hybrid enclosure structure ensures secure connection between end caps and stainless steel body;
5. Precision-engineered stainless steel tubing construction delivers exceptional strength and corrosion resistance;
6. Multiple mounting accessories available for versatile installation configurations.
Category: Stainless Steel Miniature Cylinders | Brand: AirTAC | Series: MGCD
Installation guidelines:
Maintain 0.5-1mm clearance between rod end and load during alignment.
For full stroke operation, keep air supply pressure ≥0.3MPa.
Lubricate every 5,000km operation or 6 months in washdown environments.
2. Features non-standard bidirectional sealing configuration for piston, offering compact dimensions with integrated oil reservoir functionality;
3. Integrated shock-absorbing pads on both end caps mitigate directional change impacts;
4. Robust riveted hybrid enclosure structure ensures secure connection between end caps and stainless steel body;
5. Precision-engineered stainless steel tubing construction delivers exceptional strength and corrosion resistance;
6. Multiple mounting accessories available for versatile installation configurations.
Category: Stainless Steel Miniature Cylinders | Brand: AirTAC | Series: MGCD
AirTAC MGCD Stainless Steel Mini Cylinder MGCD63X500 Technical Details
- Model: MGCD63X500
- Bore size: 63mm
- Stroke: 500mm
- Material: Stainless steel (SUS304 barrel/piston rod)
- Operating pressure: 0.1–1.0 MPa
- Temperature range: -20℃ to 80℃
- Port size: 1/4" NPT (G1/8 optional)
- Cushioning: Adjustable pneumatic cushion
- Mounting type: Standard front flange (MF1)
- Rod thread: M14×1.5
- Weight: 4.2kg (excluding accessories)
- Dimensions: 596mm(L) × 63mm(Bore) × 100mm(Mounting flange width)
- Seal material: NBR/FKM optional
- Lubrication: Pre-lubricated (ISO VG32 equivalent)
- ISO standard: 6431 compliant
Corrosion-resistant stainless steel cylinder with extended 500mm stroke, featuring precision honed tubing and dual cushioning adjustment. Hermetic seals prevent fluid ingress (IP65 equivalent when assembled). Includes anti-rotation guide for axial alignment stability.
Ideal for:
- High-humidity food processing machinery
- Pharmaceutical cleanroom automation
- Chemical spray systems
- Marine equipment actuators
- High-cycle packaging lines (up to 1,200 cph)
Installation guidelines:
Maintain 0.5-1mm clearance between rod end and load during alignment.
For full stroke operation, keep air supply pressure ≥0.3MPa.
Lubricate every 5,000km operation or 6 months in washdown environments.
| Property | Property Value |
|---|---|
| sku | MGCD63X500 |
| Operation Type | Double Acting Cushioned |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Bore Diameter | 63mm |
| Stroke | 500mm |
