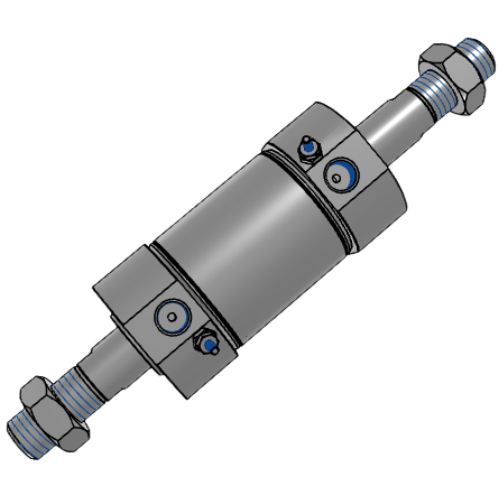

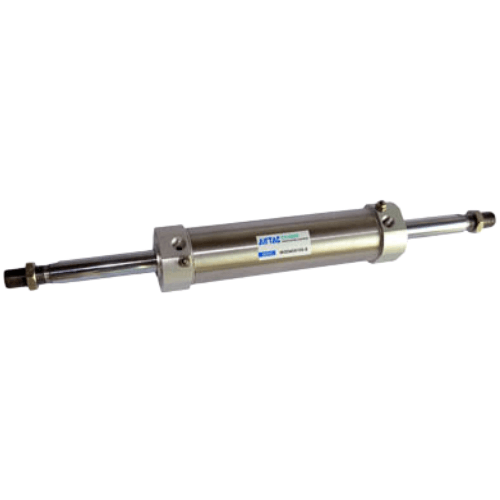

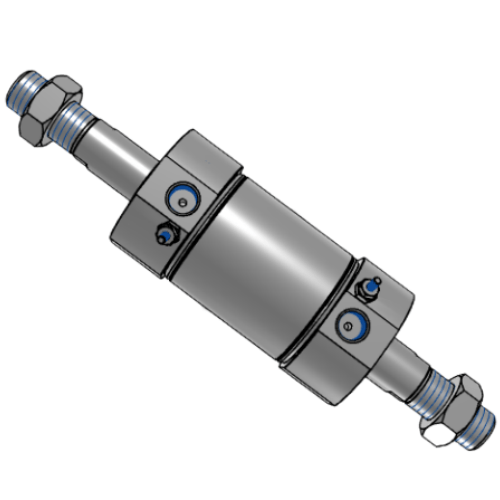

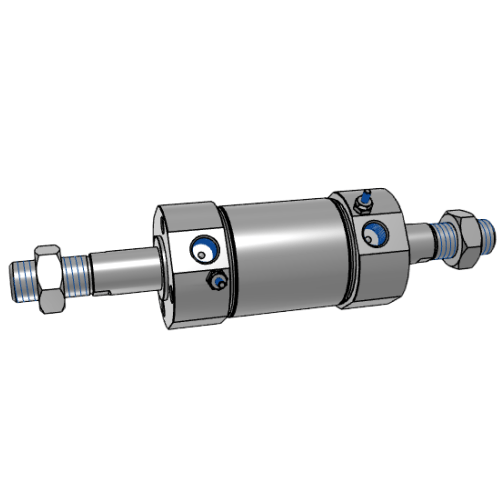

Airtac MGCD Stainless Steel Mini Air Cylinder MGCD63X500S
2. Features non-standard bidirectional sealing configuration for piston, offering compact dimensions with integrated oil reservoir functionality;
3. Integrated shock-absorbing pads on both end caps mitigate directional change impacts;
4. Robust riveted hybrid enclosure structure ensures secure connection between end caps and stainless steel body;
5. Precision-engineered stainless steel tubing construction delivers exceptional strength and corrosion resistance;
6. Multiple mounting accessories available for versatile installation configurations.
Category: Stainless Steel Miniature Cylinders | Brand: AirTAC | Series: MGCD
AirTAC MGCD Stainless Steel Mini Cylinder MGCD63X500S Specifications
- Model: MGCD63X500S
- Type: Double-acting single rod cylinder
- Bore size: 63mm
- Stroke: 500mm
- Material: Stainless steel (SUS304 barrel, CR12MOV piston rod)
- Operating pressure: 0.05-1.0 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable rubber buffer
- Port size: M5x0.8 (standard) or NPT1/8 (optional)
- Piston speed: 50-750 mm/s
- Weight: 4.8 kg (with standard accessories)
- Dimensions:
- Length: 694mm (full extension)
- Width: 82mm (including mounting brackets)
- Height: 82mm (cylindrical body diameter)
- ISO standard: 6432
- Protection rating: IP67
- Optional accessories: Magnetic switch (D-A93), mounting flange (FMS63)
A corrosion-resistant pneumatic actuator designed for harsh environments requiring frequent sterilization or chemical exposure. Features precision-ground rod surfaces (Ra ≤0.4μm) and low-friction seals (NBR/Urethane composite) for smooth operation. Includes anti-rotation guide slots and dual cushion adjustment screws for precise stroke control.
- Pharmaceutical cleanroom automation
- Food processing machinery (FDA-compliant lubrication)
- Semiconductor wafer handling systems
- Marine equipment actuators
- High-cycle packaging lines (500+ operations/minute)
Installation guidelines:
Maintain 0.5-1mm alignment tolerance during mounting. Lubricate with ISO VG32 hydraulic oil before initial use.
For vertical installations exceeding 45° angle, add rod-end support bracket (ASF63 sold separately).
| Property | Property Value |
|---|---|
| sku | MGCD63X500S |
| Operation Type | Double Acting Cushioned |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Bore Diameter | 63mm |
| Stroke | 500mm |
