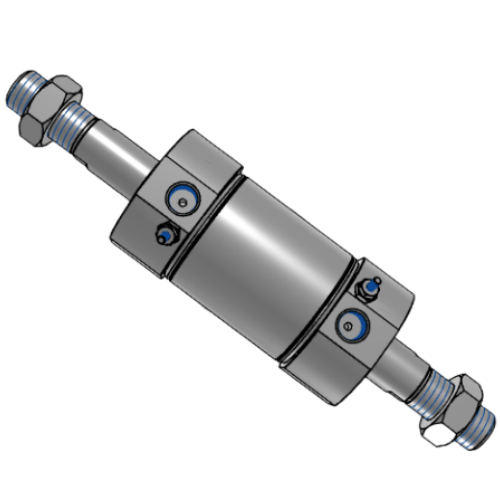

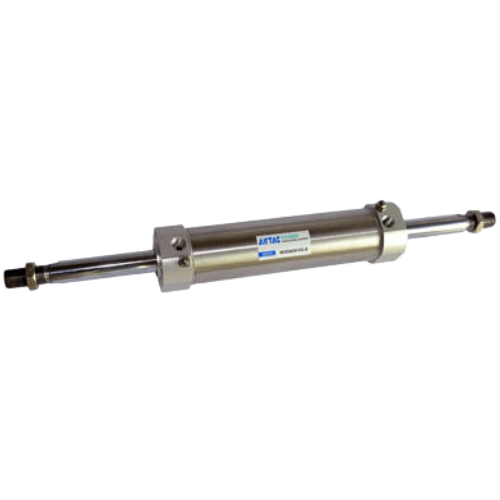

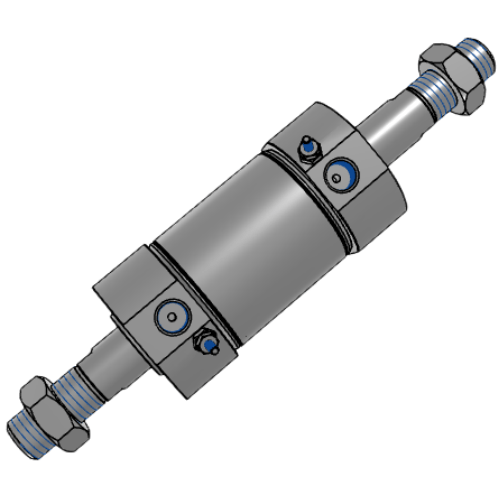

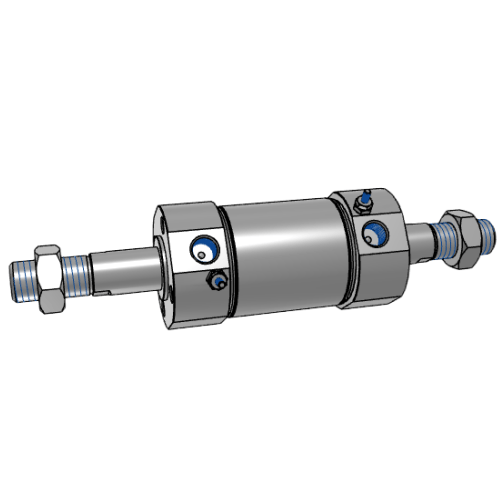

Airtac MGCD Stainless Steel Mini Air Cylinder MGCD63X50S
2. Features non-standard bidirectional sealing configuration for piston, offering compact dimensions with integrated oil reservoir functionality;
3. Integrated shock-absorbing pads on both end caps mitigate directional change impacts;
4. Robust riveted hybrid enclosure structure ensures secure connection between end caps and stainless steel body;
5. Precision-engineered stainless steel tubing construction delivers exceptional strength and corrosion resistance;
6. Multiple mounting accessories available for versatile installation configurations.
Category: Stainless Steel Miniature Cylinders | Brand: AirTAC | Series: MGCD
AirTAC MGCD Stainless Steel Miniature Cylinder MGCD63X50S Specifications
- Model: MGCD63X50S
- Bore size: 63mm
- Stroke: 50mm (customizable 25-300mm)
- Material: Stainless steel (SUS304 body, Cr-plated piston rod)
- Operating pressure: 0.05-1.0 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable rubber buffer + shock absorber pad
- Port size: M5x0.8 (standard) or NPT1/8 (optional)
- Piston speed: 50-750 mm/s
- Weight: 1.65kg (with rod), 1.35kg (body only)
- Dimensions:
- Length: 176mm (minimum retracted length)
- Width: 75mm (including mounting brackets)
- Height: 63mm (cylinder diameter)
- Rod end type: Female thread M10x1.25
- Protection rating: IP65 (standard), IP67 w/optional seals
- Lubrication: Pre-lubricated (DOP-free grease)
High-precision stainless steel cylinder featuring corrosion-resistant construction and space-saving design. The chromium-plated rod and precision honed tube ensure smooth operation with ≤0.15mm lateral play. Includes dual anti-rotation guide slots (180° opposed) for precise linear motion. Compatible with magnetic sensors for position feedback (sensor groove: 8.5mm width).
- Cleanroom automation in semiconductor manufacturing
- High-cycle food packaging machinery (FDA-compliant variants)
- Pharmaceutical tablet press ejection systems
- Marine equipment actuators
- High-temperature oven door mechanisms
Installation note:
Maintain 0.5-1mm axial clearance during mounting. For vertical installations,
use rod-down orientation to prevent particle accumulation. Lubricate every
500km stroke distance with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | MGCD63X50S |
| Operation Type | Double Acting Cushioned |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Bore Diameter | 63mm |
| Stroke | <50mm> |
