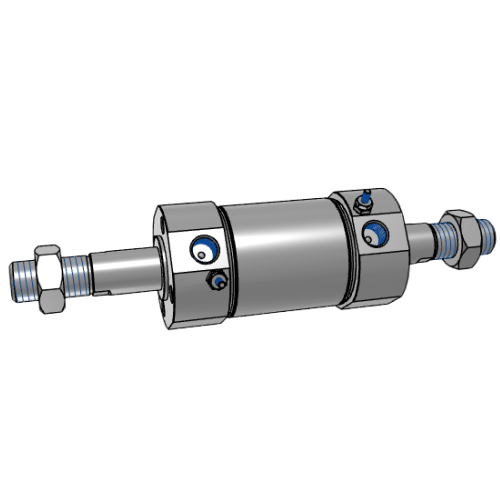

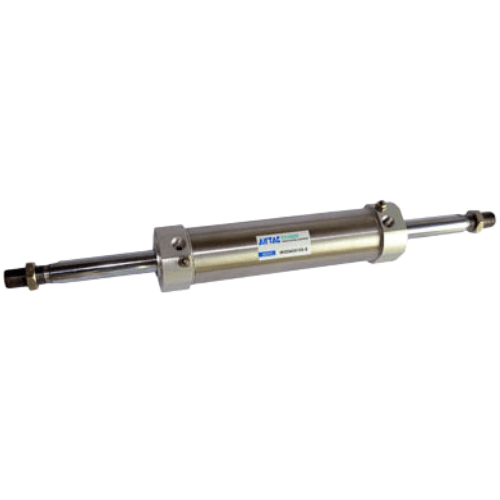

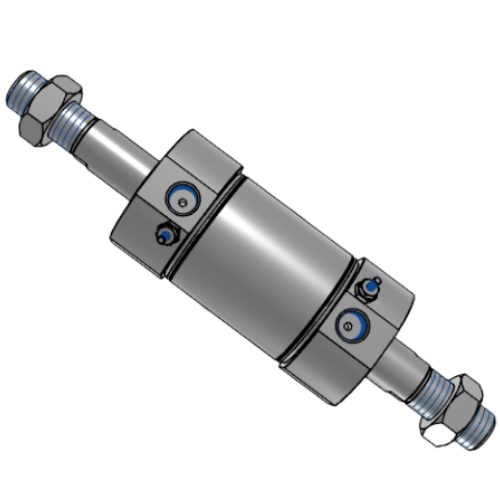

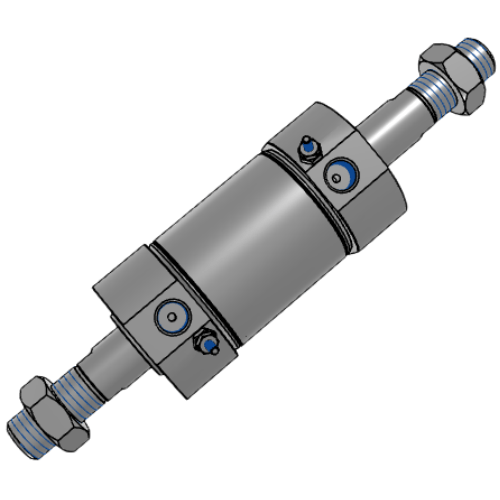

Airtac MGCD Stainless Steel Mini Air Cylinder MGCD63X75
2. Features non-standard bidirectional sealing configuration for piston, offering compact dimensions with integrated oil reservoir functionality;
3. Integrated shock-absorbing pads on both end caps mitigate directional change impacts;
4. Robust riveted hybrid enclosure structure ensures secure connection between end caps and stainless steel body;
5. Precision-engineered stainless steel tubing construction delivers exceptional strength and corrosion resistance;
6. Multiple mounting accessories available for versatile installation configurations.
Category: Stainless Steel Miniature Cylinders | Brand: AirTAC | Series: MGCD
AirTAC MGCD Stainless Steel Miniature Cylinder MGCD63X75 Specifications
- Model: MGCD63X75
- Type: Double-acting stainless steel cylinder
- Bore size: 63mm
- Stroke: 75mm (customizable 25-300mm)
- Operating pressure: 0.05-1.0 MPa
- Port size: M5x0.8 (standard) / NPT1/8 optional
- Cushioning: Adjustable pneumatic cushion
- Material: Stainless steel cylinder tube (SUS304) + hard chrome-plated piston rod
- Temperature range: -20℃ to 150℃
- Mounting options: Basic type (no foot) + accessory mounting kits available
- Protection rating: IP67 (dust/water resistant)
- Weight: 1.52 kg (without accessories)
- Dimensions: 180mm(L) × 63mm(W) × 63mm(H) (at mid-stroke position)
Premium corrosion-resistant cylinder with full stainless steel construction, featuring an ultra-compact profile (25% smaller than standard ISO cylinders). Precision-machined guide bands ensure smooth operation at speeds up to 1.5 m/s. Designed for 1 million+ cycle durability in harsh environments. Requires air filtration ≤5μm.
- Food processing machinery (washdown environments)
- Pharmaceutical cleanroom automation
- Semiconductor wafer handling systems
- Marine equipment actuators
- High-temperature curing oven mechanisms
Installation tip:
Apply silicone-free lubricant (ISO VG32) when operating below -10℃.
Maintain 0.5mm minimum clearance between piston rod and lateral loads.
| Property | Property Value |
|---|---|
| sku | MGCD63X75 |
| Operation Type | Double Acting Cushioned |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | Non-magnetic |
| Bore Diameter | 63mm |
| Stroke | 75mm |
