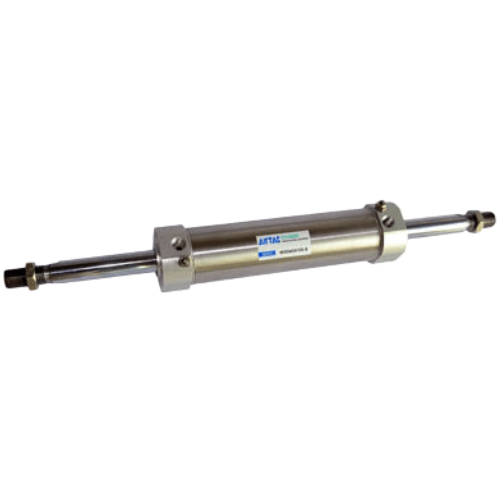

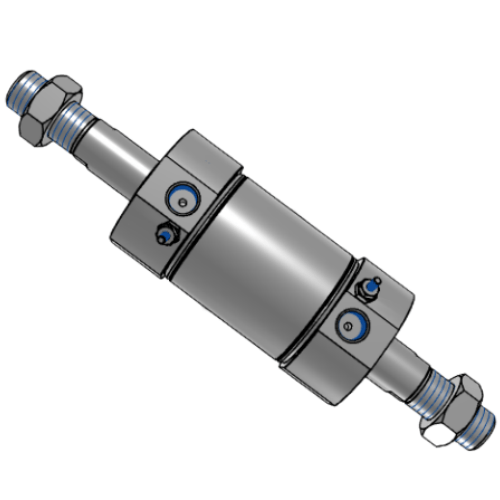

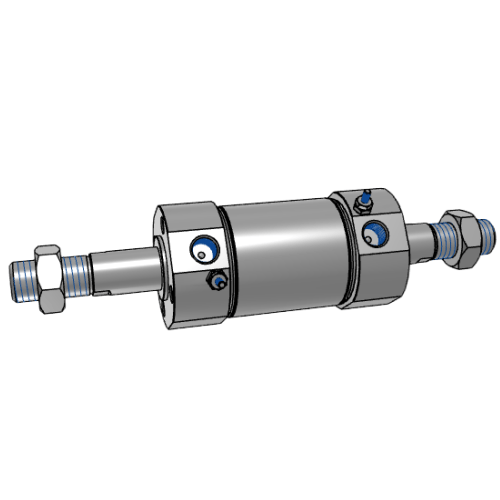

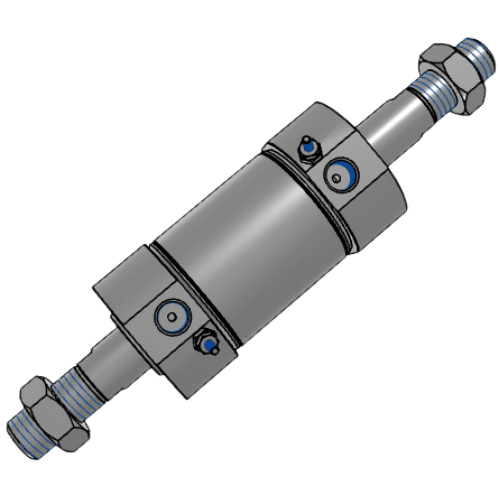

Airtac MGCD Stainless Steel Mini Air Cylinder MGCD63X75S
2. Features non-standard bidirectional sealing configuration for piston, offering compact dimensions with integrated oil reservoir functionality;
3. Integrated shock-absorbing pads on both end caps mitigate directional change impacts;
4. Robust riveted hybrid enclosure structure ensures secure connection between end caps and stainless steel body;
5. Precision-engineered stainless steel tubing construction delivers exceptional strength and corrosion resistance;
6. Multiple mounting accessories available for versatile installation configurations.
Category: Stainless Steel Miniature Cylinders | Brand: AirTAC | Series: MGCD
AirTAC MGCD Stainless Steel Mini Cylinder MGCD63X75S Specifications
- Model: MGCD63X75S
- Type: Double-acting stainless steel cylinder
- Bore size: 63 mm
- Stroke: 75 mm
- Material: SUS304 stainless steel (body & piston rod)
- Operating pressure: 0.15–0.8 MPa
- Cushioning: Adjustable buffer at both ends
- Temperature range: -20℃ to 80℃ (NBR seals)
- Port size: M5x0.8 (Standard) / NPT1/8 optional
- Mounting: Basic front flange (ISO 15552 compatible)
- Piston speed: 50–800 mm/s (lubricated)
- Protection rating: IP67 (wipers included)
- Weight: 1.85 kg ±2%
- Dimensions: 197mm(L) × 63mm(Bore Ø) × 80mm(Mounting width)
Corrosion-resistant mini cylinder with full stainless construction, designed for cleanrooms and harsh environments. Features dual adjustable cushions for smooth end-stroke deceleration and reinforced rod wipers for particle containment. Requires ISO VG32 hydraulic oil lubrication for optimal performance.
- Pharmaceutical packaging machinery
- Semiconductor wafer handling robots
- Food processing automation lines
- Marine equipment actuators
- Chemical dosing systems
Installation note:
Use stainless steel fasteners to prevent galvanic corrosion.
Maintain 0.5–1mm alignment tolerance during mounting.
Perform weekly lubrication checks in high-cycle applications (>500 cycles/min).
| Property | Property Value |
|---|---|
| sku | MGCD63X75S |
| Operation Type | Double Acting Cushioned |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | PT1/4 |
| Magnet | S-Magnetic |
| Bore Diameter | 63mm |
| Stroke | 75mm |
