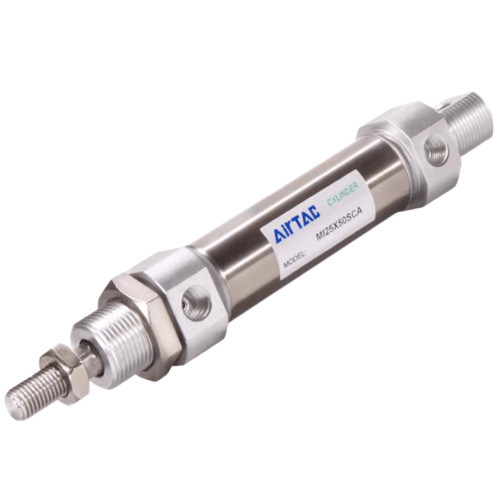

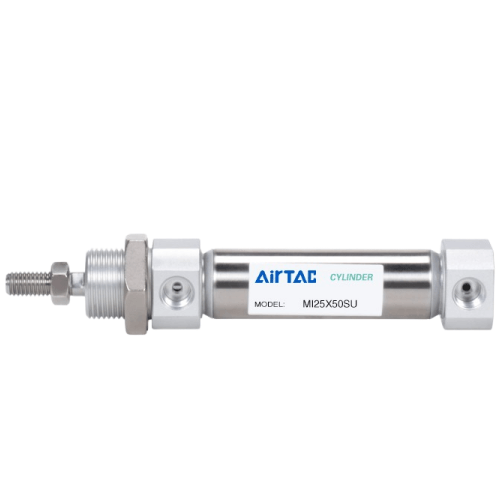

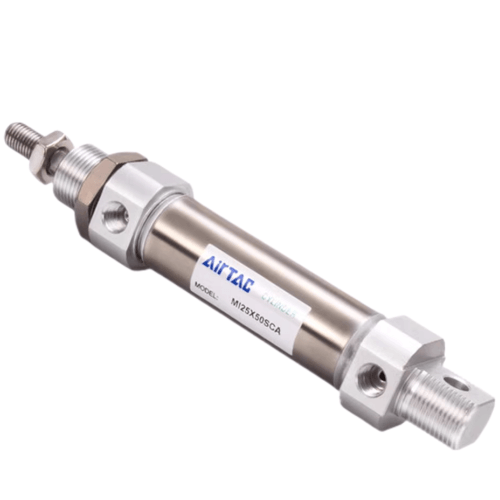

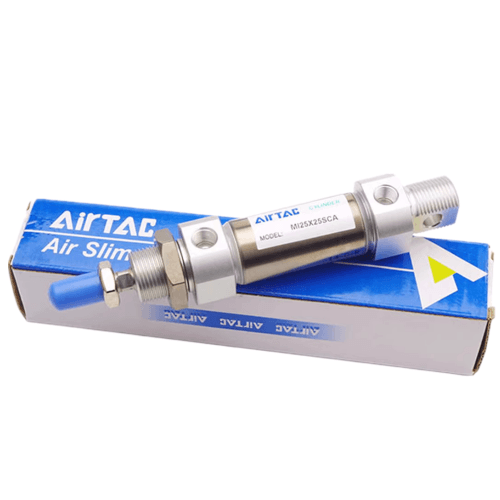

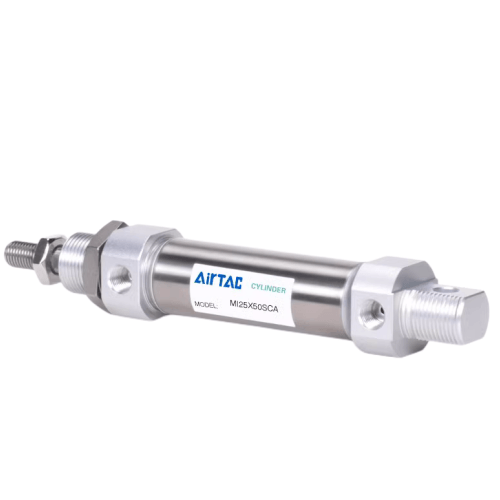

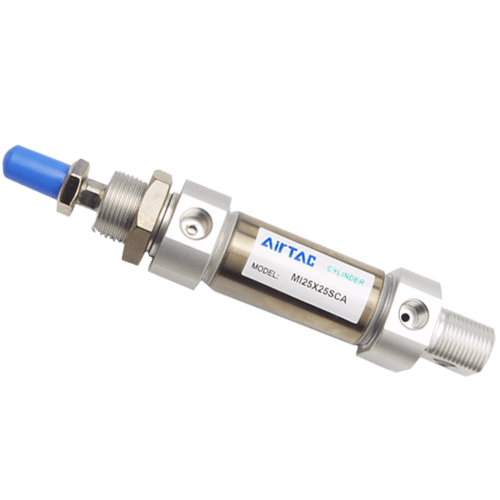

Airtac MI8~12 Stainless Steel Mini Cylinder MI12X350SU
2. Integrated cushion rings on front/rear caps to mitigate impact during directional changes;
3. Multiple rear cap configurations for enhanced mounting flexibility;
4. Crimped and rolled structure securely connects stainless steel cylinder body with end caps;
5. Stainless steel construction (piston rod & cylinder) ensures corrosion resistance in moderately corrosive environments;
6. Comprehensive model variants and mounting accessories available upon request.
Category: Stainless Steel Mini Cylinders | Brand: AIRTAC | Series: MI8~12
AirTAC MI12X350SU Stainless Steel Mini Cylinder Specifications
- Model: MI12X350SU
- Series: MI8~12 compact cylinder family
- Bore size: 12 mm
- Stroke: 350 mm (±0.5mm tolerance)
- Mounting style: Basic type (standard) with optional foot/mid-flange
- Operating pressure: 0.05–0.8 MPa
- Medium: Dry air (non-lubricated operation supported)
- Cushioning: Adjustable rubber bumper (both ends)
- Ambient temperature: -20℃ to 80℃
- Material: SUS304 stainless steel (body/piston rod)
- Seal material: NBR (standard) / FKM available (high-temp option)
- Port size: M5x0.8 (dual ports)
- Weight: 520 g (±2%)
- Dimensions:
- Length: 398 mm (full extension)
- Body diameter: 18 mm
- Mounting base: 25x25 mm square profile
- Rod thread: M6x1.0 (female)
- ISO standard: 6432 compliant
- Corrosion resistance: Passes 48hr salt spray test
Ultra-slim stainless steel pneumatic cylinder optimized for corrosive environments and cleanroom applications. Features zero-gap piston guidance technology for smooth operation at low speeds (≥10 mm/s). Compatible with vacuum pick-up systems through optional end-port modifications. Rated for 2,000km service life at 0.5MPa.
- Food processing line actuators (washdown environments)
- Semiconductor wafer handling robots
- Pharmaceutical tablet pressing mechanisms
- Marine equipment linear drives
- Sterilization chamber door actuators
Installation note:
Use stainless steel-compatible lubricants (PAG-based) for high-cycle applications.
Maximum side load: 3N at mid-stroke. For vertical mounting, add 10% pressure margin
to counteract gravity effects.
| Property | Property Value |
|---|---|
| sku | MI12X350SU |
| Rear Cover Type | Radial Air Inlet |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature:-20-70°C Speed Range:30-800mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | 12mm |
| Stroke | 350mm |
