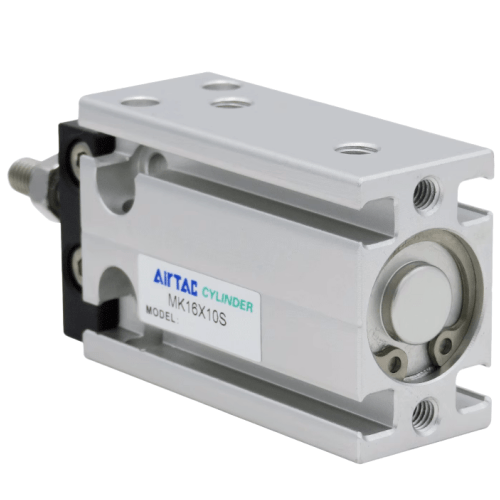

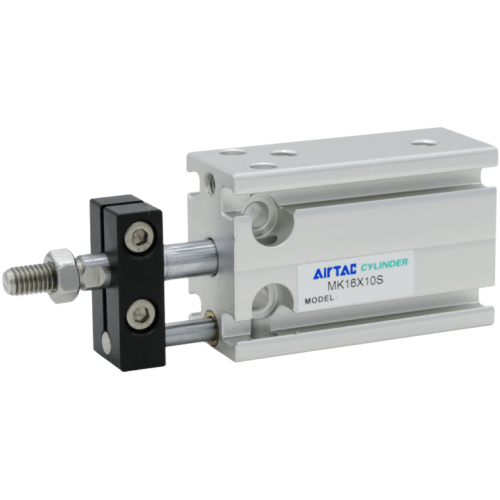

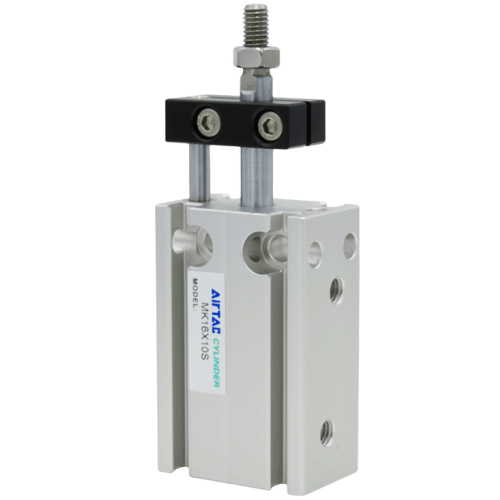

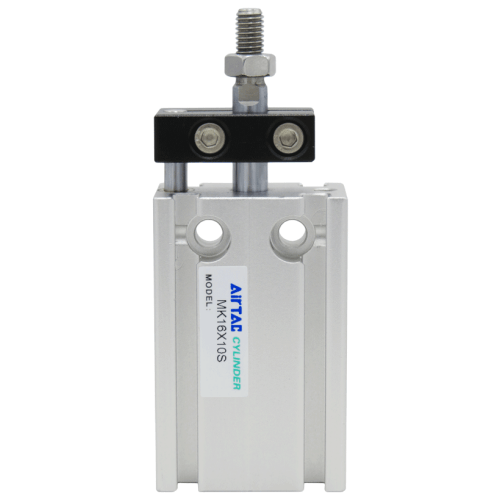

Airtac MK Series Multi-position Locking Cylinder MK25X10S
2. Features multiple body mounting configurations for simplified installation;
3. Gang-mounting capability enables multi-cylinder integration, optimizing space utilization in compact layouts;
4. Precision-guided piston rod design eliminates the need for external lubrication;
5. Integrated piston rod locking block ensures anti-rotation stability;
6. Extensive model selection across standardized specifications;
7. Optional high-temperature sealing materials support operation at 0~150℃ (optional feature).
Category: Multi-Position Fixed Cylinders | Brand: AIRTAC | Series: MK
AirTAC MK25X10S Multi-position Locking Cylinder Specifications
- Model: MK25X10S
- Type: Multi-position fixed pneumatic cylinder (double-acting)
- Bore size: 25mm
- Stroke: 10mm (fixed multi-position)
- Operating pressure: 0.05–1.0 MPa
- Locking positions: 3 fixed positions
- Port thread: M5x0.8
- Cushioning: Adjustable elastic cushion
- Operating temperature: -10℃ to 80℃
- Piston speed: 50–700 mm/s
- Mounting type: Basic radial mounting holes
- Protection class: IP54
- Weight: 0.85kg
- Dimensions: 135mm(L) × 38mm(W) × 38mm(H)
- Rod end type: Female thread M6x1.0
- Material: Aluminum alloy body, chrome-plated piston rod
Precision multi-station cylinder with mechanical locking mechanism for intermediate positioning. Features integrated position sensors slots (inductive sensor compatible) and dual anti-rotation guides. Optimized for repetitive stop-and-hold operations with 0.02mm repeat positioning accuracy.
- Semiconductor wafer handling robots
- Pharmaceutical tablet press tooling adjustment
- Automotive welding fixture positioning
- CNC machine tool clamping stations
- Packaging line product height adjustment
Installation note:
Requires clean dry air (ISO 8573-1:2010 Class 3.4.2) with 20-30μm filtration.
Lubricate with ISO VG32 hydraulic oil. Avoid side load exceeding 15N.
For multi-cylinder synchronization, maintain ≤0.05MPa pressure differential.
| Property | Property Value |
|---|---|
| sku | MK25X10S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <25 mm> |
| Stroke | <10mm> |
