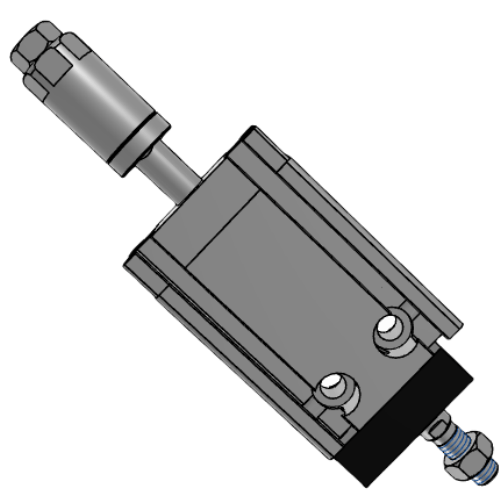

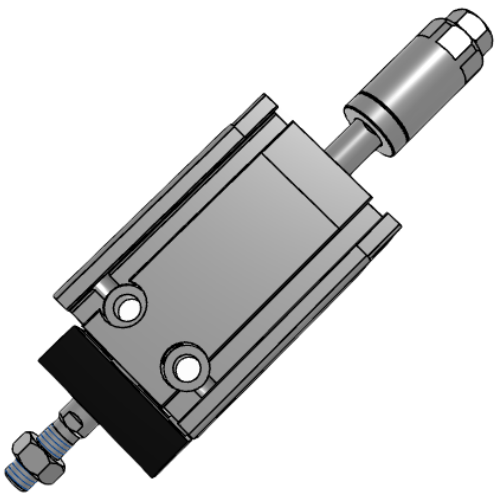

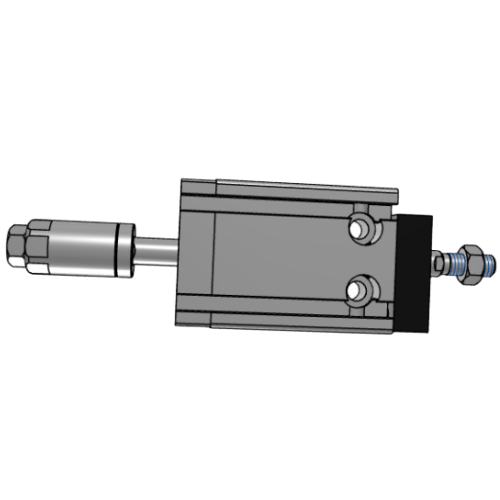

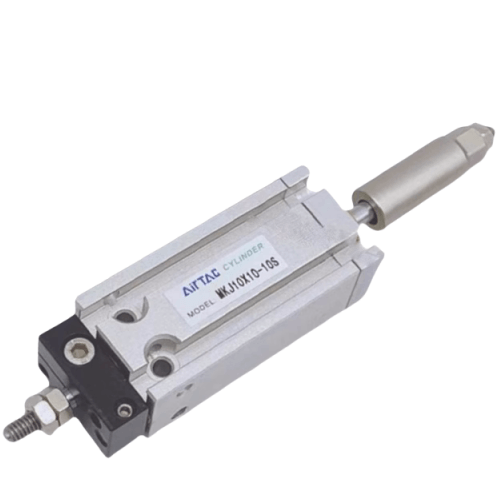

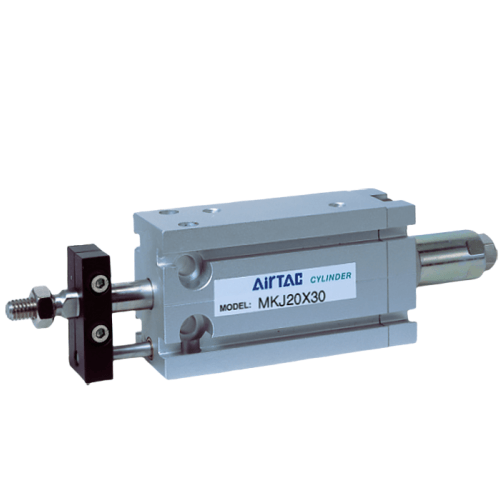

Airtac MKJ Adjustable Cylinder MKJ6X35-30S
$59.05
Regular price
$66.55
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MKJ6X35-30S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Compliant with enterprise standards;
2. Multiple mounting configurations for simplified installation;
3. Supports parallel cylinder mounting to optimize space utilization;
4. Precision-guided piston rod eliminates need for external lubrication;
5. Integrated piston rod locking block prevents rotation during operation;
6. Extensive range of models and specifications for diverse applications;
7. Optional high-temperature seals available for 0-150℃ operating range (Optional).
Category: Adjustable Cylinders | Brand: AirTAC | Series: MKJ Series
Installation note:
Use locknuts (not included) for stroke adjustment screw fixation.
Maximum side load: 1.5N. Lubricate rod with ISO VG32 hydraulic oil
if used in vertical downward orientation.
2. Multiple mounting configurations for simplified installation;
3. Supports parallel cylinder mounting to optimize space utilization;
4. Precision-guided piston rod eliminates need for external lubrication;
5. Integrated piston rod locking block prevents rotation during operation;
6. Extensive range of models and specifications for diverse applications;
7. Optional high-temperature seals available for 0-150℃ operating range (Optional).
Category: Adjustable Cylinders | Brand: AirTAC | Series: MKJ Series
AirTAC MKJ Adjustable Cylinder MKJ6X35-30S Technical Details
- Model: MKJ6X35-30S
- Type: Compact adjustable-stroke double-acting cylinder
- Bore size: 6mm
- Stroke: 35mm (adjustable ±2mm)
- Operating pressure: 0.15–0.8 MPa
- Temperature range: -20℃ to 80℃
- Port size: 1/8" NPT (M5 optional)
- Cushioning: Adjustable rubber buffer
- Mounting style: Basic type (no flange)
- Material: Aluminum alloy body, NBR seals
- Weight: 0.25kg ±5%
- Dimensions: 80mm(L) × 16mm(Ø) × 16mm(H) (body only)
- Rod end thread: M4×0.7 (standard)
- Max piston speed: 500mm/s
- Lubrication: Pre-lubricated (Grease-free operation)
Precision micro-cylinder featuring stroke adjustment screws at both ends for fine position control (±2mm). Anodized surface treatment provides corrosion resistance in humid environments. Integrated cushioning adjustment prevents impact damage during high-speed operation.
Typical Applications:
- Precision clamping in PCB assembly fixtures
- Miniature part ejection systems
- Optical lens positioning mechanisms
- Laboratory sample handling robots
- Semiconductor wafer processing equipment
Installation note:
Use locknuts (not included) for stroke adjustment screw fixation.
Maximum side load: 1.5N. Lubricate rod with ISO VG32 hydraulic oil
if used in vertical downward orientation.
Optional Accessories:
MKJ-M4B (compact bracket) or MKJ-SS (stainless steel rod version)
| Property | Property Value |
|---|---|
| sku | MKJ6X35-30S |
| Adjustable Stroke | 30mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Cushion Type | Bumper Pad |
| Bore Diameter | <6mm> |
| Stroke | 35mm |
