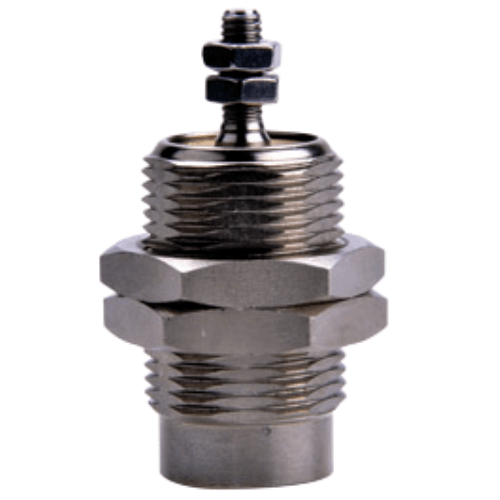

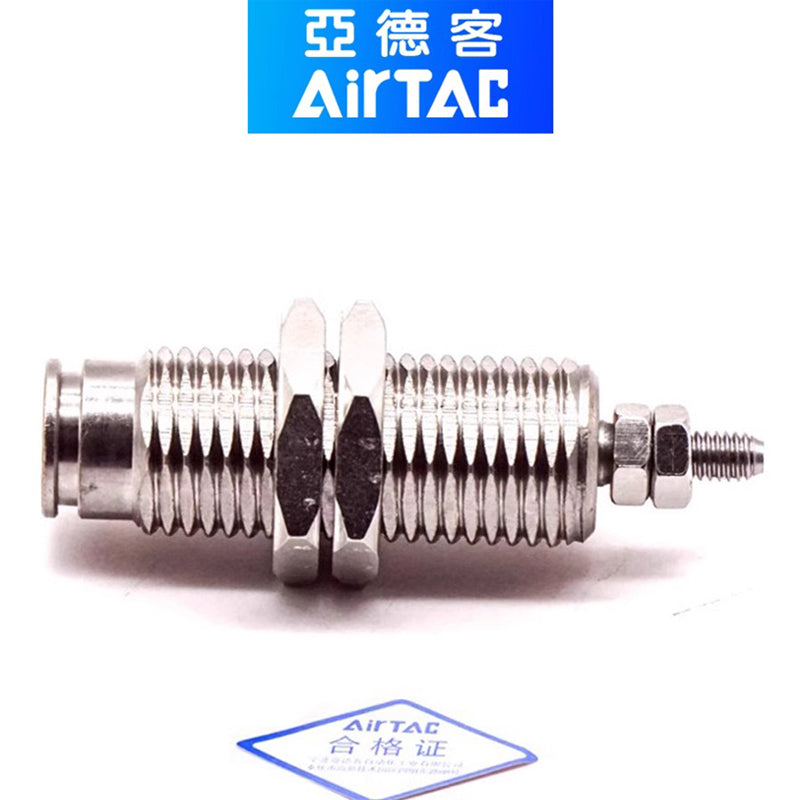

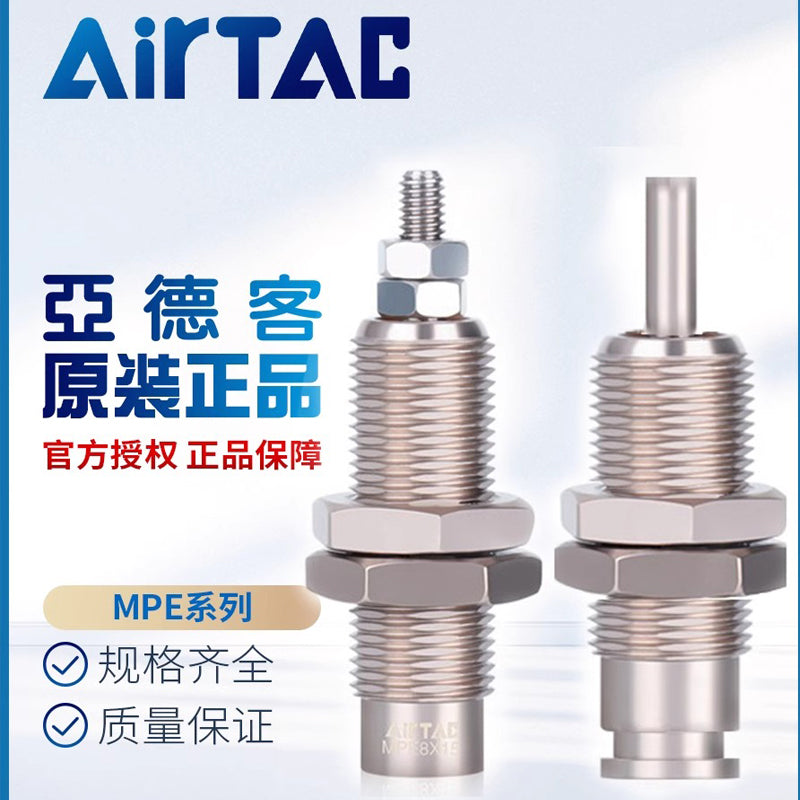

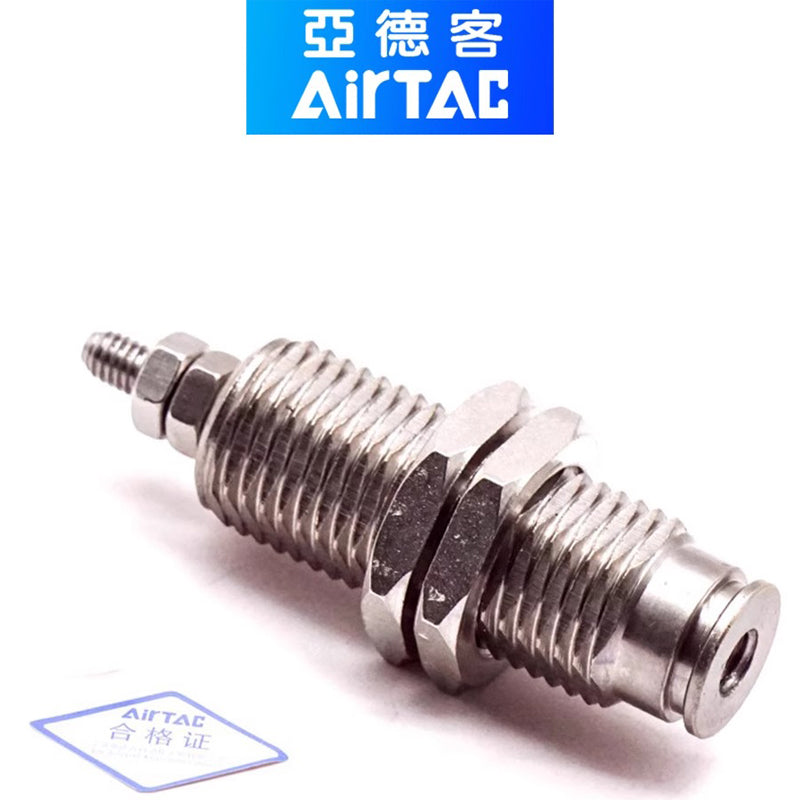

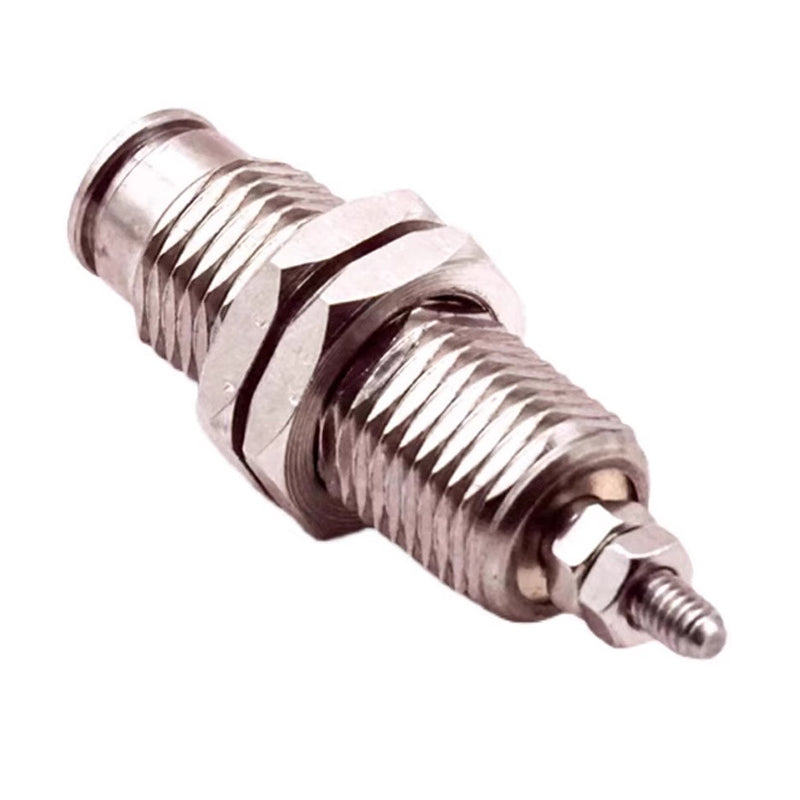

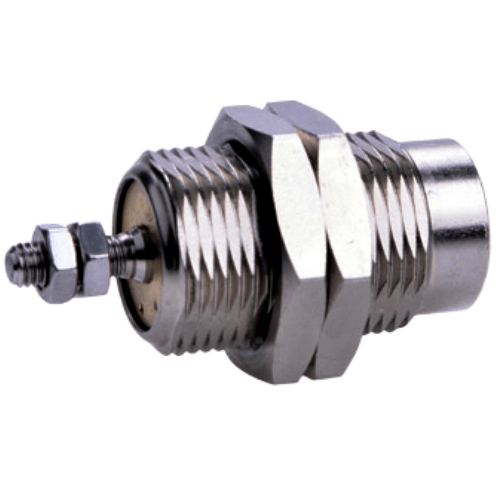

Airtac MPE Standard Type Threaded Air Cylinder MPE8X15N
2、Modular integration capability enables multi-cylinder configurations with flexible mounting orientations, optimizing layout efficiency;
3、Direct-thread mounting eliminates auxiliary accessories;
4、Comprehensive bore size selection (Φ6-Φ32) ensures application adaptability.
Category: Needle Cylinders , Brand: Airtac , Series: MPE Standard Threaded Cylinder Series
AirTAC MPE Standard Threaded Cylinder MPE8X15N Technical Details
- Model: MPE8X15N
- Series: MPE Standard ISO Cylinder (Threaded)
- Bore size: 8mm
- Stroke: 15mm
- Port thread: M5×0.8 (Standard) / PT1/8 optional
- Operating pressure: 0.15–0.8 MPa
- Cushioning: Fixed rubber buffer
- Piston material: Aluminum alloy with hard anodizing
- Rod material: SUS304 stainless steel
- Seal type: NBR rubber seals
- Temperature range: -20℃ to +80℃
- Weight: 0.12kg ±2%
- Dimensions (L×W×H): 85mm × 25mm × 25mm (Full extension length)
- Mounting: Basic type (Male threaded ends M8×1.25)
- Lubrication: Pre-lubricated (Oil-free operation possible)
- Protection class: IP65 (Dust-tight & water jet resistant)
- Air consumption: 0.15L/min at 0.5MPa
A precision micro-cylinder featuring thread-integrated body design for direct piping connections. The chrome-plated piston rod and dual cushioning system ensure smooth operation in high-cycle applications. Compact footprint with 360° adjustable mounting orientation, compatible with vacuum applications when paired with appropriate seals.
- PCB handling robots in electronics manufacturing
- Dental chair position adjustment mechanisms
- Textile machinery thread control systems
- Laboratory sample positioning stages
- Beverage canning line valve actuators
Operation tip:
For optimal performance, maintain air supply dew point below 3℃ and install
a 5μm filter regulator. Avoid side load exceeding 0.3N·m. Lubricate every
500km of cumulative stroke movement in dusty environments.
| Property | Property Value |
|---|---|
| sku | MPE8X15N |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°C Speed Range: 50-500 mm/s |
| Port Size | M5×0.8 |
| Piston Rod Thread Type | Non-threaded |
| Cushion Type | Non-cushioned |
| Bore Diameter | <8mm> |
| Stroke | <15mm> |
