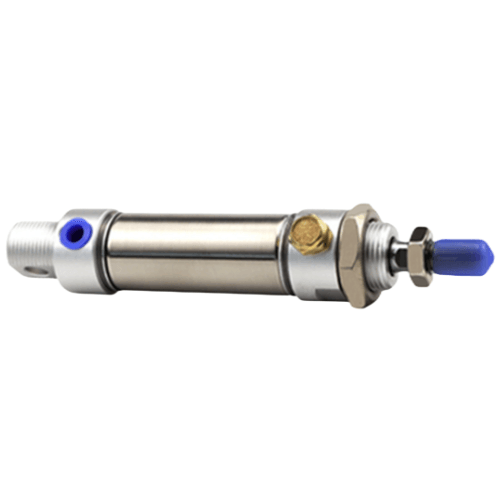

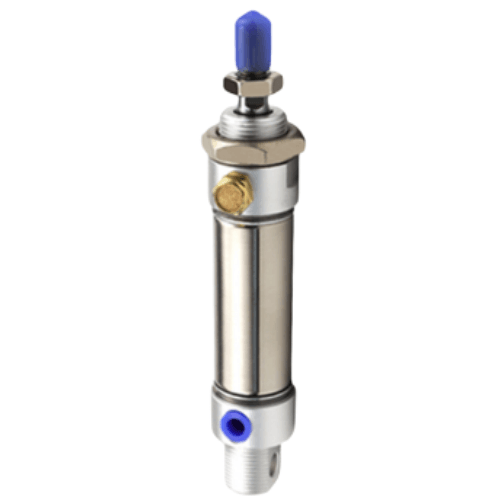

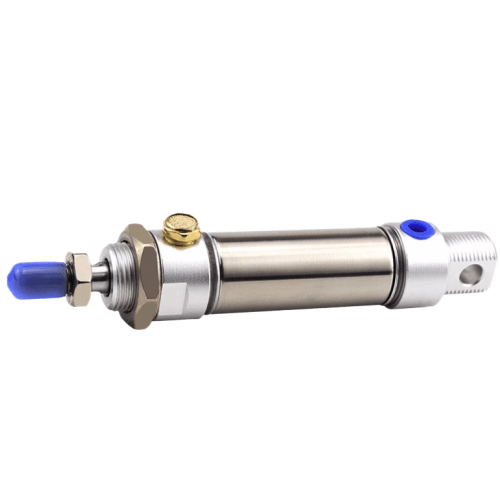

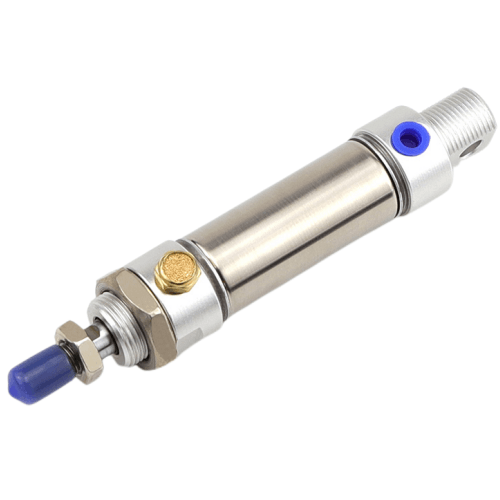

Airtac MSI Single Acting Stainless Steel Mini Cylinder MSI8X40SU
2. Front/rear covers with fixed cushion rings to minimize cylinder impact during directional changes;
3. Multiple rear cover configurations for enhanced installation flexibility;
4. Riveted enclosure structure securely connects stainless steel cylinder barrel with end covers;
5. Stainless steel piston rod and cylinder barrel enable operation in mildly corrosive environments;
6. Comprehensive selection of cylinder specifications and mounting accessories available.
Category: Stainless Steel Mini Cylinders | Brand: AIRTAC | Series: MSI
AirTAC MSI Series Single-Acting Stainless Steel Mini Cylinder MSI8X40SU
- Model: MSI8X40SU
- Action type: Single-acting (spring return)
- Bore size: 8mm
- Stroke: 40mm (±1mm)
- Port size: M5x0.8 (standard) / NPT1/8 optional
- Operating pressure: 0.15–0.8 MPa
- Operating temperature: -20℃ to 80℃
- Piston speed: 50–700 mm/s
- Cushioning: Adjustable rubber buffer
- Material: Stainless steel (SUS304) barrel, CRMo alloy piston rod
- Seal material: NBR + Fluororubber (FKM) hybrid
- Weight: 0.22 kg (excluding accessories)
- Dimensions: 105mm(L) × 25mm(W) × 25mm(H)
- Rod thread: M5×0.8 internal thread
- Protection rating: IP67 (standard) / IP69K optional
- Lubrication: Pre-lubricated (Grease-free operation available)
Ultra-compact stainless steel cylinder designed for corrosive environments and precision motion control. Features hybrid sealing system for dry/wet air compatibility (max 1 mg/m³ oil content). The chrome-molybdenum piston rod provides 3x higher buckling resistance than standard models. Mirror-finished barrel surface (Ra≤0.4μm) prevents particle adhesion.
- Semiconductor wafer handling robots
- Pharmaceutical liquid dispensing systems
- Food-grade packaging machinery (FDA-compliant version)
- Salt spray test chamber actuators
- High-cycle medical sterilization equipment
Installation guidelines:
Maximum side load ≤3N. For vertical mounting, use counterbalance valves when handling suspended loads.
Apply silicone-free lubricant (ISO VG32) every 500km stroke in continuous operation. Avoid direct UV exposure.
| Property | Property Value |
|---|---|
| sku | MSI8X40SU |
| Rear Cover Type | Radial Air Inlet |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <8mm> |
| Stroke | <40mm> |
