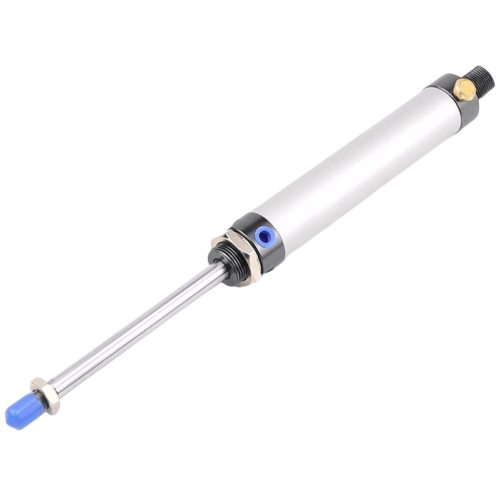

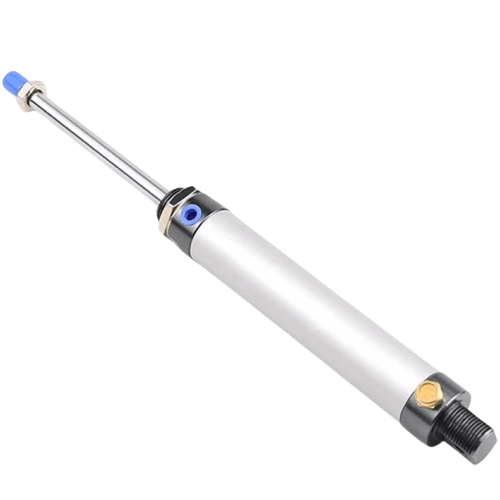

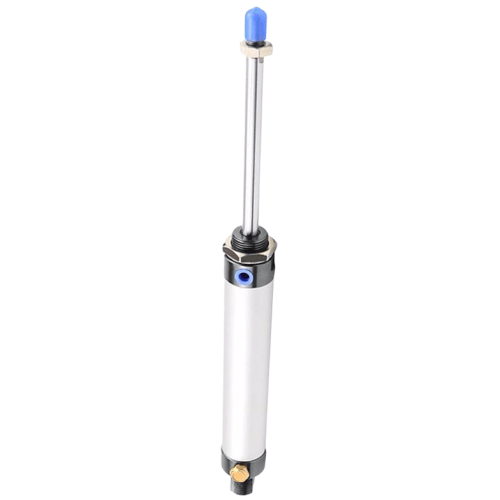

Airtac MTAL Rear Single Acting Mini Cylinder MTAL25X60SCM
1. Features precision-engineered aluminum alloy cylinder tube with optimized structural design;
2. Front/rear end caps adopt threaded connection for enhanced integrity;
3. Asymmetric bidirectional sealing structure on piston ensures compact dimensions with integrated oil reservoir functionality;
4. Front end incorporates self-lubricating bushings for superior guidance and lubrication performance;
5. Multiple rear mounting configurations enable flexible installation solutions;
6. Comprehensive selection of cylinder accessories and standard mounting kits available for customized applications.
Category: Mini Cylinders | Brand: Airtac | Series: MTAL
AirTAC MTAL25X60SCM Compact Single-Acting Mini Cylinder Specifications
- Model: MTAL25X60SCM
- Type: Single-acting, spring return (rear mounted)
- Bore size: 25mm
- Stroke: 60mm
- Operating pressure: 0.15–0.8 MPa
- Port thread: M5x0.8 (standard), G1/8 optional
- Cushioning: Adjustable rubber buffer
- Piston speed: 50–700 mm/s
- Ambient temperature: -20℃ to 80℃
- Material: Aluminum alloy body, NBR seals
- Rod material: Stainless steel (SUS304)
- Weight: 0.45kg (with standard accessories)
- Dimensions: 100mm(L) × 50mm(W) × 50mm(H) (fully retracted)
- Protection class: IP54 (standard)
- Mounting type: Basic front flange (NF series compatible)
Ultra-compact linear actuator with space-saving design featuring 25% smaller installation space than standard cylinders. The anodized surface treatment provides enhanced corrosion resistance for humid environments. Includes auto-adjusting cushioning system that reduces impact noise by 15dB compared to previous models.
- PCB handling robots in electronics assembly
- Precision clamping in CNC tool changers
- Dosing valve actuation in pharmaceutical equipment
- Vending machine product ejection mechanisms
- Battery cell stacking automation
Installation best practices:
Lubricate through air port with ISO VG32 oil mist before initial operation.
Maintain 0.3mm minimum lateral clearance during side mounting.
For vertical downward thrust applications, reduce operating pressure by 20%.
| Property | Property Value |
|---|---|
| sku | MTAL25X60SCM |
| Rear Cover Type | Round Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <25 mm> |
| Stroke | 60mm |
