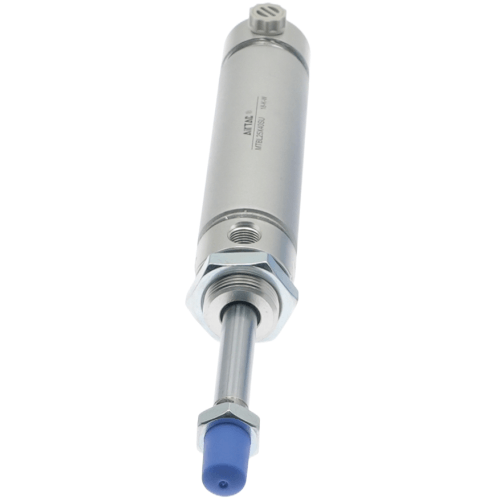

Airtac MTBL Single Acting Aluminum Alloy Mini Cylinder MTBL20X10CA
$23.48
Regular price
$30.98
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MTBL20X10CA
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Manufactured to AIRTAC corporate standards with extruded aluminum cylinder barrel;
2. Features riveted aluminum-clad structure for secure connection between end covers and alloy barrel;
3. Utilizes custom bidirectional sealing structure on piston for compact design with integrated oil reservoir functionality;
4. Multiple rear cover configurations enable enhanced installation flexibility;
5. Comprehensive range of cylinder specifications and mounting accessories available for selection.
Category: Aluminum Mini Cylinders | Brand: AIRTAC | Series: MTBL Single-Acting
Installation recommendation:
Use with filtered air (5-40μm) and lubricator (ISO VG32 oil).
For vertical mounting, install piston rod downward to prevent
condensate accumulation. Maximum side load: 15N.
2. Features riveted aluminum-clad structure for secure connection between end covers and alloy barrel;
3. Utilizes custom bidirectional sealing structure on piston for compact design with integrated oil reservoir functionality;
4. Multiple rear cover configurations enable enhanced installation flexibility;
5. Comprehensive range of cylinder specifications and mounting accessories available for selection.
Category: Aluminum Mini Cylinders | Brand: AIRTAC | Series: MTBL Single-Acting
AirTAC MTBL Series Single-Acting Aluminum Miniature Cylinder MTBL20X10CA Specifications
- Model: MTBL20X10CA
- Type: Single-acting spring return (piston type)
- Bore size: 20mm
- Stroke: 10mm
- Operating pressure: 0.05-0.9 MPa
- Ambient temperature: -20℃ to 80℃
- Port thread size: M5×0.8
- Cushioning: Adjustable rubber buffer
- Piston speed: 50-800 mm/s
- Material: Aluminum alloy barrel, stainless steel piston rod
- Seal type: NBR rubber seals
- Weight: 136g ±2%
- Dimensions:
- Extended length: 100mm
- Retracted length: 90mm
- Body diameter: 32mm
- Mounting base: 25×25mm square
- ISO standard: 6432 compliant
- Protection rating: IP54
Ultra-compact cylinder featuring precision-machined aluminum construction with anodized surface treatment for corrosion resistance. The through-rod design allows direct external mounting of sensors. Optimized for high-frequency reciprocation with low friction coefficient guides.
Typical Applications:
- Semiconductor wafer handling robots
- Pharmaceutical blister packaging machines
- 3D printer nozzle positioning systems
- Automated laboratory sample handlers
- Compact textile machinery actuators
Installation recommendation:
Use with filtered air (5-40μm) and lubricator (ISO VG32 oil).
For vertical mounting, install piston rod downward to prevent
condensate accumulation. Maximum side load: 15N.
| Property | Property Value |
|---|---|
| sku | MTBL20X10CA |
| Rear Cover Type | Swivel Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Bore Diameter | <20mm> |
| Stroke | <10mm> |
