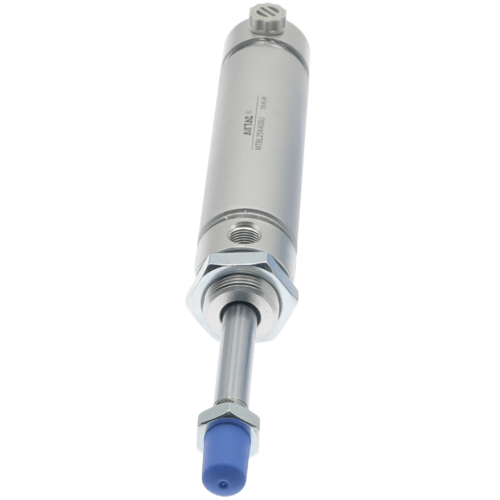

Airtac MTBL Single Acting Aluminum Alloy Mini Cylinder MTBL25X15SU
$29.06
Regular price
$36.56
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
MTBL25X15SU
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Manufactured to AIRTAC corporate standards with extruded aluminum cylinder barrel;
2. Features riveted aluminum-clad structure for secure connection between end covers and alloy barrel;
3. Utilizes custom bidirectional sealing structure on piston for compact design with integrated oil reservoir functionality;
4. Multiple rear cover configurations enable enhanced installation flexibility;
5. Comprehensive range of cylinder specifications and mounting accessories available for selection.
Category: Aluminum Mini Cylinders | Brand: AIRTAC | Series: MTBL Single-Acting
Installation tip:
Lubricate piston rod weekly with ISO VG32 hydraulic oil.
Maximum side load: 2.5N. Avoid rapid pressure changes >0.5MPa/100ms.
2. Features riveted aluminum-clad structure for secure connection between end covers and alloy barrel;
3. Utilizes custom bidirectional sealing structure on piston for compact design with integrated oil reservoir functionality;
4. Multiple rear cover configurations enable enhanced installation flexibility;
5. Comprehensive range of cylinder specifications and mounting accessories available for selection.
Category: Aluminum Mini Cylinders | Brand: AIRTAC | Series: MTBL Single-Acting
AirTAC MTBL Series Single-Acting Aluminum Miniature Cylinder MTBL25X15SU
- Model: MTBL25X15SU
- Type: Single-acting spring return (push type)
- Bore size: Ø25mm
- Stroke: 15mm
- Operating pressure: 0.05-0.9 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Adjustable rubber buffer
- Mounting style: Front flange with rear threaded cap
- Port size: M5x0.8 (standard) / NPT1/8 optional
- Material: Anodized aluminum alloy body, CRCA steel piston rod
- Seal material: NBR (Nitrile) with grease pre-lubrication
- Weight: 0.25kg (without accessories)
- Dimensions: 72mm(L) × 25mm(W) × 25mm(H)
- Rod end: Female M6x1 thread
- Protection rating: IP54 (standard wiper)
Ultra-compact pneumatic cylinder featuring precision honed tubing and dual anti-rotation design. The tapered piston design ensures smooth start-up at low pressure (0.05MPa). Special surface treatment prevents aluminum oxidation. Requires ISO 8573-1:2010 Class 3-4-3 compressed air.
Ideal for:
- Semiconductor wafer handling robots
- Precision optical lens positioning systems
- Laboratory automation sample tray pushers
- Compact packaging machine ejectors
- Medical device actuation mechanisms
Installation tip:
Lubricate piston rod weekly with ISO VG32 hydraulic oil.
Maximum side load: 2.5N. Avoid rapid pressure changes >0.5MPa/100ms.
| Property | Property Value |
|---|---|
| sku | MTBL25X15SU |
| Rear Cover Type | Flat Tail Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <25 mm> |
| Stroke | <15mm> |
