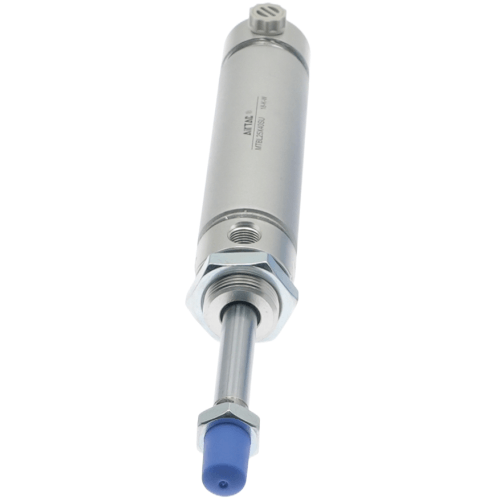

Airtac MTBL Single Acting Aluminum Alloy Mini Cylinder MTBL25X25CA
2. Features riveted aluminum-clad structure for secure connection between end covers and alloy barrel;
3. Utilizes custom bidirectional sealing structure on piston for compact design with integrated oil reservoir functionality;
4. Multiple rear cover configurations enable enhanced installation flexibility;
5. Comprehensive range of cylinder specifications and mounting accessories available for selection.
Category: Aluminum Mini Cylinders | Brand: AIRTAC | Series: MTBL Single-Acting
AirTAC MTBL25X25CA Single-Acting Aluminum Mini Cylinder Specifications
- Model: MTBL25X25CA
- Type: Single-acting spring return (push type)
- Bore size: 25mm
- Stroke: 25mm
- Operating pressure: 0.05–0.9 MPa
- Operating temperature: -20℃ to 80℃
- Port size: M5x0.8 (standard) with NPT1/8 adapter option
- Cushioning: Adjustable rubber buffer
- Material: Aluminum alloy body, CRCO piston rod
- Seal type: NBR seals with wear-resistant ring
- Weight: 0.48kg (without accessories)
- Dimensions:
- Body diameter: 32mm
- Retracted length: 85mm
- Extended length: 110mm
- Mounting base: 40mm x 40mm
- Lubrication: Pre-lubricated (optional grease-free operation)
- ISO standard: 6432 compliant
Ultra-compact pneumatic cylinder optimized for space-constrained automation systems. Features anodized aluminum construction for corrosion resistance and reduced weight. The dual guide rod design ensures precise linear motion with ≤0.5mm lateral play. Includes magnetic piston for position sensing compatibility.
- Semiconductor wafer handling robots
- Medical device actuation mechanisms
- Desktop automation test equipment
- Precision valve operators in HVAC systems
- Packaging machine ejector systems
Installation tips:
Maximum side load capacity 15N. For vertical mounting,
use counterbalance valves when handling suspended loads.
Recommended air filtration: 5μm with automatic drain.
| Property | Property Value |
|---|---|
| sku | MTBL25X25CA |
| Rear Cover Type | Swivel Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Bore Diameter | <25 mm> |
| Stroke | <25 mm> |
