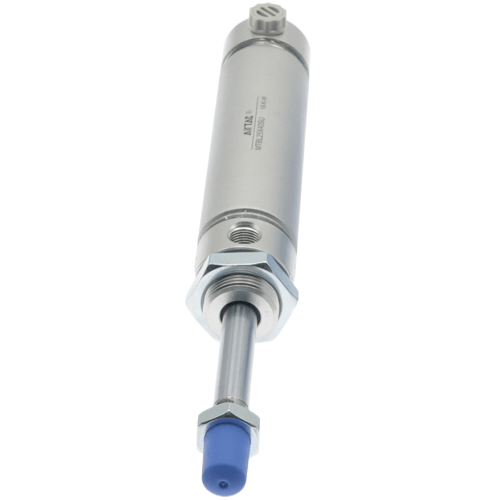

Airtac MTBL Single Acting Aluminum Alloy Mini Cylinder MTBL25X80CA
2. Features riveted aluminum-clad structure for secure connection between end covers and alloy barrel;
3. Utilizes custom bidirectional sealing structure on piston for compact design with integrated oil reservoir functionality;
4. Multiple rear cover configurations enable enhanced installation flexibility;
5. Comprehensive range of cylinder specifications and mounting accessories available for selection.
Category: Aluminum Mini Cylinders | Brand: AIRTAC | Series: MTBL Single-Acting
AirTAC MTBL Series Single-Acting Aluminum Miniature Cylinder MTBL25X80CA
- Model: MTBL25X80CA
- Type: Single-acting (spring return)
- Bore size: 25mm
- Stroke: 80mm
- Material: Aluminum alloy body, NBR seals
- Operating pressure: 0.15–0.8 MPa
- Port size: M5x0.8 (dual Rc1/8 optional)
- Piston speed: 50–800 mm/s
- Temperature range: -20℃ to +80℃
- Cushioning: Adjustable rubber buffer
- Mounting type: Basic foot mounting (MF12)
- Weight: 350g ±5%
- Dimensions:
- Extended length: 143mm
- Retracted length: 63mm
- Body diameter: 32mm
- Mounting hole spacing: 32mm (longitudinal)
- Accessories: Built-in magnet for magnetic sensor (CA suffix)
A space-optimized pneumatic actuator combining lightweight construction (40% lighter than steel equivalents) with corrosion resistance. Features dual cushion adjustment screws for precise end-position control and anodized surface treatment. Requires ISO VG32 hydraulic oil mist lubrication for optimal seal performance.
- Compact automation cells in electronics assembly lines
- Medical device actuation requiring non-magnetic interference
- Packaging machinery with limited mounting space
- Robotic end-effector tooling (grippers, pushers)
- Cleanroom-compatible material handling systems
Operation tip:
Maintain 0.3-1.0 MPa operating pressure during cold starts (-20℃)
to prevent seal hardening. Use guided mounting when lateral loads
exceed 5N. Lubricate every 5 million cycles under continuous duty.
| Property | Property Value |
|---|---|
| sku | MTBL25X80CA |
| Rear Cover Type | Swivel Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | PT1/8 |
| Magnet | Non-magnetic |
| Bore Diameter | <25 mm> |
| Stroke | 80 mm |
