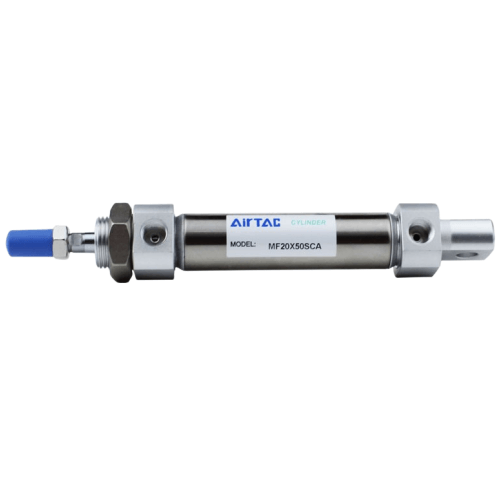

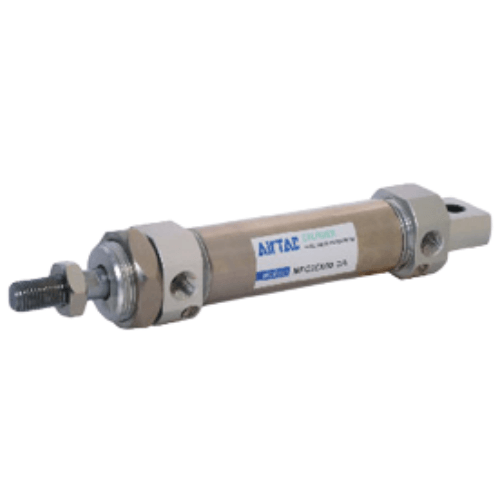

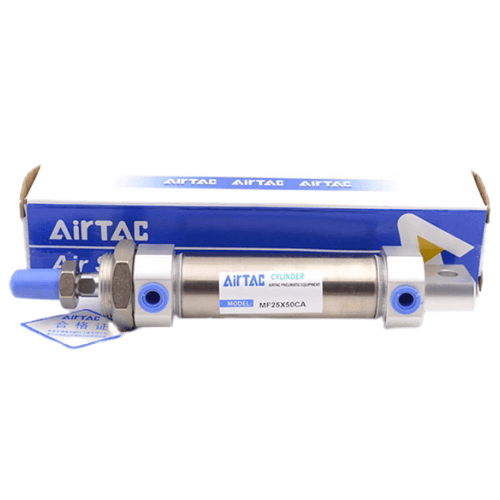

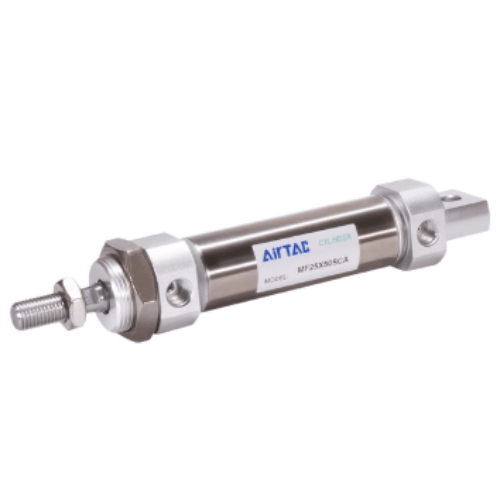

Airtac MTF Mini Cylinder MTF32X60SCA
2、Features bidirectional asymmetric piston sealing profile with compact dimensions and integrated oil retention features;
3、Integrated fixed cushion rings on end caps minimize impact during direction reversal;
4、Multiple rear cover configurations enhance installation flexibility;
5、Roller-crimped connection between stainless steel barrel and end caps ensures robust assembly integrity;
6、Precision-engineered stainless steel barrel offers high tensile strength and corrosion resistance;
7、Compact MF series design achieves shorter overall length compared to ISO 6432 standard cylinders with matching bore/stroke;
8、Comprehensive selection of bore sizes, stroke lengths, and mounting accessories for customized solutions.
Category: Compact Cylinders, Brand: AirTAC, Series: MTF
AirTAC MTF Miniature Cylinder MTF32X60SCA Specifications
- Model: MTF32X60SCA
- Type: Single-acting spring return (compact series)
- Bore size: 32mm
- Stroke: 60mm
- Operating pressure: 0.15–0.8 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable rubber buffer
- Port size: PT1/8 (G1/8 optional)
- Piston speed: 50–700 mm/s
- Material: Aluminum alloy body, NBR seals
- Weight: 0.65kg (excluding accessories)
- Dimensions: 132mm(L) × 32mm(W) × 32mm(H) (retracted position)
- Mounting type: Basic type (multiple mounting options available)
- Rod end: Female thread M10×1.25
- Protection class: IP54 (standard)
Ultra-compact pneumatic cylinder optimized for space-constrained automation systems. Features precision honed tube with hard anodized surface treatment for extended service life. The SC suffix indicates built-in auto-switch compatibility with magnetic piston design. Requires 5μm filtered air with 1-2 drops of ISO VG32 lubricant per m³.
- PCB handling robots in electronics manufacturing
- Pharmaceutical tablet pressing mechanisms
- Textile machinery thread tension control
- Automotive component testing jigs
- Food packaging portion control systems
Installation note:
Maximum side load capacity 15N. For vertical mounting,
use guide mechanisms when stroke accuracy exceeds ±0.5mm.
Lubricate rod weekly in high-cycle applications (>500,000 cycles/month).
| Property | Property Value |
|---|---|
| sku | MTF32X60SCA |
| Rear Cover Type | Swivel Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <32 mm> |
| Stroke | 60mm |
