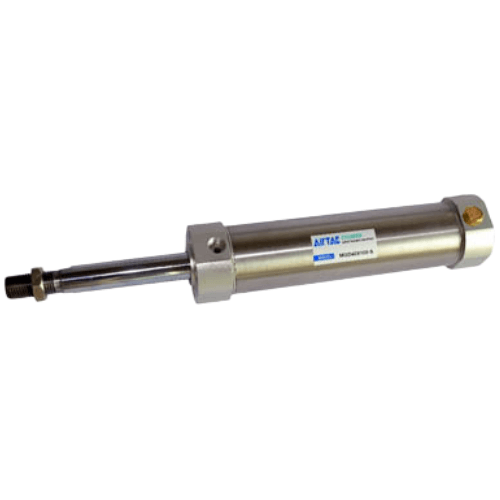

Airtac MTG Stainless Steel Mini Cylinder MTG40X25S
1. Compliant with JIS standards for precision engineering;
2. Features an asymmetric bidirectional sealing structure on the piston, delivering compact dimensions and integrated oil reservoir functionality to optimize lubrication retention;
3. Equipped with fixed cushion pads on both end caps, effectively mitigating directional change impacts and prolonging service life;
4. End caps and stainless steel barrel are secured via crimped roller wrapping technology, ensuring robust structural integrity;
5. High-precision stainless steel tubing construction provides exceptional strength and superior corrosion resistance;
6. Versatile mounting accessories available for flexible installation configurations.
Category: Mini Cylinders | Brand: Airtac | Series: MTG
AirTAC MTG Stainless Steel Miniature Cylinder MTG40X25S Specifications
- Model: MTG40X25S
- Type: Single-acting spring return (push type)
- Bore size: 40mm
- Stroke: 25mm
- Operating pressure: 0.05–0.9 MPa
- Operating temperature: -20℃ to 80℃
- Cushioning: Adjustable rubber buffer
- Material: Stainless steel (SUS304 barrel, CR-SUS piston rod)
- Port size: M5x0.8 (standard) with NPT1/8 adaptor optional
- Weight: 0.92kg (without accessories)
- Dimensions: 85mm(L) × 40mm(W) × 40mm(H) (fully retracted)
- Rod thread: M6x1.0 external thread
- Seal material: Fluorinated rubber (FKM)
- Protection rating: IP67
- Lubrication: Pre-lubricated (Grease-free operation available)
Corrosion-resistant miniature cylinder with precision-ground rod for smooth linear motion. Features anti-rotation mechanism and magnetic piston for position sensing compatibility. The stainless steel construction ensures durability in harsh environments while maintaining compact dimensions for space-constrained installations.
- Cleanroom automation in semiconductor manufacturing
- Food processing machinery (NSF-compliant version available)
- Medical device actuation systems
- Marine equipment controls
- Precision clamping in CNC tooling setups
Installation note:
For optimal performance, maintain 0.5-1mm alignment tolerance during mounting.
Use stainless steel fasteners in corrosive environments. Lubricate rod with
silicone-free grease if used in high-cycle applications (>1 million cycles).
| Property | Property Value |
|---|---|
| sku | MTG40X25S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Bore Diameter | <40mm> |
| Stroke | <25 mm> |
