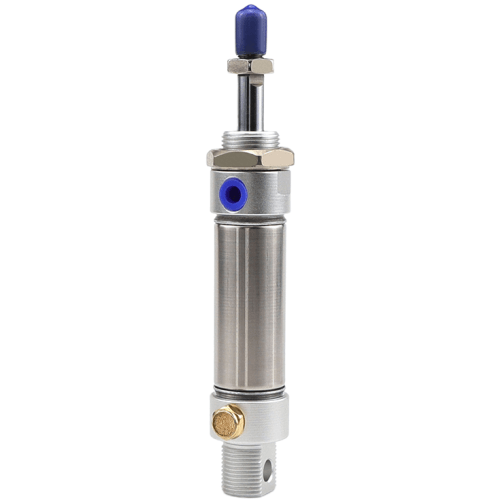

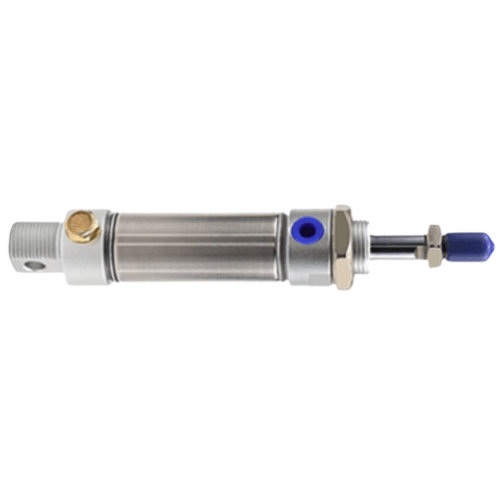

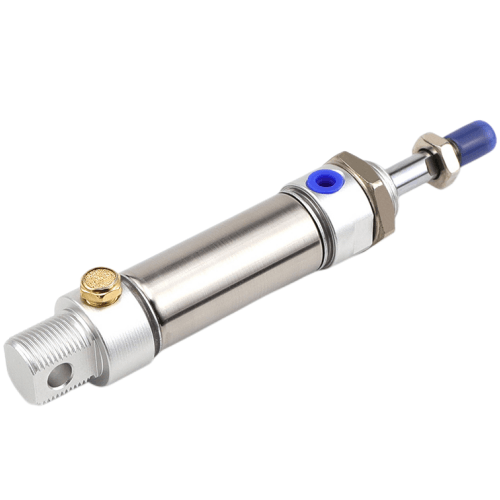

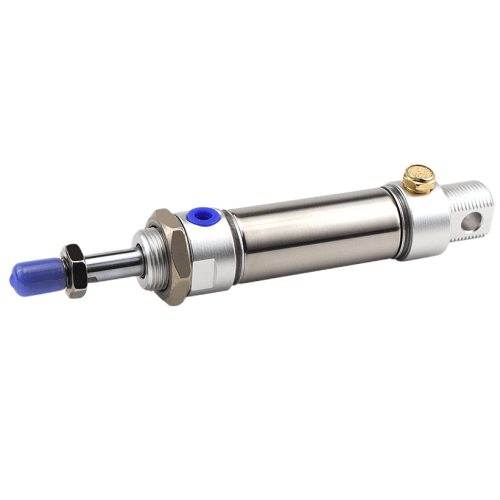

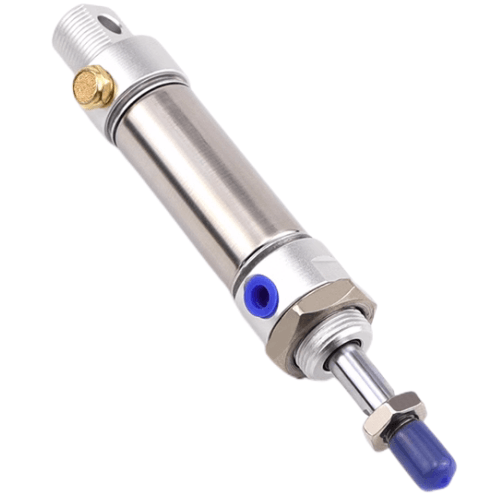

Airtac MTI Single Acting Stainless Steel Mini Cylinder MTI16X10CA
2. Integrated fixed cushion rings on front/rear covers minimize impact during directional changes;
3. Multiple rear cover configurations facilitate easier installation;
4. Crimped structure between stainless steel cylinder body and end covers ensures secure connection;
5. Stainless steel construction (piston rod & cylinder body) ensures resistance to moderately corrosive environments;
6. Comprehensive cylinder specifications and mounting accessories available, offering versatility for diverse application needs.
Category: Stainless Steel Mini Cylinders | Brand: AIRTAC | Series: MTI Single-Action Stainless Steel Mini Cylinders
AirTAC MTI Single-Acting Stainless Steel Mini Cylinder MTI16X10CA Specifications
- Model: MTI16X10CA
- Type: Single-acting (spring return)
- Bore size: 16mm
- Stroke: 10mm
- Material: Stainless steel (SUS304 barrel)
- Rod material: Stainless steel (SUS304)
- Seal material: NBR + Fluorine rubber (heat/corrosion resistant)
- Operating pressure: 0.15–0.8 MPa
- Temperature range: -20℃ to 80℃
- Cushion type: Rubber buffer
- Port size: M5×0.8
- Mounting style: Standard (front/rear flange options available)
- Protection rating: IP65
- Weight: 0.22kg
- Dimensions: 98mm(L) × 28mm(W) × 28mm(H)
High-precision mini cylinder with corrosion-resistant stainless steel construction, designed for space-constrained automation systems. Features dual-material seals for chemical resistance and high cycle life (500km+). Requires 5μm filtered dry air with ISO VG32 lubricant (optional oil-free operation).
- Cleanroom medical device actuators
- Food processing equipment (FDA-compliant version available)
- Semiconductor wafer handling robots
- Pharmaceutical blister packaging machines
- High-humidity marine control systems
Installation note:
Maintain 0.5-1mm alignment tolerance during mounting. For vertical installations,
use rod-end down orientation to prevent condensate accumulation. Lubricate monthly
with 1-2 drops of turbine oil (non-detergent) in non-oil-free applications.
| Property | Property Value |
|---|---|
| sku | MTI16X10CA |
| Rear Cover Type | Swivel Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | M5×0.8 |
| Magnet | Non-magnetic |
| Bore Diameter | 16mm |
| Stroke | <10mm> |
