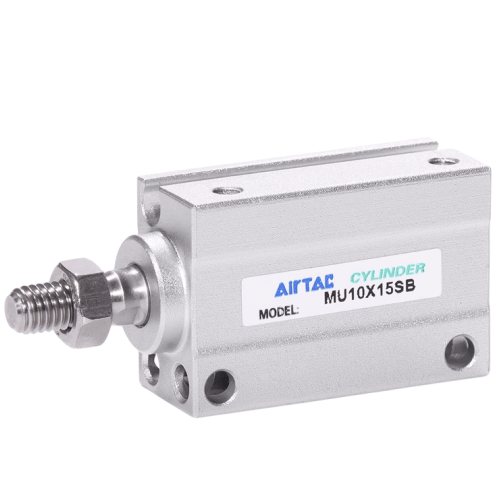

Airtac MU Mini Free Mount Cylinder MU20X10S
1. Compliant with JIS B8377 standards;
2. Four-directional mounting options with tool-free installation;
3. Space-optimized clustered configuration capability;
4. Integrated alignment boss ensures precise positioning;
5. Hard-anodized precision-bored barrel with exceptional wear/corrosion resistance;
6. Optional magnetic piston for position feedback;
7. T-slotted body accommodates proximity sensors with flexible mounting;
8. Asymmetrical bidirectional sealing system with integrated lubrication reservoir.
Category: Free Mount Cylinders | Brand: AirTAC | Series: MU
AirTAC MU20X10S Compact Free Mount Cylinder Technical Details
- Model: MU20X10S
- Type: Single-acting spring return cylinder
- Bore size: 20mm
- Stroke: 10mm (±1mm standard tolerance)
- Operation: Air pressure extend / Spring return
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Port size: M5x0.8 (standard) with NPT1/8 adaptor option
- Cushioning: Rubber buffer (both ends)
- Mounting: Free position (non-axial load) with 4x M3 threaded holes
- Material: Aluminum alloy barrel, CRMo steel piston rod, NBR seals
- Weight: 0.22 kg (0.48 lbs)
- Dimensions: 100mm(L) × 34mm(W) × 34mm(H) (excluding rod)
- Rod thread: M5x0.8 external thread at end
- Lubrication: Pre-lubricated (Oil-free operation possible)
Ultra-compact pneumatic cylinder optimized for space-constrained automation. Features 360° free mounting capability with multiple orientation options. The anodized barrel resists corrosion in humid environments, while the chrome-plated piston rod ensures smooth operation. Includes built-in auto-adjust cushioning to minimize end-impact noise below 75dB.
- PCB handling robots in electronics assembly
- Medical device actuation mechanisms
- Packaging machine gate controls
- Semiconductor wafer positioning stages
- Laboratory automation sample handlers
Installation tip:
Maintain 0.5-1mm clearance between mounting surface and cylinder body for thermal expansion.
Use only angular misalignment ≤0.5° when side-loaded. Lubricate every 500km stroke distance
with ISO VG32 turbine oil if used in high-cycle applications (>5Hz).
| Property | Property Value |
|---|---|
| sku | MU20X10S |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 30 to 500 mm/s |
| Port Size | M5×0.8 |
| Piston Rod Thread Type | Internal Thread |
| Magnet | S-Magnetic |
| Bore Diameter | <20mm> |
| Stroke | <10mm> |
