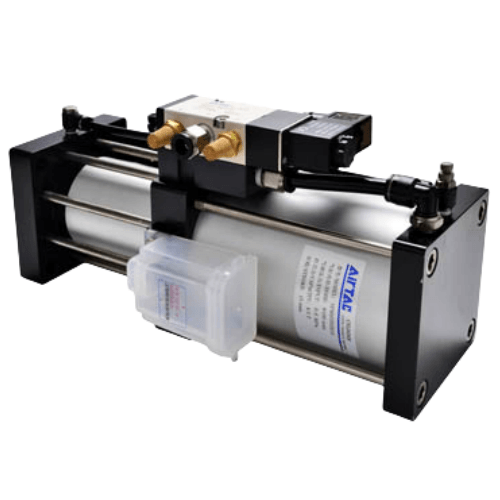

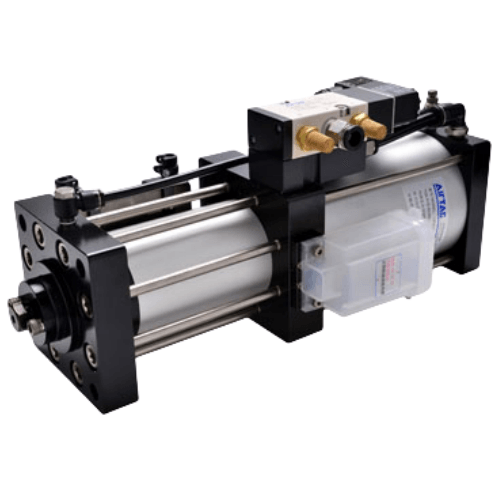

Airtac NPM Clamp Cylinder NPM45T63X13FI
$330.31
Regular price
$337.81
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
NPM45T63X13FI
Product type:
Tags:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Specialized sealing materials ensure exceptional leak-tight performance in hydraulic cylinder operation;
2、Cylinder barrels undergo precision surface treatments to significantly enhance wear resistance and corrosion durability;
3、Integrated spindle air purge functionality for enhanced machining cleanliness.
Category: Tool Clamping Cylinders | Brand: AirTAC | Series: NPM
Installation note:
Ensure proper alignment of knife-edge surfaces with guide rails.
Lubricate with ISO VG32 hydraulic oil during initial installation.
Maximum side load capacity: 35N at full extension.
2、Cylinder barrels undergo precision surface treatments to significantly enhance wear resistance and corrosion durability;
3、Integrated spindle air purge functionality for enhanced machining cleanliness.
Category: Tool Clamping Cylinders | Brand: AirTAC | Series: NPM
AirTAC NPM45T63X13FI Knife Edge Cylinder Specifications
- Model: NPM45T63X13FI
- Type: Compact knife-edge cylinder (double-acting)
- Bore size: 45mm
- Stroke: 63mm
- Operating pressure: 0.05–1.0 MPa
- Port size: M5x0.8 (dual ports)
- Cushioning: Adjustable rubber buffer (both ends)
- Mounting: FI type (front flange with through holes)
- Sensor compatibility: Built-in magnet for proximity switches
- Rod material: Hard chrome-plated steel
- Cylinder tube: Aluminum alloy anodized
- Operating temperature: -20℃ to 80℃
- Piston speed: 50–800 mm/s
- Weight: 1.65 kg (without accessories)
- Dimensions: 185mm(L) × 45mm(Bore Ø) × 64mm(Mounting height)
High-precision compact cylinder featuring distinctive knife-edge design for space-constrained automation systems. The hardened piston rod and dual cushioning system ensure smooth operation in high-cycle applications. Integrated mounting grooves allow direct sensor attachment.
Typical Applications:
- CNC machine tool automatic tool changers
- Robotic arm end-effector positioning
- Semiconductor wafer handling systems
- High-speed sorting mechanisms
- Precision stamping equipment
Installation note:
Ensure proper alignment of knife-edge surfaces with guide rails.
Lubricate with ISO VG32 hydraulic oil during initial installation.
Maximum side load capacity: 35N at full extension.
| Property | Property Value |
|---|---|
| sku | NPM45T63X13FI |
| Output Force | Output Force 4500kg |
| Micro Switch | Without Micro Switch |
| Blade Stroke | 13mm |
| Port Size | PT3/8 |
| Standard Voltage | DC12V |
| Hydraulic Cylinder Bore | 63mm |
