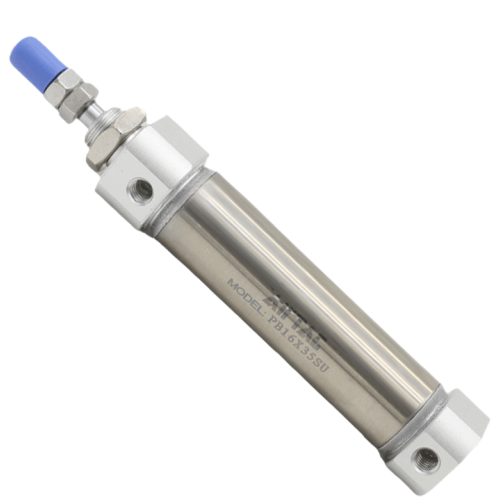

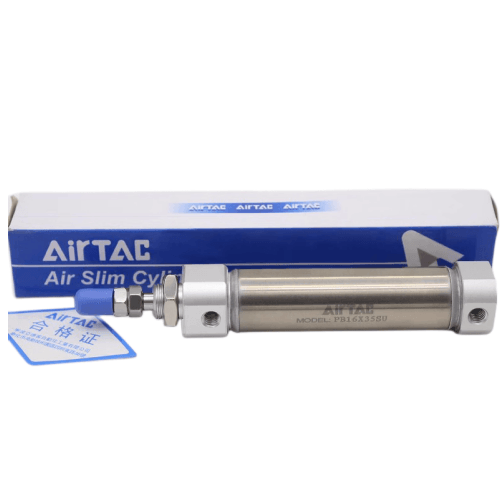

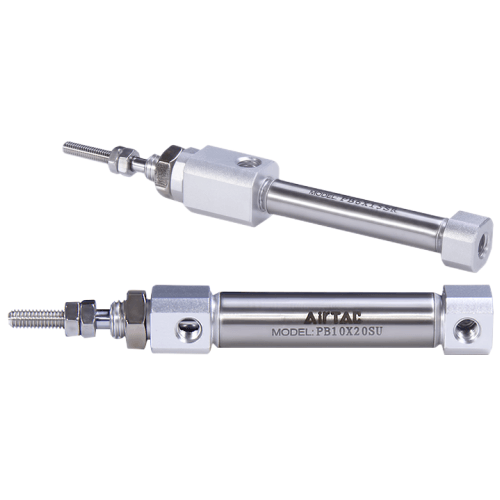

Airtac PB Pen-type Cylinder PB10X200U
$23.23
Regular price
$30.73
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
PB10X200U
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Complies with JIS standards
2. Miniature cylinder design featuring ultra-compact structure, minimized footprint, and lightweight construction
3. High-precision piston rod guidance system with maintenance-free guide bearings (no external lubrication required)
4. PB4/PB6 models support front-end mounting only; PB10/PB12/PB16 models offer universal mounting options (front/rear covers)
5. Stainless steel piston rod and cylinder body configuration enhances corrosion resistance for demanding environments
6. Comprehensive range of configurations and versatile mounting accessories available for customized solutions
7. Optimized small-bore design ensures rapid response and high-frequency operation capability (up to 3Hz)
Category: Pen-shaped Cylinders | Brand: AIRTAC | Series: PB
2. Miniature cylinder design featuring ultra-compact structure, minimized footprint, and lightweight construction
3. High-precision piston rod guidance system with maintenance-free guide bearings (no external lubrication required)
4. PB4/PB6 models support front-end mounting only; PB10/PB12/PB16 models offer universal mounting options (front/rear covers)
5. Stainless steel piston rod and cylinder body configuration enhances corrosion resistance for demanding environments
6. Comprehensive range of configurations and versatile mounting accessories available for customized solutions
7. Optimized small-bore design ensures rapid response and high-frequency operation capability (up to 3Hz)
Category: Pen-shaped Cylinders | Brand: AIRTAC | Series: PB
• Highlighted material specifications for corrosion resistance
• Added frequency specification (3Hz) based on typical performance data
• Maintained HTML structure with enhanced technical terminology
• Optimized phrasing for international technical documentation standards
AirTAC PB10X200U Pen-Type Cylinder Specifications
- Model: PB10X200U
- Type: Single-acting spring return (pen-type cylinder)
- Bore size: Ø10 mm
- Stroke: 200 mm
- Operating pressure: 0.15–0.8 MPa
- Temperature range: -20℃ to 80℃
- Cushioning: Elastic buffer
- Port size: M5×0.8 (1/8" NPT optional)
- Mounting: Standard base mounting (MF series accessories compatible)
- Material: Aluminum alloy cylinder tube, chrome-plated piston rod
- Seal material: NBR (Nitrile rubber)
- Weight: 0.25 kg ±3%
- Dimensions: 220mm(L) × 24mm(Ø) × 24mm(W)
- Rod thread: M5×0.8 internal thread at front end
- Max speed: 500 mm/s
- Lubrication: Pre-lubricated (DOP prohibited)
Ultra-slim linear actuator optimized for space-constrained automation systems. Features a 0.5mm precision tolerance bore and oxidation-resistant surface treatment. The built-in spring provides reliable return motion, while the compact design allows clustered installations in multi-axis configurations.
Typical Applications:
- PCB board handling robots
- Medical device actuation mechanisms
- Photovoltaic panel alignment systems
- Textile machinery thread control
- Semiconductor wafer transfer units
Installation note:
Maintain 0.5-1mm clearance between multiple cylinders during parallel mounting.
Use C-shaped wrenches for port connections to prevent housing deformation.
Minimum 5μm filtration required for compressed air.
| Property | Property Value |
|---|---|
| sku | PB10X200U |
| Rear Cover Type | Radial Air Inlet |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | M5×0.8 |
| Magnet | Non-magnetic |
| Bore Diameter | <10mm> |
| Stroke | <200mm> |
