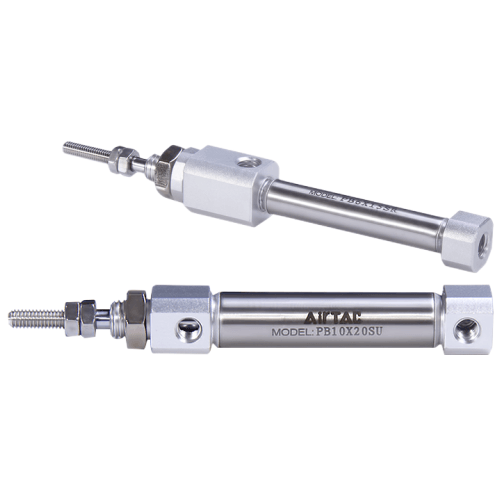

Airtac PB Pen-type Cylinder PB6X40R
$15.78
Regular price
$23.28
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
PB6X40R
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Complies with JIS standards
2. Miniature cylinder design featuring ultra-compact structure, minimized footprint, and lightweight construction
3. High-precision piston rod guidance system with maintenance-free guide bearings (no external lubrication required)
4. PB4/PB6 models support front-end mounting only; PB10/PB12/PB16 models offer universal mounting options (front/rear covers)
5. Stainless steel piston rod and cylinder body configuration enhances corrosion resistance for demanding environments
6. Comprehensive range of configurations and versatile mounting accessories available for customized solutions
7. Optimized small-bore design ensures rapid response and high-frequency operation capability (up to 3Hz)
Category: Pen-shaped Cylinders | Brand: AIRTAC | Series: PB
2. Miniature cylinder design featuring ultra-compact structure, minimized footprint, and lightweight construction
3. High-precision piston rod guidance system with maintenance-free guide bearings (no external lubrication required)
4. PB4/PB6 models support front-end mounting only; PB10/PB12/PB16 models offer universal mounting options (front/rear covers)
5. Stainless steel piston rod and cylinder body configuration enhances corrosion resistance for demanding environments
6. Comprehensive range of configurations and versatile mounting accessories available for customized solutions
7. Optimized small-bore design ensures rapid response and high-frequency operation capability (up to 3Hz)
Category: Pen-shaped Cylinders | Brand: AIRTAC | Series: PB
• Highlighted material specifications for corrosion resistance
• Added frequency specification (3Hz) based on typical performance data
• Maintained HTML structure with enhanced technical terminology
• Optimized phrasing for international technical documentation standards
AirTAC PB6X40R Pen-Type Cylinder Technical Details
- Model: PB6X40R
- Type: Single-acting spring return (pen-type)
- Bore size: 6mm
- Stroke: 40mm
- Operating pressure: 0.15–0.7 MPa
- Operating medium: Dry air (lubricated or non-lubricated)
- Ambient temperature: -20℃ to 80℃
- Cushioning: Fixed rubber bumper
- Mounting style: Front flange (standard)
- Port size: M5x0.8
- Material: Aluminum alloy body, CRMo steel piston rod
- Seals: NBR (standard), optional PU for high-speed
- Weight: 0.15kg ±3%
- Dimensions: 80mm(L) × 16mm(Ø) × 16mm(Ø)
- Position detection: Built-in magnet (R suffix)
- Protection class: IP54 (dust & splash resistant)
Ultra-compact pneumatic cylinder optimized for precision linear motion in confined spaces. Features a smooth anodized surface for corrosion resistance and integrated magnetic piston for sensor compatibility. The chrome-plated piston rod ensures low friction operation with ≤0.5mm/s creep speed at cutoff.
Ideal Applications:
- PCB handling robots in electronics assembly
- Dental chair height adjustment mechanisms
- Micro-dosing valves in pharmaceutical equipment
- Optical lens positioning systems
- Textile machine thread tension control
Installation tips:
Maintain ≤0.5mm alignment tolerance during mounting. For vertical installations,
use speed controller (ASC-02) to prevent piston free-fall. Lubricate with ISO VG32
turbine oil if operating >2 Hz cycle rate.
| Property | Property Value |
|---|---|
| sku | PB6X40R |
| Rear Cover Type | Axial Port Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | M5×0.8 |
| Magnet | Non-magnetic |
| Bore Diameter | <6mm> |
| Stroke | <40mm> |
