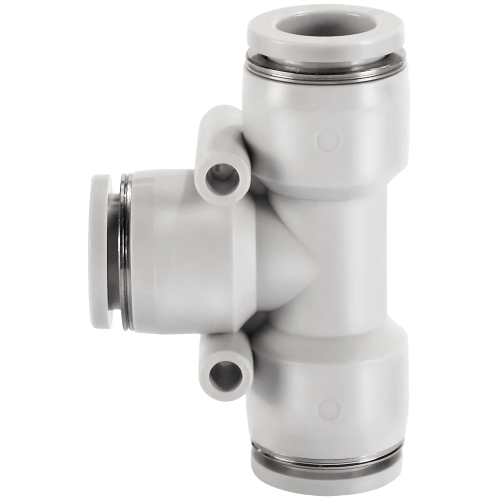

Airtac PE Tee Connector PE6D
2. Available in multiple model specifications with extensive compatibility for various pneumatic systems;
3. Features exceptional flow performance equivalent to the tubing's nominal capacity;
4. Designed with quick-connect functionality for tubing insertion/extraction, ensuring secure, reliable, and durable pneumatic connections.
AirTAC PE6D T-Port Tee Fitting Specifications
- Model: PE6D Series
- Type: Equal tee with T-shaped flow path
- Material: Lead-free brass (CuZn39Pb0.5)
- Thread standard: BSPP (G thread) / NPT optional
- Port sizes: 1/8" (M5×0.8 available for metric version)
- Max working pressure: 1.5 MPa (217 psi)
- Burst pressure: ≥6 MPa (870 psi)
- Temperature range: -20℃ to 120℃ (NBR seals)
- Seal material: Standard NBR, FKM available for high-temp
- Surface treatment: Electroless nickel plating (5-8μm)
- Weight: 28g ±1g
- Dimensions: 32mm(L) × 24mm(W) × 24mm(H)
- Flow coefficient (Cv): 0.45
- Compliance: RoHS 2.0 compliant
Precision-machined brass tee connector featuring a 360° rotatable collar for flexible installation alignment. The internal bore maintains smooth airflow with radiused edges to minimize turbulence. Designed for leak-free performance under cyclic pressure loads, with double O-ring seals at each port. Compatible with pneumatic systems using oil-lubricated or dry air.
- Branching pneumatic circuits in automation cells
- Modular assembly of compressed air distribution
- Instrumentation air supply manifolds
- Medical gas line distribution systems
- Robotic end-effector pneumatic networks
Installation guidelines:
Apply 1.5-2 wraps of PTFE tape on male threads (clockwise winding).
Tighten to 1.2-1.8 N·m torque using backup wrench on hex flats.
Avoid overtightening - maximum rotation after seal contact is 1.5 turns.
- Standard: Ø6mm (1/4") OD nylon/polyurethane tubing
- Alternative: Ø8mm push-in with adapter sleeve (PE6D-01-08)
- Special: Stainless steel braided hose via PE6D-MET series
| Property | Property Value |
|---|---|
| sku | PE6D |
