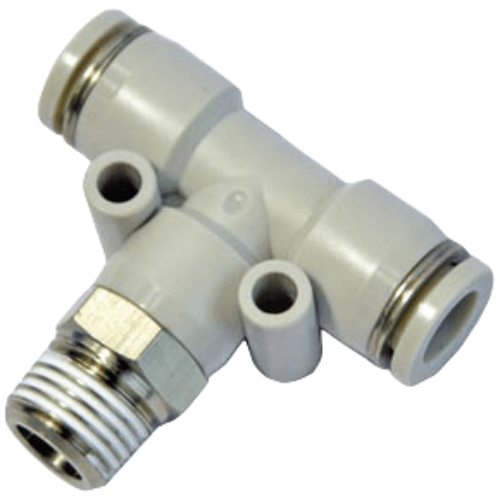

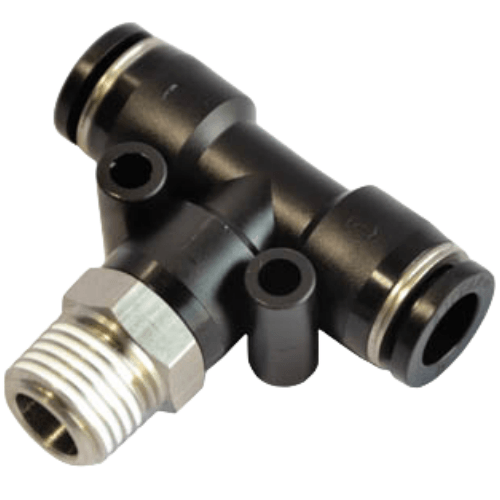

Airtac PEB T-Shaped Straight Thread Tee Connector PEB1204
2. Available in multiple model specifications, widely applicable across pneumatic systems;
3. Delivers excellent flow performance with throughput equivalent to oxygen tubing's inner diameter capacity;
4. Features tool-free push-to-connect fittings for rapid tubing installation, ensuring secure and durable pneumatic connections;
5. Threaded sections incorporate pre-applied sealant (M5 metric threads with integrated sealing washer) to guarantee leak-proof integrity;
6. Nickel-plated brass construction enhances corrosion and contamination resistance, extending service life across expanded application ranges.
AirTAC PEB T-Shaped Straight Thread Tee Connector PEB1204 Technical Details
- Model: PEB1204
- Type: T-shaped 3-way straight thread connector
- Thread standard: Metric (M5×0.8)
- Port configuration: 1/8" BSPP female threads (3 ports)
- Material: Brass CW617N (chrome-plated surface)
- Seal material: NBR (Nitrile rubber) O-rings
- Max working pressure: 1.5 MPa (217 psi)
- Temperature range: -5℃ to 80℃ (with silicone grease)
- Proof pressure: 3.0 MPa
- Burst pressure: ≥6.0 MPa
- Weight: 18.5±0.5g
- Dimensions: 20mm(L) × 20mm(W) × 24mm(H)
- Surface roughness: Ra0.8μm max
- Compliance: RoHS 2.0 compliant
Precision-machined brass tee connector with triple sealing points, featuring wear-resistant chrome plating and 360° rotatable ports for flexible piping arrangements. The 60° conical seat design ensures leak-free connections in high-vibration environments. Compatible with air, water, and non-corrosive gases.
- Pneumatic circuit branching in automation equipment
- Coolant line distribution in CNC machining centers
- Vacuum system junctions for pick-and-place robots
- Modular pneumatic training systems
- Medical gas delivery systems (oxygen/nitrogen lines)
Installation guidelines:
Apply thread sealant only on male threads (PTFE tape recommended).
Tightening torque should not exceed 1.2N·m. Avoid overtightening -
seal engagement occurs at 1.5-2 full turns. Perform pressure test
at 1.2× working pressure after installation.
| Property | Property Value |
|---|---|
| sku | PEB1204 |
