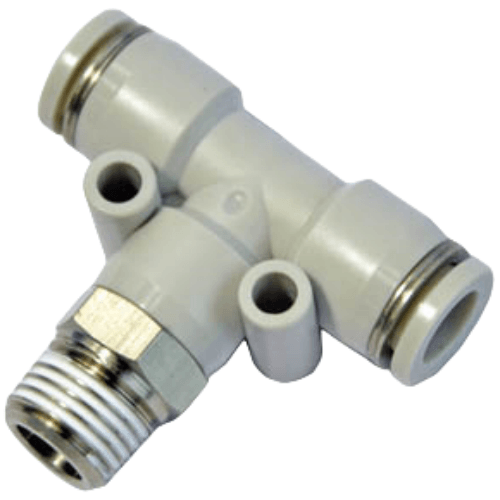

Airtac PEB T-Shaped Straight Thread Tee Connector PEB602D
2. Available in multiple model specifications, widely applicable across pneumatic systems;
3. Delivers excellent flow performance with throughput equivalent to oxygen tubing's inner diameter capacity;
4. Features tool-free push-to-connect fittings for rapid tubing installation, ensuring secure and durable pneumatic connections;
5. Threaded sections incorporate pre-applied sealant (M5 metric threads with integrated sealing washer) to guarantee leak-proof integrity;
6. Nickel-plated brass construction enhances corrosion and contamination resistance, extending service life across expanded application ranges.
AirTAC PEB T-Shaped Straight Thread Tee Connector PEB602D Specifications
- Model: PEB602D
- Type: T-shaped straight thread tee connector (equal distribution)
- Thread standard: Metric (M5×0.8 internal threads on all ports)
- Material: Nickel-plated brass (base), NBR sealing rings
- Pressure range: 0.05–1.5 MPa (7–217 psi)
- Temperature range: -20℃ to 80℃ (non-condensing environment)
- Flow capacity: 200 NL/min @ 0.5 MPa
- Torque resistance: ≤1.5 N·m during installation
- Weight: 45g ±2g
- Dimensions:
- Total length: 70mm (end-to-end across T-axis)
- Body diameter: 12mm
- Port-to-port distance: 25mm (vertical branch)
- Thread engagement depth: 7mm per port
- Certifications: RoHS compliant, ISO 6150-B standard
Precision-machined tee connector with uniform flow distribution, featuring anti-vibration thread design for stable pneumatic circuit connections. Electroplated surface provides corrosion resistance in humid environments. Includes built-in O-rings for zero-leak performance under cyclic pressure.
- Modular pneumatic manifold assemblies
- CNC machine tool air supply distribution
- Robotic actuator control circuits
- Plastic injection molding air lines
- Laboratory pneumatic instrumentation setups
Installation protocol:
Apply 242 Loctite® on male threads before assembly.
Tighten using 8mm open-end wrench with torque ≤1.2 N·m.
Perform pressure test at 1.8 MPa after installation.
| Property | Property Value |
|---|---|
| sku | PEB602D |
