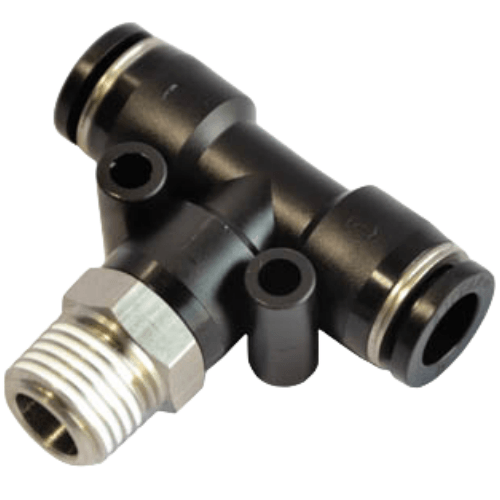

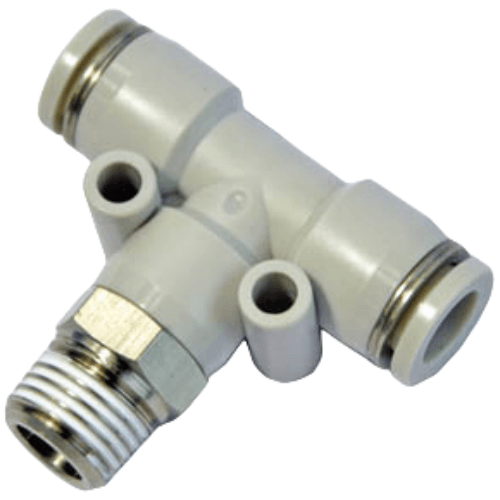

Airtac PEB T-Shaped Straight Thread Tee Connector PEB802-S
2. Available in multiple model specifications, widely applicable across pneumatic systems;
3. Delivers excellent flow performance with throughput equivalent to oxygen tubing's inner diameter capacity;
4. Features tool-free push-to-connect fittings for rapid tubing installation, ensuring secure and durable pneumatic connections;
5. Threaded sections incorporate pre-applied sealant (M5 metric threads with integrated sealing washer) to guarantee leak-proof integrity;
6. Nickel-plated brass construction enhances corrosion and contamination resistance, extending service life across expanded application ranges.
AirTAC PEB T-Port Straight Thread Tee Fitting PEB802-S Specifications
- Model: PEB802-S
- Type: T-shaped straight thread tee connector
- Thread standard: Metric (M5×0.8) / Optional PG7 thread
- Material: Brass with nickel plating
- Operating pressure: 0.5-1.5 MPa
- Temperature range: -5℃ to 80℃
- Proof pressure: 3.0 MPa
- Leakage rate: ≤3.5×10⁻⁸ Pa·m³/s (helium test)
- Surface hardness: HV200-250
- Weight: 12g ±0.5g
- Dimensions: 20mm(L) × 20mm(W) × 20mm(H)
- Port angles: 90° branch connection
- Thread engagement: 5 full turns minimum
Precision-machined brass tee connector with dual sealing surfaces, featuring corrosion-resistant nickel plating for industrial environments. The straight thread design ensures secure sealing without thread locking compounds when used with compatible O-rings. Rated for 100,000+ pressure cycles.
- Pneumatic circuit branching in automation equipment
- Modular manifold systems for CNC machines
- Vacuum line distribution networks
- Instrumentation air supply splitting
- Robotic actuator air routing
Installation protocol:
Apply thread sealant only to male threads (not female ports).
Use backup wrench on hex flats during assembly - maximum torque 1.2N·m.
Compatible with φ4mm and φ6mm tubing via adapters.
