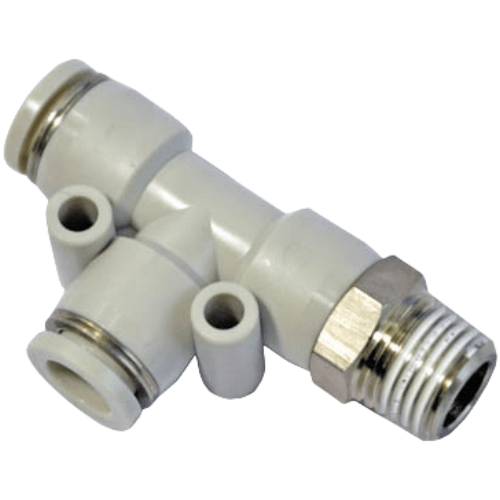

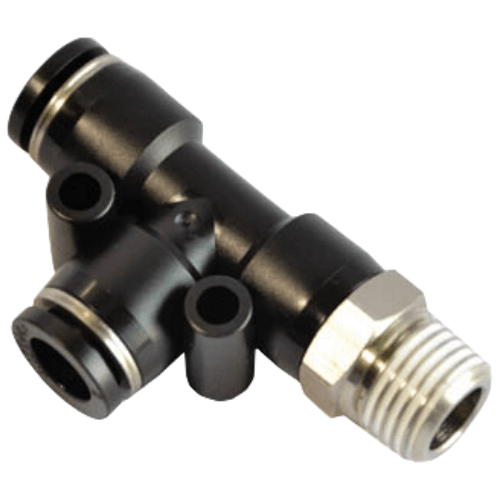

Airtac PED T-Shaped Side Thread Tee Fitting PED1202
$5.65
Regular price
$13.15
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
PED1202
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Constructed from stainless steel 304 material, suitable for copper-free environments;
2. Available in multiple configurations and specifications, widely applicable in various pneumatic systems;
3. Optimized flow characteristics matching tubing ID for equivalent flow capacity;
4. Features tool-free push-in design for efficient tubing connection with secure and durable engagement;
5. Pre-applied thread sealant with M5 metric threads and integrated sealing washers ensure leak-free performance;
6. Nickel-plated brass construction provides superior corrosion resistance and contamination prevention, extending service intervals.
Installation note:
Apply 2-3 wraps of PTFE tape on male threads (AWWA standard).
Use 1.5-2.5Nm torque for side port connections. Center push-in
port requires tube end cut at 90°±2° with burr removal.
2. Available in multiple configurations and specifications, widely applicable in various pneumatic systems;
3. Optimized flow characteristics matching tubing ID for equivalent flow capacity;
4. Features tool-free push-in design for efficient tubing connection with secure and durable engagement;
5. Pre-applied thread sealant with M5 metric threads and integrated sealing washers ensure leak-free performance;
6. Nickel-plated brass construction provides superior corrosion resistance and contamination prevention, extending service intervals.
AirTAC PED T-shaped Side-threaded Tee Connector PED1202 Specifications
- Model: PED1202
- Type: T-shaped brass tee with dual side threads
- Material: Lead-free brass (CuZn39Pb3) with nickel plating
- Thread standards: G1/8 (ISO228-1) on two side ports
- Center port: Push-in fitting for Ø8mm OD tube
- Max working pressure: 1.5 MPa (217 psi)
- Pressure range: 0.05-1.5 MPa
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Seal material: HNBR (Hydrogenated Nitrile) O-rings
- Weight: 48g ±2g
- Dimensions: 32mm(L) × 28mm(W) × 34mm(H)
- Surface roughness: Ra ≤1.6μm
- Vibration resistance: 10-55Hz, 1.5mm amplitude
- Certification: PED 2014/68/EU Category II
Heavy-duty compact tee connector with corrosion-resistant nickel plating, designed for compact pneumatic systems requiring multiple flow paths. Features anti-vibration thread design and bubble-tight sealing. Compatible with ISO 8434-1/DIN 2353 compression fittings.
Typical Applications:
- Modular pneumatic manifolds in robotics
- Air brake system branching in commercial vehicles
- Medical gas line distribution systems
- Plastic injection molding machine air circuits
- Semiconductor manufacturing equipment
Installation note:
Apply 2-3 wraps of PTFE tape on male threads (AWWA standard).
Use 1.5-2.5Nm torque for side port connections. Center push-in
port requires tube end cut at 90°±2° with burr removal.
Fluid Compatibility:
Compressed air (ISO 8573-1:2010 Class 3), inert gases.
Not recommended for steam, acids, or phosphate ester fluids.
| Property | Property Value |
|---|---|
| sku | PED1202 |
