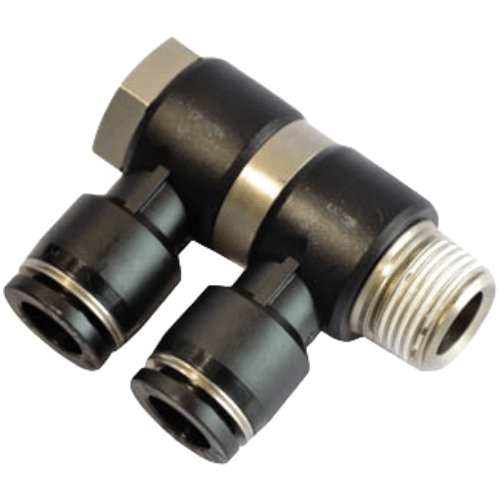

Airtac PHW F Thread Swivel Tee Fitting PHW601
$5.65
Regular price
$13.15
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
PHW601
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC PHW Series F-Type Swivel Tee Connector PHW601 Technical Details
- Model: PHW601 (F-Type Rotatable Tee)
- Thread standard: G1/8 (BSPP parallel thread)
- Material: Nickel-plated brass body
- Seal type: Double O-ring structure
- Rotation angle: 360° continuous swivel
- Operating pressure: 0.3-1.5 MPa
- Temperature range: -5℃ to 80℃
- Seal material: Oil-resistant NBR (Nitrile)
- Surface treatment: Electroless nickel plating (8-12μm)
- Pressure test: 2.25 MPa air tightness
- Weight: 15.2g ±0.5g
- Dimensions: 30mm(L) × 20mm(W) × 20mm(H)
- Compliance: RoHS 2.0 compliant
High-precision rotatable tee connector with dual sealing design, enabling flexible piping adjustments without disassembly. The nickel plating provides corrosion resistance for humid environments. Features 360° swivel capability with torque <0.5N·m for smooth rotation under pressure.
Common Applications:
- Branch line connections in pneumatic automation systems
- Modular test bench setups requiring directional adjustment
- Food processing equipment (FDA-compliant material)
- Medical device pneumatic circuits
- Robotic end-effector air supply distribution
Installation guidelines:
Apply thread sealant to male threads only. Hand-tighten plus 1/4 turn with wrench.
Avoid overtightening beyond 2.5N·m. Rotate joint before system pressurization
for optimal seal alignment. Inspect O-rings every 6 months in continuous service.
| Property | Property Value |
|---|---|
| sku | PHW601 |
