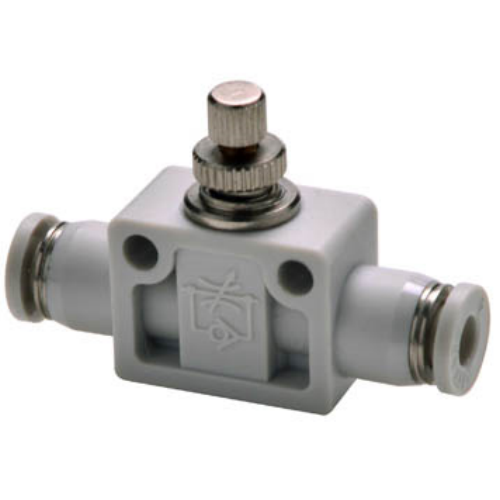

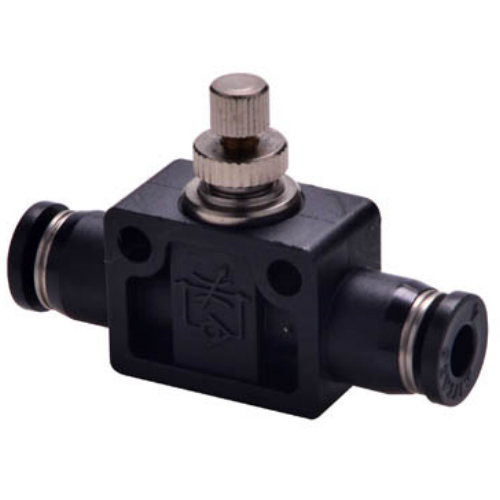

Airtac PSA In-Line Speed Control Valve PSA10D
AirTAC PSA10D Through-Type Speed Control Valve Specifications
- Model: PSA10D
- Type: In-line adjustable flow control valve (with check valve)
- Port size: PT1/8 (G1/8 optional)
- Thread standard: BSPP (Rc)
- Operating pressure: 0.05–0.9 MPa
- Max flow rate: 350 L/min (ANR)
- Flow adjustment range: 5–100% of rated flow
- Effective sectional area: 14 mm²
- Ambient temperature: -5℃ to 60℃ (no freeze)
- Viscosity range: 10–220 cSt
- Body material: Aluminum alloy (anodized)
- Seal material: NBR (Nitrile rubber)
- Weight: 180±5g
- Dimensions: 52mm(L) × 30mm(W) × 40mm(H)
- Mounting torque: 5–7 N·m
- Pressure drop: ≤0.02 MPa at max flow
- Repeat accuracy: ±5% of set flow
Precision bidirectional flow regulator with integrated check valve, featuring micrometer-style adjustment knob for fine flow calibration. The dual-scale indicator (0-10 visual marks + percentage gradation) enables precise repeat settings. Optimized for stable flow control under fluctuating pressures through tapered needle valve design.
- Cylinder speed synchronization in multi-actuator systems
- Pneumatic conveyor belt tension regulation
- Injection molding machine ejection speed control
- Semiconductor wafer handling robotics
- Automated paint spray systems
- Food packaging line actuator timing adjustment
Adjustment protocol: Always depress knob before rotation. Perform final calibration under operating pressure. For viscous fluids (>100cSt), increase lubrication frequency.
| Property | Property Value |
|---|---|
| sku | PSA10D |
