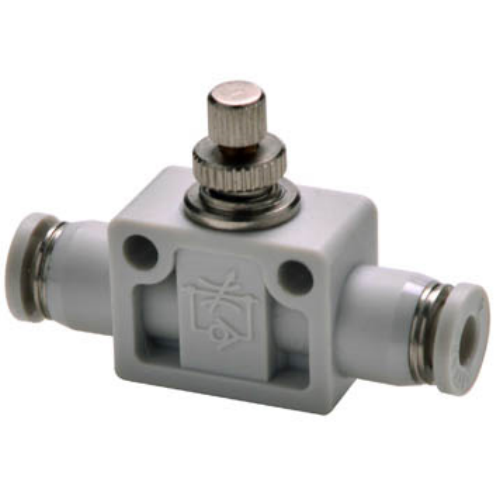

Airtac PSA In-Line Speed Control Valve PSA4-S
AirTAC PSA Series Through-Flow Speed Control Valve PSA4-S Specifications
- Model: PSA4-S
- Type: Uni-directional flow control with bypass check
- Port size: 1/4" BSPP (G1/4)
- Flow capacity: 0-600 L/min (adjustable)
- Operating pressure range: 0.05-1.0 MPa
- Max working pressure: 1.5 MPa
- Body material: Anodized aluminum alloy (surface hardness HV400+)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 80℃ (with silicone seals optional up to 120℃)
- Flow adjustment: 240° rotary knob with locking mechanism
- Weight: 215g ±5%
- Dimensions: 54mm(L) × 36mm(W) × 48mm(H)
- Pressure drop: ≤0.02 MPa at 500 L/min flow
- Repeat accuracy: ±5% of set flow rate
- Vibration resistance: 10-55Hz with 1.5mm amplitude
Precision-engineered throttle valve featuring dual-scale flow indicators (0-10 graduations and percentage markings) for fine adjustment in pneumatic systems. The through-port design minimizes pressure loss while maintaining laminar flow characteristics. Includes integrated dust shield for knob protection.
- Speed synchronization in multi-cylinder systems
- Injection molding machine ejector controls
- Conveyor belt tensioning mechanisms
- Food processing pneumatic actuators
- Semiconductor handling robotics
Installation protocol:
Mount vertically with flow arrow aligned to actuator. Perform initial calibration
at 0.5MPa with full-stroke actuator movement. Lubricated air (ISO VG32) recommended
for extended seal life. Requires monthly knob rotation maintenance to prevent sticking.
| Property | Property Value |
|---|---|
| sku | PSA4-S |
