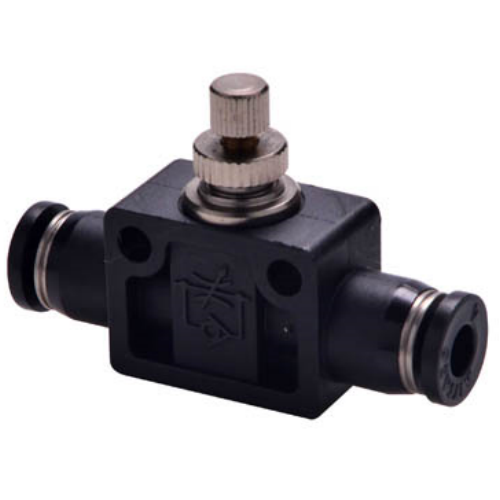

Airtac PSA In-Line Speed Control Valve PSA8
AirTAC PSA8 In-Line Speed Control Valve Specifications
- Model: PSA8 (Metal body version: PSA8M)
- Type: In-line adjustable one-way flow control
- Port size: PT1/8 (G1/8 optional)
- Flow capacity: 0-200 L/min (at 0.5MPa)
- Operating pressure: 0.05-1.0 MPa
- Max pressure: 1.5 MPa
- Body material: PPS (Polyphenylene Sulfide) / Aluminum alloy (PSA8M)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 60℃ (NBR seals)
- Adjustment type: Manual rotary knob with lock nut
- Weight: 185g (Plastic body) / 280g (Metal body)
- Dimensions: 62mm(L) × 34mm(W) × 34mm(H)
- Thread engagement depth: 10mm minimum
- Pressure drop: ≤0.02 MPa at max flow
Bi-directional flow control valve with precision needle adjustment, featuring a dust-resistant knob and integrated check valve. The tapered needle design enables fine flow regulation from complete shut-off to full passage. Metal-body variant (PSA8M) withstands higher mechanical stress in vibration environments.
- Pneumatic cylinder speed regulation in automation lines
- Conveyor belt timing adjustment systems
- Packaging machine clamp force control
- Medical bed actuator speed modulation
- Semiconductor handling equipment
Installation guidelines:
Install vertically with flow arrow matching direction. For cylinder control,
mount directly at cylinder ports. Lubricate with ISO VG32 oil if using non-lubricated air.
Perform initial adjustment at 0.3MPa system pressure.
| Property | Property Value |
|---|---|
| sku | PSA8 |
