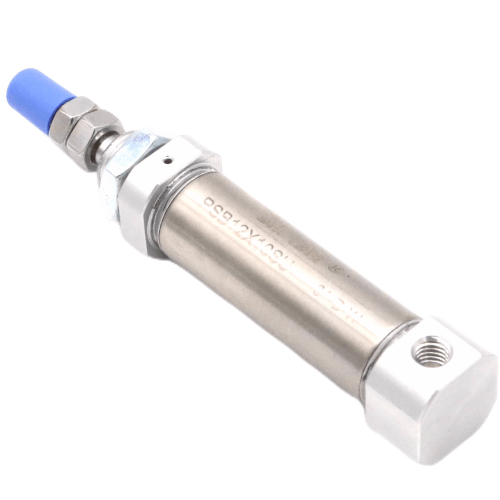

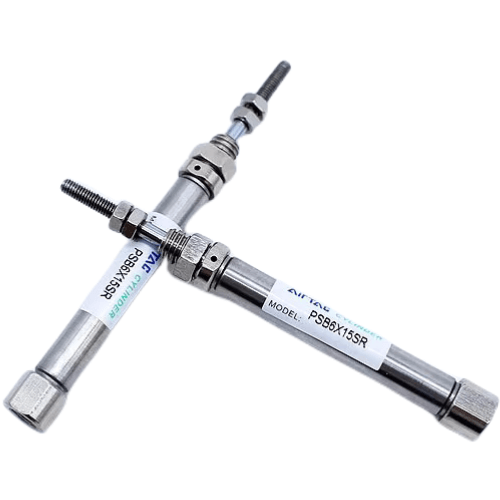

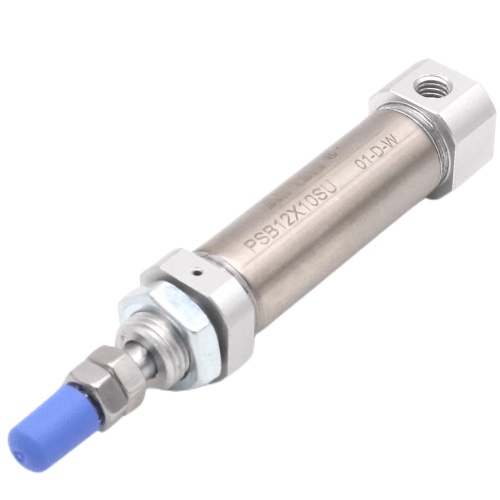

Airtac PSB Single Acting Compact Cylinder PSB6X40R
2. Miniature cylinder design featuring compact structure, reduced footprint, and lightweight construction
3. High-precision piston rod guidance with maintenance-free self-lubricating guide bearings
4. Front-end mounting only for PB4/PB6 models; Both front and rear-end mounting options available for PB10/PB12/PB16
5. Stainless steel piston rod and cylinder body ensure corrosion resistance in moderately aggressive environments
6. Multiple bore sizes and configurable mounting accessories for customized solutions
7. Optimized for high-frequency operations with rapid response characteristics through minimized bore dimensions
Category: Rod-type Cylinders | Brand: AIRTAC | Series: PSB
AirTAC PSB Single-Acting Pen-Type Cylinder PSB6X40R Specifications
- Model: PSB6X40R
- Type: Single-acting, spring return
- Bore size: 6mm
- Stroke: 40mm (±1mm)
- Operating pressure: 0.05–0.8 MPa
- Port size: M5 (1/8" NPT optional)
- Weight: 48g ±2g
- Dimensions: 82mm(L) × 20mm(W) × 20mm(H)
- Cylinder material: Anodized aluminum alloy
- Piston rod material: Stainless steel (SUS304)
- Seal material: NBR (nitrile rubber)
- Temperature range: -20℃ to 80℃
- Buffer type: Rubber cushion
- Max speed: 500mm/s
- Mounting style: Basic type (standard mounting holes on body)
- Durability: 5,000km (tested under ISO standard)
Ultra-compact pen-shaped cylinder optimized for precision linear motion in confined spaces. Features a chrome-plated piston rod for corrosion resistance and integrated mounting slots for flexible installation. Requires 5μm filtered air (ISO8573-1 class 3) with lubrication (ISO VG32 recommended).
- PCB handling robots in electronics manufacturing
- Micro-dispensing systems for medical devices
- Precision clamping in watchmaking machinery
- Automated lens positioning in optical equipment
- Compact sorting mechanisms in packaging lines
Operation note:
For optimal performance, maintain 0.3-0.5 MPa working pressure during continuous operation.
Lubricate every 3 months under normal use (monthly in high-cycle applications). Avoid lateral
loads exceeding 1.5N to prevent piston rod deflection.
| Property | Property Value |
|---|---|
| sku | PSB6X40R |
| Rear Cover Type | Axial Port Type |
| Mounting Type | Without Mounting Accessories |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-800mm/s |
| Port Size | M5×0.8 |
| Magnet | Non-magnetic |
| Bore Diameter | <6mm> |
| Stroke | <40mm> |
