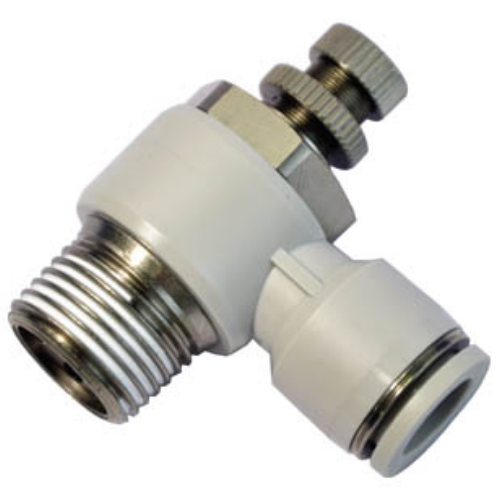

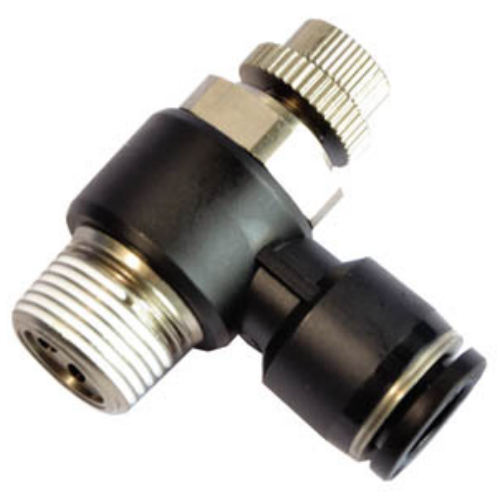

Airtac PSL Throttle Speed Control Fitting PSL1003A-S
$26.74
Regular price
$34.24
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
PSL1003A-S
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Compact dimensions and lightweight design minimize installation space requirements, expanding application versatility;
2、Precisely controls operational speed of pneumatic actuators and pressure signal transmission efficiency;
3、Superior flow characteristics with high sensitivity and precise micro-adjustment capabilities;
4、Exhaust throttle and intake throttle configurations available for compatibility with diverse actuator models;
5、Nickel-plated brass body provides enhanced corrosion resistance and contamination prevention;
6、Adjustment lever features an anti-drop structural design;
7、Integrated PT thread adhesive ensures leak-proof sealing at threaded connections;
Category: L-Type Throttle Valve Fittings | Brand: AirTAC | Series: PSL
Installation note:
Install vertically with flow arrow aligned. Use PTFE tape on threads.
For liquid applications, install filter upstream (25μm minimum).
Adjust while monitoring system response - full closure requires
3.5±0.5 rotations from open position.
2、Precisely controls operational speed of pneumatic actuators and pressure signal transmission efficiency;
3、Superior flow characteristics with high sensitivity and precise micro-adjustment capabilities;
4、Exhaust throttle and intake throttle configurations available for compatibility with diverse actuator models;
5、Nickel-plated brass body provides enhanced corrosion resistance and contamination prevention;
6、Adjustment lever features an anti-drop structural design;
7、Integrated PT thread adhesive ensures leak-proof sealing at threaded connections;
Category: L-Type Throttle Valve Fittings | Brand: AirTAC | Series: PSL
AirTAC PSL Throttle Speed Regulating Connector PSL1003A-S Specifications
- Model: PSL1003A-S
- Type: One-way throttle with check valve (adjustable)
- Thread size: M5×0.8 (male thread both ends)
- Flow rate range: 0.05-5 L/min (air), 0.02-2 L/min (liquid)
- Operating pressure: 0.05-1.0 MPa
- Temperature range: -5℃ to 60℃ (NBR seals)
- Body material: Nickel-plated brass
- Knob material: PPS resin with scale markings
- Weight: 48g ±2g
- Dimensions: 25mm(L) × 20mm(W) × 30mm(H)
- Pressure drop: ≤0.02 MPa at max flow
- Repeat accuracy: ±10% of set flow rate
Precision bidirectional flow control device with integrated check valve, featuring 270° rotary adjustment for fine-tuning. The corrosion-resistant nickel plating ensures durability in humid environments. Calibrated flow scale enables repeatable settings across pneumatic systems.
Typical Applications:
- Cylinder speed synchronization in automation lines
- Pneumatic gripper actuation control
- Vacuum generator flow regulation
- Medical device pneumatic circuits
- Packaging machine air cushion adjustment
Installation note:
Install vertically with flow arrow aligned. Use PTFE tape on threads.
For liquid applications, install filter upstream (25μm minimum).
Adjust while monitoring system response - full closure requires
3.5±0.5 rotations from open position.
