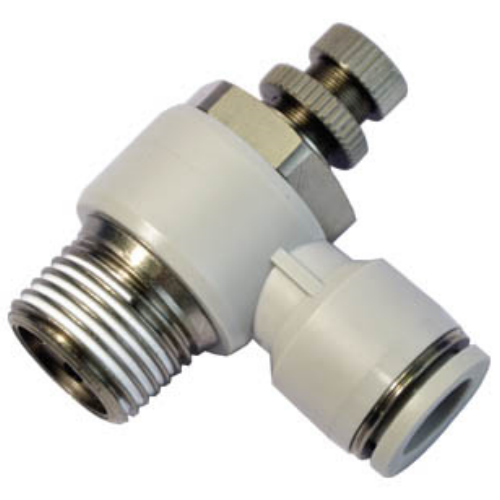

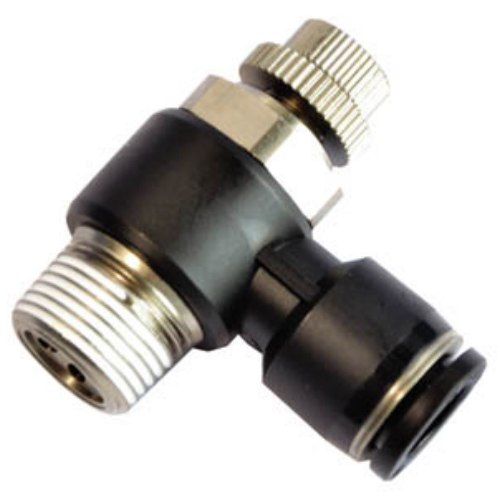

Airtac PSL Throttle Speed Control Fitting PSL401BD
$5.86
Regular price
$13.36
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
PSL401BD
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Compact dimensions and lightweight design minimize installation space requirements, expanding application versatility;
2、Precisely controls operational speed of pneumatic actuators and pressure signal transmission efficiency;
3、Superior flow characteristics with high sensitivity and precise micro-adjustment capabilities;
4、Exhaust throttle and intake throttle configurations available for compatibility with diverse actuator models;
5、Nickel-plated brass body provides enhanced corrosion resistance and contamination prevention;
6、Adjustment lever features an anti-drop structural design;
7、Integrated PT thread adhesive ensures leak-proof sealing at threaded connections;
Category: L-Type Throttle Valve Fittings | Brand: AirTAC | Series: PSL
Installation guidelines:
Install vertically with flow arrow aligned to system direction.
Use 40μm filtered air to prevent orifice clogging.
For stable flow control, maintain upstream pressure fluctuations within ±10% of set value.
2、Precisely controls operational speed of pneumatic actuators and pressure signal transmission efficiency;
3、Superior flow characteristics with high sensitivity and precise micro-adjustment capabilities;
4、Exhaust throttle and intake throttle configurations available for compatibility with diverse actuator models;
5、Nickel-plated brass body provides enhanced corrosion resistance and contamination prevention;
6、Adjustment lever features an anti-drop structural design;
7、Integrated PT thread adhesive ensures leak-proof sealing at threaded connections;
Category: L-Type Throttle Valve Fittings | Brand: AirTAC | Series: PSL
AirTAC PSL401BD Throttle Speed Control Fitting Specifications
- Model: PSL401BD
- Type: Bidirectional adjustable throttle valve with locking mechanism
- Port size: PT1/8 (G1/8 equivalent)
- Thread standard: BSPP (parallel thread)
- Operating pressure: 0.05–0.9 MPa
- Max flow rate: 350 L/min (ANR)
- Flow adjustment range: 20-100% of rated flow
- Body material: Brass (C3604)
- Seal material: NBR (nitrile rubber)
- Temperature range: -20℃ to 80℃
- Weight: 120g ±5%
- Dimensions: 40mm(L) × 25mm(W) × 25mm(H)
- Surface treatment: Electroplated nickel (5-8μm thickness)
- Torque requirement: 0.3-0.5 N·m for adjustment knob
Precision throttle valve featuring dual-direction flow control with micrometer-style graduated knob (100 divisions). Includes anti-vibration locking collar and integrated O-ring for leak-free connections. The brass body ensures corrosion resistance in humid environments.
Typical Applications:
- Cylinder speed regulation in automated assembly lines
- Pneumatic conveyor system flow balancing
- Vacuum generator airflow adjustment
- Medical equipment pneumatic circuit tuning
- Packaging machine actuator control
Installation guidelines:
Install vertically with flow arrow aligned to system direction.
Use 40μm filtered air to prevent orifice clogging.
For stable flow control, maintain upstream pressure fluctuations within ±10% of set value.
| Property | Property Value |
|---|---|
| sku | PSL401BD |
