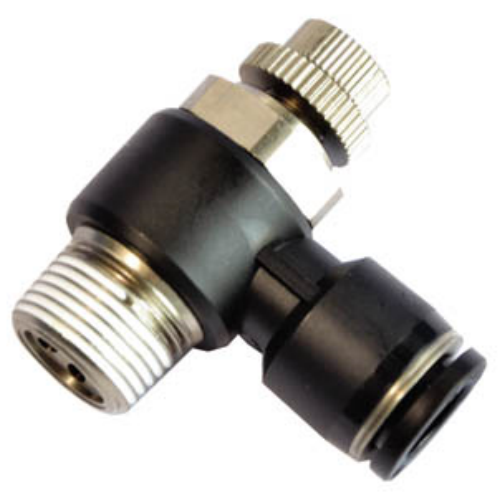

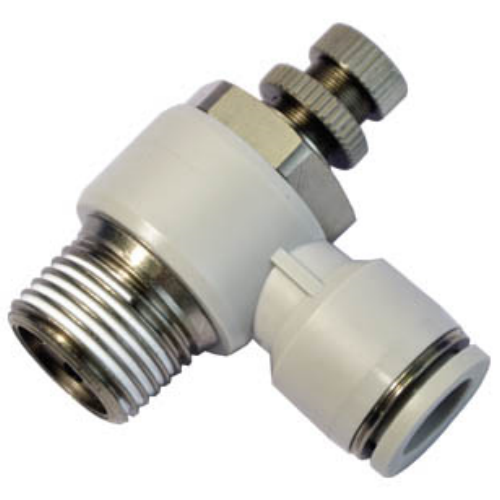

Airtac PSL Throttle Speed Control Fitting PSL601B
2、Precisely controls operational speed of pneumatic actuators and pressure signal transmission efficiency;
3、Superior flow characteristics with high sensitivity and precise micro-adjustment capabilities;
4、Exhaust throttle and intake throttle configurations available for compatibility with diverse actuator models;
5、Nickel-plated brass body provides enhanced corrosion resistance and contamination prevention;
6、Adjustment lever features an anti-drop structural design;
7、Integrated PT thread adhesive ensures leak-proof sealing at threaded connections;
Category: L-Type Throttle Valve Fittings | Brand: AirTAC | Series: PSL
AirTAC PSL Throttle Speed Controller PSL601B Technical Details
- Model: PSL601B
- Type: One-way throttle valve with check valve
- Port size: PT1/8 (G1/8 optional)
- Body material: Nickel-plated brass
- Seal material: NBR/FKM (standard/viton)
- Operating pressure: 0.05–0.8 MPa
- Temperature range: -5℃ to 60℃
- Flow regulation range: 0.1–10 L/min (air)
- Adjustment type: Manual rotary control
- Thread engagement: 8±1 turns
- Weight: 42±2g
- Dimensions: 25mm(L) × 18mm(W) × 18mm(H)
- Pressure drop: ≤0.02 MPa at max flow
- Leakage: ≤20 cm³/min (under 0.5 MPa)
Precision bidirectional flow controller with integrated check valve functionality, featuring 360° rotatable collar for tool-free adjustment. The chrome-plated brass construction ensures corrosion resistance in humid environments. Calibrated scale enables repeatable flow settings with ±5% accuracy.
- Cylinder speed regulation in automation lines
- Pneumatic gripper actuation timing control
- Vacuum generator flow limitation
- Medical bed pneumatic system adjustments
- Packaging machine air cushion damping
Installation guidance:
Install vertically with arrow marking aligned to main flow direction.
For meter-out control, reverse installation direction. Lubricate with ISO VG32 oil
if used in high-cycle applications (>1 million operations).
| Property | Property Value |
|---|---|
| sku | PSL601B |
