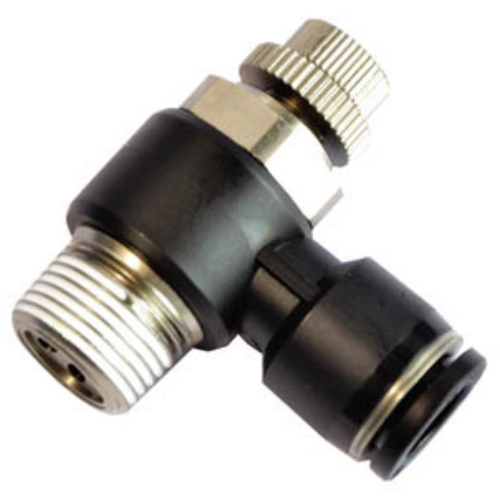

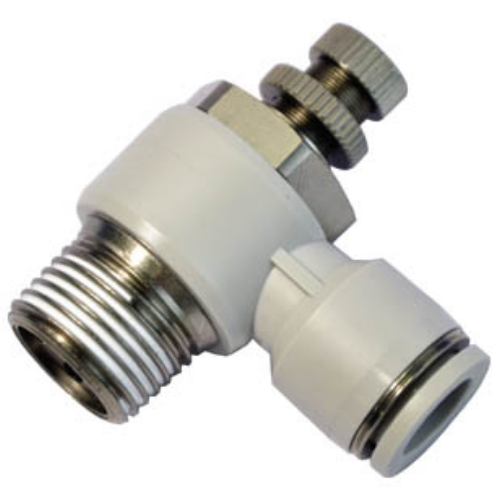

Airtac PSL Throttle Speed Control Fitting PSL803BD
$8.60
Regular price
$16.10
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
PSL803BD
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Compact dimensions and lightweight design minimize installation space requirements, expanding application versatility;
2、Precisely controls operational speed of pneumatic actuators and pressure signal transmission efficiency;
3、Superior flow characteristics with high sensitivity and precise micro-adjustment capabilities;
4、Exhaust throttle and intake throttle configurations available for compatibility with diverse actuator models;
5、Nickel-plated brass body provides enhanced corrosion resistance and contamination prevention;
6、Adjustment lever features an anti-drop structural design;
7、Integrated PT thread adhesive ensures leak-proof sealing at threaded connections;
Category: L-Type Throttle Valve Fittings | Brand: AirTAC | Series: PSL
Installation note:
Install vertically with flow arrow matching system direction.
Perform initial calibration at 0.3 MPa pressure.
Lubricate threads with PTFE tape for optimal sealing.
2、Precisely controls operational speed of pneumatic actuators and pressure signal transmission efficiency;
3、Superior flow characteristics with high sensitivity and precise micro-adjustment capabilities;
4、Exhaust throttle and intake throttle configurations available for compatibility with diverse actuator models;
5、Nickel-plated brass body provides enhanced corrosion resistance and contamination prevention;
6、Adjustment lever features an anti-drop structural design;
7、Integrated PT thread adhesive ensures leak-proof sealing at threaded connections;
Category: L-Type Throttle Valve Fittings | Brand: AirTAC | Series: PSL
AirTAC PSL Throttle Speed Control Connector PSL803BD Specifications
- Model: PSL803BD
- Type: One-way throttle valve with check function
- Port size: PT1/8 (G1/8 equivalent)
- Thread material: Brass with nickel plating
- Seal material: NBR (Nitrile rubber)
- Operating pressure: 0.05–0.8 MPa
- Temperature range: -5℃ to 80℃
- Flow adjustment range: 50–800 L/min (ANR)
- Rotation angle: 300°±10° adjustment range
- Weight: 72g ±2g
- Dimensions: 38mm(L) × 28mm(W) × 28mm(H)
- Viscosity resistance: Compatible with ISO VG32 hydraulic oil
- Installation torque: 3.5–4.5 N·m
Precision bidirectional flow control valve with locking nut for stable adjustment retention. Features corrosion-resistant construction and ergonomic knurled knob for tool-free adjustment. Integrated check valve prevents reverse flow interference.
Typical Applications:
- Cylinder speed regulation in automation lines
- Pneumatic actuator timing control
- Air tool RPM adjustment systems
- Conveyor synchronization mechanisms
- Medical bed pneumatic positioning
Installation note:
Install vertically with flow arrow matching system direction.
Perform initial calibration at 0.3 MPa pressure.
Lubricate threads with PTFE tape for optimal sealing.
Maintenance:
Clean monthly with non-corrosive solvent.
Replace O-rings every 500,000 cycles or 2 years.
Avoid silicone-based lubricants to prevent seal degradation.
| Property | Property Value |
|---|---|
| sku | PSL803BD |
