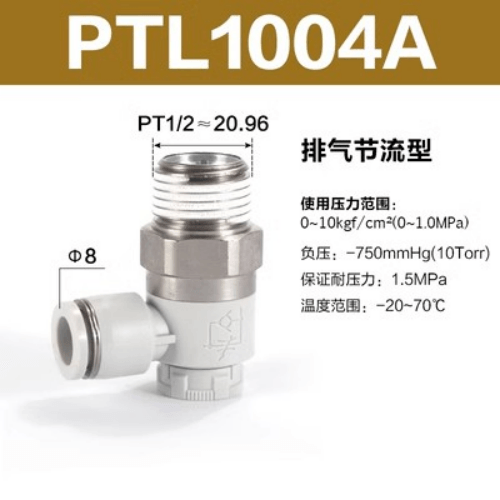

Airtac PTL Exhaust Throttle Type Speed Control Valve PTL1004A
2、Effectively regulates operational speed of pneumatic actuators and transmission of air pressure signals;
3、Features intuitive push-pull adjustment with superior control responsiveness;
4、Quick-adjust mechanism with precise flow control calibration;
5、Excellent flow characteristics with high sensitivity and fine-tuning capability;
6、Switchable exhaust throttle and intake throttle configurations compatible with various pneumatic actuators;
7、Nickel-plated brass surface enhances corrosion resistance and contamination prevention;
8、Integrated PT seal ring in threaded ports ensures leak-proof connection integrity.
AirTAC PTL1004A Exhaust Throttle Type Speed Control Valve Specifications
- Model: PTL1004A
- Type: Exhaust throttle flow control valve (bidirectional adjustment)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.05–0.9 MPa
- Flow rate range: 0.6–120 L/min
- Body material: Brass with nickel plating
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃
- Mounting type: Panel/pipe mount
- Weight: 215g ±5g
- Dimensions: 58mm(L) × 32mm(W) × 38mm(H)
- Adjustment knob torque: 0.15–0.3 N·m
- Pressure drop: ≤0.02 MPa at max flow
Precision throttle valve with graduated scale (0-5) for repeatable flow settings. Features dual-purpose exhaust/flow control with locking nut to prevent accidental adjustment. The anti-backlash mechanism ensures stable flow rates under vibration. Requires 5μm filtered air and regular lubrication of adjustment screw.
- Cylinder speed regulation in automation lines
- Pneumatic conveyor timing control
- Tooling fixture actuation systems
- Packaging machine end-effector positioning
- Medical device pneumatic braking systems
Installation note:
Mount vertically with arrow aligned to airflow direction. For exhaust throttling,
install between cylinder and directional valve. Use thread sealant on male ports
and torque to 12-15 N·m. Avoid overtightening adjustment knob beyond scale limits.
