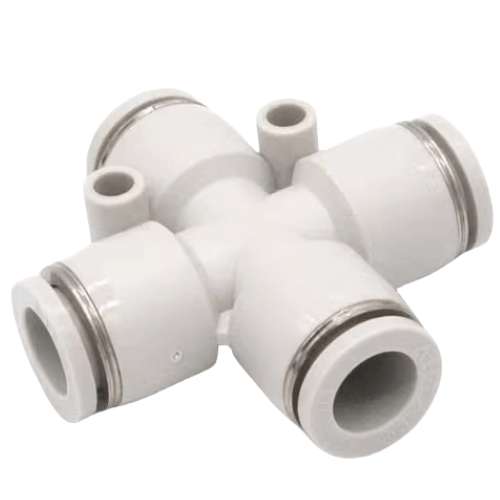

Airtac PZ Cross Fitting PZ10D
2. Available in multiple models and specifications to meet diverse application requirements, compatible with a wide range of pneumatic systems;
3. Optimized flow capacity ensures unrestricted flow equivalent to the inner diameter of connected tubing;
4. Push-to-connect design enables simple and rapid tubing installation, while maintaining secure, reliable, and durable tubing connections.
AirTAC PZ Cross Fitting PZ10D Technical Specifications
- Model: PZ10D
- Type: 4-way cross connector (straight through)
- Body material: Nickel-plated brass (C3604)
- Port configuration: 4 × PT1/8 (G1/8) female threads
- Pressure range: 0.05–1.5 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Surface treatment: Electrolytic polishing
- Proof pressure: 3.0 MPa
- Burst pressure: ≥6.0 MPa
- Weight: 28.5±0.5g
- Dimensions: 25mm(L) × 25mm(W) × 25mm(H)
- Thread engagement depth: 8mm per port
- Flow coefficient (Cv): 0.45
- Vibration resistance: 10–55Hz, 1.5mm amplitude
Precision-machined cross connector featuring 360° rotatable ports for flexible piping layouts. The electroless nickel coating provides exceptional corrosion resistance against water vapor and mild chemicals. Designed with internal flow channels optimized for minimal pressure drop (ΔP ≤0.02MPa @1.0MPa).
- Pneumatic circuit distribution in SMC-based systems
- Multi-axis robotic gripper air supply networks
- Plastic injection molding machine air manifolds
- Automated packaging line synchronization circuits
- Medical device pneumatic control junctions
Installation protocol:
Apply 25–35 N·m torque during assembly. Use thread sealant (LOCTITE 5452 recommended)
only on male threads. Avoid overtightening – maximum allowable deformation ≤0.15mm.
Perform pressure test at 1.2× working pressure after installation.
| Property | Property Value |
|---|---|
| sku | PZ10D |
