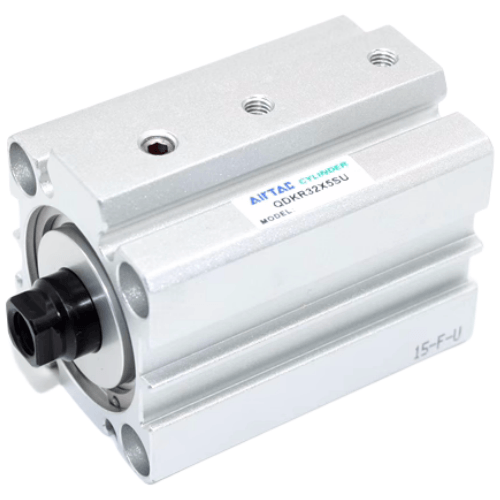

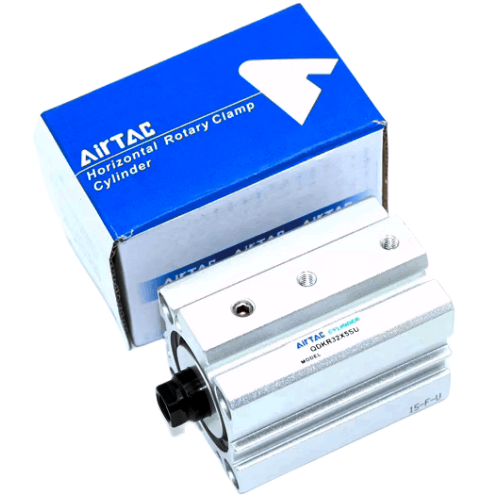

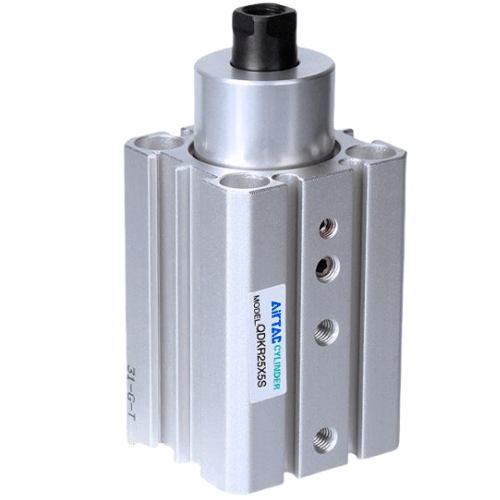

Airtac QDKR Pivoting Clamping Cylinder QDKR20X5-S-U
1. Achieves rotational motion at identical elevation level with zero rotational stroke, offering enhanced spatial efficiency compared to QCK series in confined environments;
2. Versatile mounting configurations with optional front cover boss-type or flat-type designs;
3. Dual-pin rotational guide groove mechanism ensures smooth operation and exceptional repeat positioning accuracy (±0.5°);
4. Integrated sensor mounting grooves on cylinder periphery enable direct installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKR
AirTAC QDKR20X5-S-U Plane Rotary Clamping Cylinder Specifications
- Model: QDKR20X5-S-U
- Type: Double-acting rotary clamp cylinder
- Bore size: Ø20mm
- Stroke: 5mm
- Operating pressure: 0.1–0.9 MPa
- Torque output: 3.5 N·m (at 0.5 MPa)
- Rotation angle: 90°±5° (standard)
- Mounting style: U-shaped base with 4x M5 threaded holes
- Port size: M5×0.8 (Rc1/8 adaptor included)
- Cushioning: Adjustable rubber buffer
- Temperature range: -10℃ to 70℃
- Seal material: HNBR (Hydrogenated Nitrile)
- Protection rating: IP54
- Weight: 0.82 kg (including accessories)
- Dimensions:
- Body length: 86mm
- Total width: 40mm
- Height (with bracket): 62mm
- Mounting base: 25×25mm square
Precision rotary clamping cylinder with integrated wedge mechanism for 90° rotational locking. Features anti-vibration design with hardened guide rods and wear-resistant bushings. The corrosion-resistant aluminum alloy body includes a status detection slot for sensor mounting. Requires filtered air (40μm) with ISO VG32 hydraulic oil mist lubrication.
- CNC machine tool fixture positioning
- Automated welding jig locking systems
- PCB assembly line component retention
- Robotic end-effector tool changing mechanisms
- Medical device manufacturing alignment fixtures
Operation tip:
Maintain 0.3-0.6 MPa working pressure for optimal torque-to-wear ratio.
Lubricate pivot points monthly with MIL-PRF-6085 grease. Avoid side loads exceeding 50N
during clamping operations.
| Property | Property Value |
|---|---|
| sku | QDKR20X5-S-U |
| Front Cover Type | Flat Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <20mm> |
| Direction Code | Right-hand |
