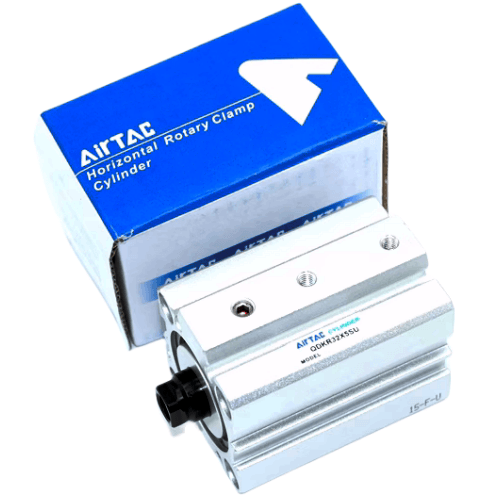

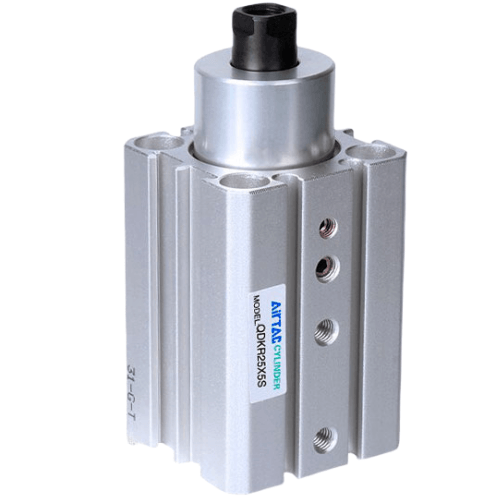

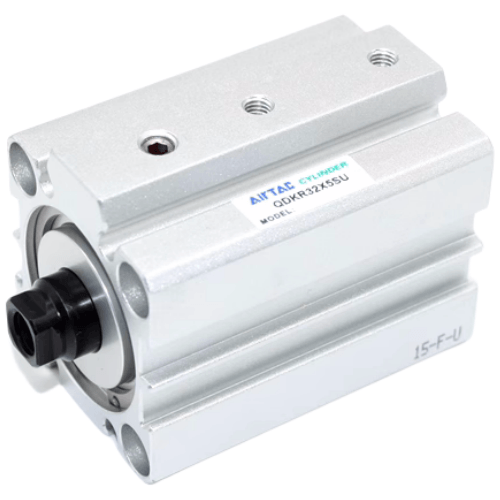

Airtac QDKR Pivoting Clamping Cylinder QDKR25X5-S-U
1. Achieves rotational motion at identical elevation level with zero rotational stroke, offering enhanced spatial efficiency compared to QCK series in confined environments;
2. Versatile mounting configurations with optional front cover boss-type or flat-type designs;
3. Dual-pin rotational guide groove mechanism ensures smooth operation and exceptional repeat positioning accuracy (±0.5°);
4. Integrated sensor mounting grooves on cylinder periphery enable direct installation without auxiliary accessories.
Category: Rotary Clamping Cylinders | Brand: AirTAC | Series: QDKR
AirTAC QDKR25X5-S-U Plane Rotary Clamping Cylinder Specifications
- Model: QDKR25X5-S-U
- Type: Double-acting plane rotary clamping cylinder
- Bore size: Ø25mm
- Stroke: 5mm
- Rotation angle: 90°±5°
- Torque output: 1.5 N·m (at 0.63MPa)
- Operating pressure: 0.15–0.8 MPa
- Temperature range: -10℃ to 70℃
- Port size: M5×0.8
- Mounting style: Standard base mounting with 4×M5 threaded holes
- Piston material: Aluminum alloy hard anodized
- Rod material: Stainless steel (SUS304)
- Seal type: NBR wear-resistant seals
- Weight: 0.68 kg
- Dimensions: 100mm(L) × 60mm(W) × 25mm(H)
- Protection class: IP54 (standard dust/water resistance)
- Repeat positioning accuracy: ±0.5°
Precision rotary clamping cylinder with integrated mechanical lock mechanism, featuring dual pneumatic ports for bidirectional rotation control. The hardened guide rail structure ensures stable rotational accuracy under lateral loads. Includes auto-lubrication grooves for extended maintenance intervals.
- CNC machine tool fixture positioning
- Automated welding station workpiece clamping
- PCB assembly flip mechanisms
- Robotic end-effector tool switching
- Precision die casting mold locking
Operation tip:
Maintain air supply pressure above 0.3MPa during rotation phase.
Lubricate pivot points with ISO VG32 hydraulic oil every 500,000 cycles.
Avoid side impact forces exceeding 50N during clamping operations.
| Property | Property Value |
|---|---|
| sku | QDKR25X5-S-U |
| Front Cover Type | Flat Type |
| Clamping Stroke | <5mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20 to 70°C Rotation Angle: 90° |
| Port Size | M5×0.8 |
| Magnet | S-Magnetic |
| Bore Diameter | <25 mm> |
| Direction Code | Right-hand |
