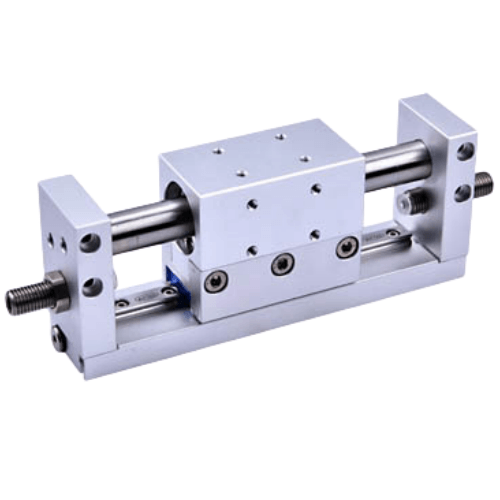

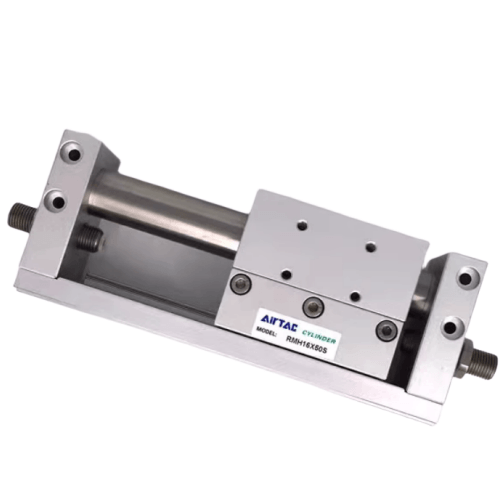

Airtac RMH Magnetic Coupling Rodless Cylinder RMH25X250S
$421.04
Regular price
$428.54
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
RMH25X250S
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Magnetic coupling rodless cylinder design eliminates mechanical connection between piston and slider, delivering exceptional sealing performance;
2. Piston motion is transmitted to external slider via magnetic coupling force, eliminating piston rod requirements. Requires 30% less installation space than standard cylinders while achieving 50% longer stroke lengths;
3. Integrated adjustable cushioning with fixed buffer devices at both ends ensures smooth direction reversal with near-zero impact, effectively preventing mechanical wear. Optional external hydraulic shock absorbers available for enhanced damping performance;
4. Isolated piston chamber design creates physical separation from slider mechanism, blocking particulate contamination to extend operational lifespan;
5. Precision-guided rail system ensures ±0.1mm repeat positioning accuracy with anti-rotation stability, supporting radial loads up to 650N.
Category: Rodless Cylinders | Brand: Airtac | Series: RMH
Installation guidelines:
Maintain ≤0.2mm/m alignment tolerance during mounting. Lubricate with ISO VG32 turbine oil
every 3,000km of travel. Avoid lateral loads exceeding 15% of axial capacity.
2. Piston motion is transmitted to external slider via magnetic coupling force, eliminating piston rod requirements. Requires 30% less installation space than standard cylinders while achieving 50% longer stroke lengths;
3. Integrated adjustable cushioning with fixed buffer devices at both ends ensures smooth direction reversal with near-zero impact, effectively preventing mechanical wear. Optional external hydraulic shock absorbers available for enhanced damping performance;
4. Isolated piston chamber design creates physical separation from slider mechanism, blocking particulate contamination to extend operational lifespan;
5. Precision-guided rail system ensures ±0.1mm repeat positioning accuracy with anti-rotation stability, supporting radial loads up to 650N.
Category: Rodless Cylinders | Brand: Airtac | Series: RMH
AirTAC RMH Magnetic Coupled Rodless Cylinder RMH25X250S Specifications
- Model: RMH25X250S
- Type: Magnetic coupled rodless cylinder (non-rotating design)
- Bore size: 25 mm
- Stroke length: 250 mm ±1.5mm
- Operating pressure: 0.1–0.8 MPa
- Max speed: 0.1–1.5 m/s (with cushioning)
- Load capacity: 28.3 kgf at 0.5 MPa (axial direction)
- Ambient temperature: -20℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Piston material: Anodized aluminum alloy
- Magnetic coupling force: ≥150 N
- Repeat positioning accuracy: ±0.5 mm
- Weight: 1.8 kg (excluding accessories)
- Dimensions: 400mm(L) × 50mm(W) × 50mm(H)
- Mounting options: Horizontal/Vertical/Ceiling
- Protection class: IP54 (standard), IP67 (optional wiper kit)
- Cushion type: Adjustable pneumatic cushion
- Load rate: ≤80% of max capacity for continuous operation
High-precision rodless cylinder utilizing magnetic coupling technology to eliminate external leakage risks. Features integrated T-slot for sensor mounting and dual anti-rotation guides for enhanced stability. The compact profile enables space-saving installations in linear motion systems requiring medium thrust and positional accuracy.
Typical Applications:
- Pick-and-place automation in SMT assembly lines
- Glass panel transfer systems
- Pharmaceutical blister packaging machines
- Automated optical inspection (AOI) equipment
- Cleanroom material handling
Installation guidelines:
Maintain ≤0.2mm/m alignment tolerance during mounting. Lubricate with ISO VG32 turbine oil
every 3,000km of travel. Avoid lateral loads exceeding 15% of axial capacity.
| Property | Property Value |
|---|---|
| sku | RMH25X250S |
| Safety Holding Force N | 345mm |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20-70°C Speed Range: 50-400mm/s |
| Port Size | PT1/8 |
| Magnet | S-Magnetic |
| Cushion Type | Fixed Cushion |
| Bore Diameter | <25 mm> |
| Stroke | <250MM> → <250mm> |
